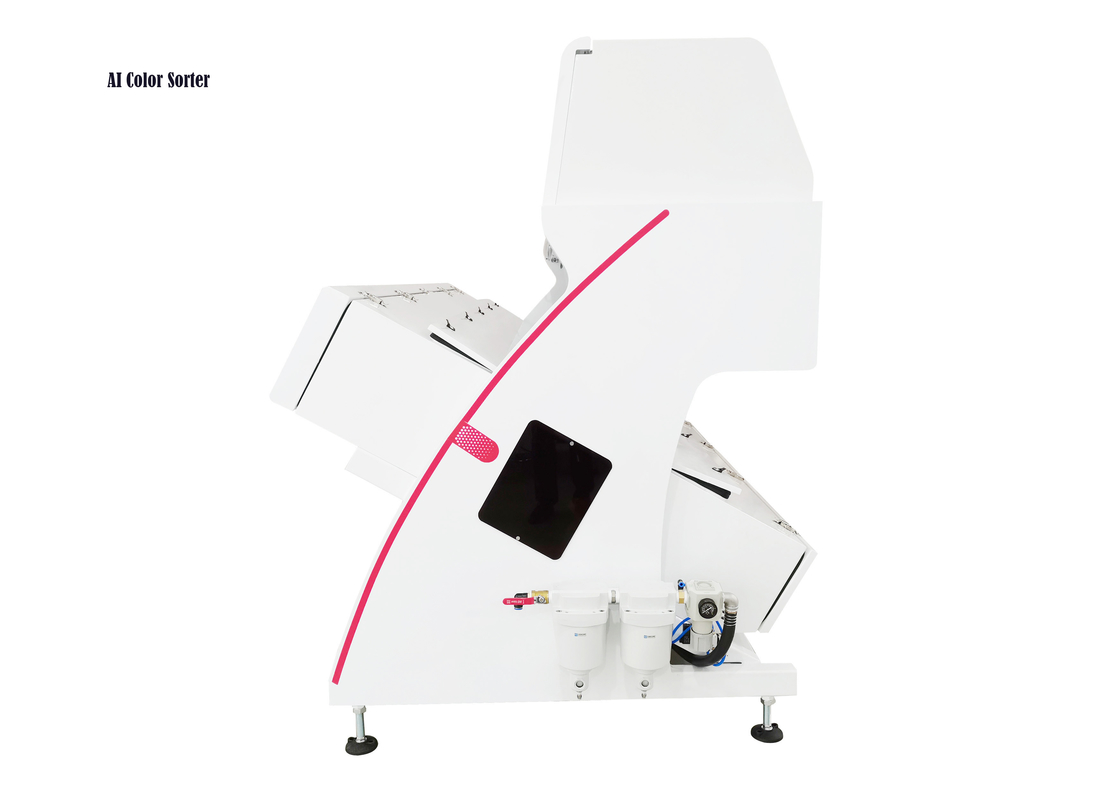

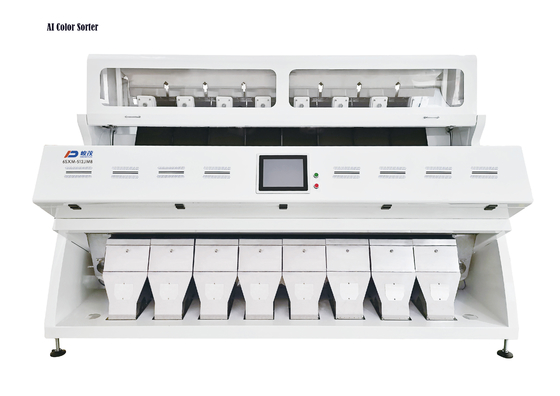

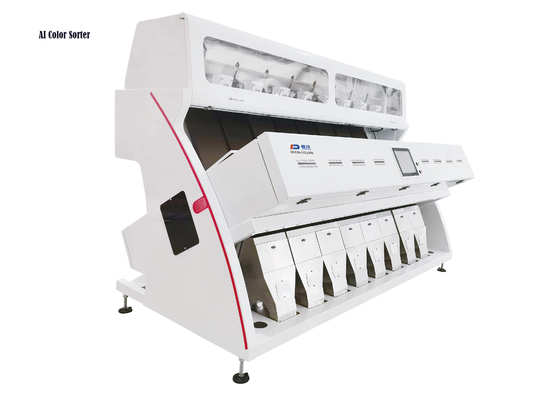

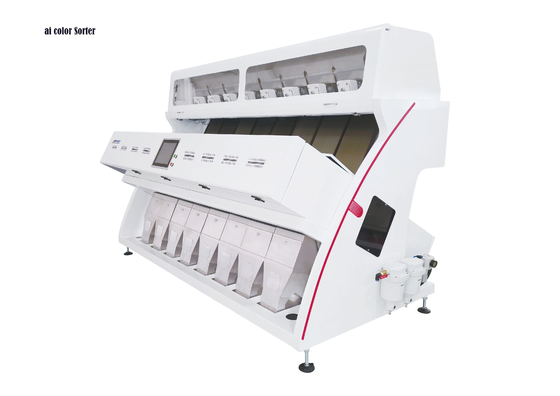

AI CCD Color Sorter Machine 512 Channel 8 Chute

AI CCD Color Sorter Machine 512 Channel 8 Chute

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM8

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-512JM1 Channel: 512
Chute: 8 Primary Sorting:Re-sorting: 5:3
Capacity(t/h): 6-8 Carryover(bad:good): 15:1
Voltage(v/hz): 220/50 Dimension(mm): 3152*1620*2040
Warranty: 1 Year Weight(kg): 1800
High Light:

AI CCD Color Sorter Machine

,

512 Channel AI Color Sorter

,

CCD Color Sorter Machine 8 Chute

Product Description

CCD Color Sorter,AI Color Sorter



For this kind of color sorter, which is designed for small rice processing plants, planting cooperatives, grain processing plants, ore and plastics industry, medicinal materials industry, provide color options.

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The JM model is our bestseller in the past years.

When unqualified materials or impurities in the materials are found, the ejector will blow the defective goods in the hopper.



What kind of materials can our color sorter select:

Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, etc.

Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, etc.


Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.

Main features:



1. Excellent sorting persormance: Advanced image acquisition system + intelligent

image processing algorithm + high quality ejection system=excellent output and

rejection



2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5340 pixel

CCD high speed linear scan imaging sensor also first-class tailored camera lens for color

sorting with a precision identifying tiny defects till 0.01m2



3. Super ease operation system: Simple optical system design and accurate in time auto

calibration system plus simplified GUI design help reduce complicacies of machine

commissioning and running, easy operation and maintenance secured.



4. Customized image processing algorithm: Intelligence algorithm integrating image

color difference and defect size difference;



5. Long-life software upgrading for free.



6. OEM service welcomed.


Technical Parameter
Model 6SXM-512JM8
Output(T/h) 6~8
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤4.6
Pressure(Mpa) 0.5-0.8
Weight(Kg) 1800(±5%)
Diamension(mm) 3152*1620*2040



Sorting Image

AI CCD Color Sorter Machine 512 Channel 8 Chute 0
