• 5 Chute CCD Color Sorter Machine Multi Purpose
5 Chute CCD Color Sorter Machine Multi Purpose

5 Chute CCD Color Sorter Machine Multi Purpose

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: ISO9001,SGS, CE
Model Number: JM5

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Fumigated Wood Package
Delivery Time: 20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-320JM10 Capacity: 4.5-6t/h
Chute: 5 Power: <3.5KW
Type: CCD Color Sorter Machine Voltage: AC 220V/50Hz
Warranty: 1 Year
High Light:

5 Chute CCD Color Sorter Machine


CCD Color Sorter Machine Multi Purpose


High Reliability Color Sorter Machine

Product Description

Multi Purpose Color Sorter


Multi-Purpose  Color Sorter Machine


What is a CCD Color Sorter?

CCD Color Sorter machines are among the newest technology in rice, grain, ore and plastic processing. The ccd color sorter machine separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.

The ccd color sorter machine can sort rice , grain and plastic according to different colors , and remove other impurities such as stones, ceramics, and so on.



Multi Purpose Color Sorter
CCD Color Sorter Machine Technical Parameter
Model 6SXM-320JM10
Channel 320
Capacity(t/h) 4.5-6
Carryover Rate(bad:good) >20:1
Sorting Accuracy(%) ≥99.99
Voltage (v/hz) 220/50
Power Supply(kw) ≤3.5
Air Consumption(m3/min) <5.0
Pressure(Mpa) 0.6-0.8
Weight(kg) 1350(±5%)
Diamension(mm) 2250*1570*1850



CCD Color Sorter Machine Technical Features


1. High reliability Our rice color sorter is equipped with cooling system for longer service life and higher stability. Reliable mechanical structure design, simple and effective electrical and optical system, and optimized system structure greatly improve the reliability of the machine.


2. Advanced image acquisition and processing system Our rice colour sorter uses high speed linear array CCD image sensor (5400 pixels) and high accuracy lens to realize image acquisition, which can detect 0.0025mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.


3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.


4. High quality ejector. Our rice color sorter employs imported ejector for accurate, effective material rejection and long service life.


5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.


6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease of operation.


7. High flexibility, wide range of application Our color sorter is suitable for color sorting of different rice. Various optimal working modes are available for different rice.

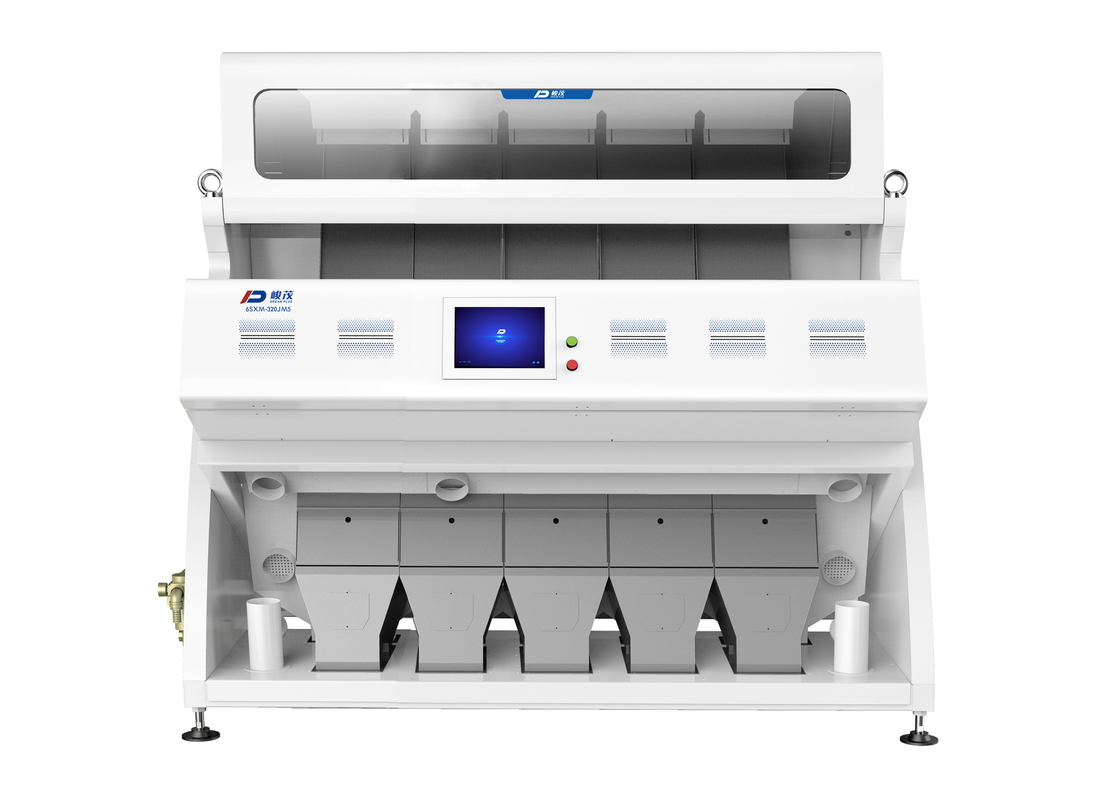

CCD Color Sorter Machine Photos

5 Chute CCD Color Sorter Machine Multi Purpose 0

After Sales Services:

• With presence in a variety of countries, Dream Plus is strongly committed to being close to the customer.

• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Dream Plus managed to provide fast, competent and rooted services in the context of customers.

• Application center in Hefei production base offer demo machines for tests and comparison.

• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.

• Under normal working circumstances, Dream Plus machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.

• Service line is available for emergency support.

• Dream Plus products will be serviced and supported wherever customers are located.

• Through the global Dream Plus network and from Dream Plus technical experts, training on Dream Plus machines is available worldwide.
