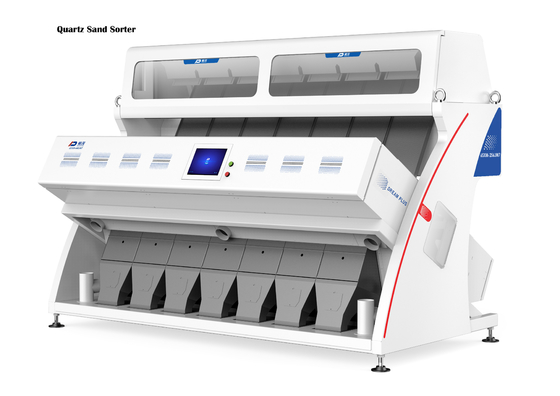

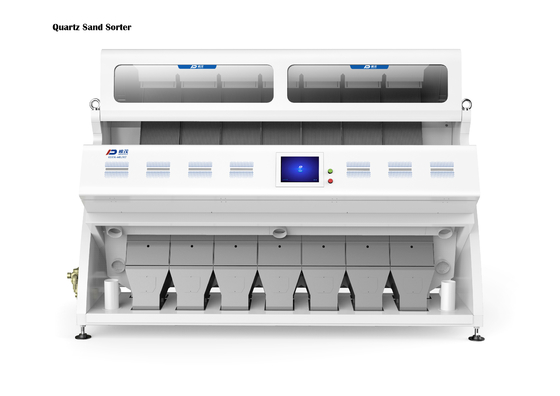

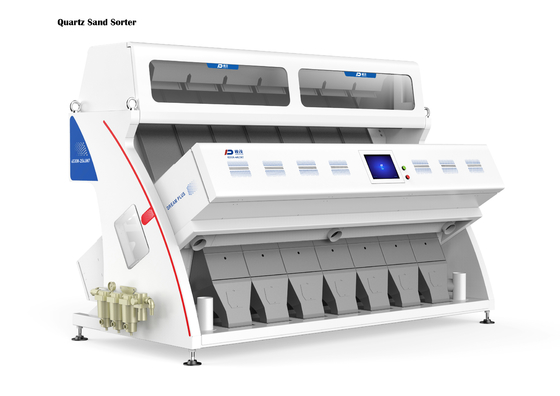

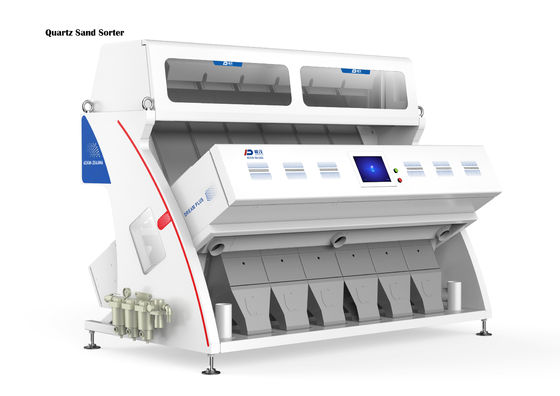

High Definition Quartz Stone Color Sorting Machine 448 Channel

High Definition Quartz Stone Color Sorting Machine 448 Channel

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: 6SXM-448JM7

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood Packaging
Delivery Time: 7-15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-448JM7 Channel: 448
Voltage(V): AC220V/50Hz Power(Kw): ≤4.0
Weight(Kg): 1620(±5%) Dimension(L*W*H Mm): 2650×1630×2030
Warranty: 1 Year
High Light:

Quartz Stone Color Sorting Machine

,

448 Channel Ore Color Sorter

,

448 Channel Quartz Sorting Machine

Product Description

high definition quartz stone color sorting machine
Ore color separating machine is widely used for ore producer to classify and purify ore stone, mineral slag, quartz chip or sand, remove black or other impurity throught color difference. It is designed for ore manufacturer with high production capacity. Color sorting machine is also used to grade ore stone, such as calcium carbonate,fluorite,potash feldspar,albite granules and etc,(size range 5cm-120mesh) for it is installed colorful CCD camera with high definition and accuracy.


Ore color separating machine result:
High Definition Quartz Stone Color Sorting Machine 448 Channel 0

Working principle of ore stone mineral color sorter:

Ore stone mineral color separator can separate bad material of quartz sand and other ore by slightly color difference, color sorter machine can also used to classify materials, remove impurity, recently shape sorting is also used for ore classification.
High speed CCD camera scans objects that fall from vibrating chutes, ejectors will blow away the material with different color through compressed air, optimized algorithm is the core technology of color sorter machine, our machine can also reject material by only the photo, it is so efficient for changeover.

High Definition Quartz Stone Color Sorting Machine 448 Channel 1



Technical Parameter

Model6SXM-448JM7
Output(T/h)3.0~4.0
Carryover Rate(Bad:Good)>12.5:1
Sorting Accuracy(%)≥99.99
Voltage (V/Hz)220V 50HZ
Power Supply(Kw)≤4.0
Pressure(Mpa)0.4-0.6
Weight(Kg)1620(±5%)
Diamension(mm)2980*1630*2030


Sorting Material
High Definition Quartz Stone Color Sorting Machine 448 Channel 2


Core advantage
1. 10K Nikon CCD camera with high definition, sorting accuracy up to 0.01mm², customized lens to achieve clear image without distortion
2. USA chip, ARM+ FPGA, powerful hardware with intelligent algorithm.
3. Durable LED system satisfy requirements of different color identification,separation and classification.
4. Synchronization system makes the adjustment work into ONE BUTTON OPERATION, rejection by photo is available.
5. Ejectors longer has longer lifetime, lower air consumption, faster speed, easier maintenance and high sorting accuracy.
6. Wider chute up to 332mm makes increase production capacity.
7. Self-checking system makes the machine can check the ejectors, cameras, control boards and background boards automatically.
8. No wearing parts(except mine stone color sorter) makes 0 maintenance cost.
