Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: 6SXM-640JM10

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood Packaging
Delivery Time: 7-15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-640JM10 Channel: 640
Voltage(V): AC220V/50Hz Power(Kw): ≤5.5
Weight(Kg): 2020(±5%) Dimension(L*W*H Mm): 3900×1630×2030
High Light:

Ore Automatic Colour Sorting Machine

,

DREAM PLUS Automatic Colour Sorting Machine

,

5.5kw Ore Sorting Machine

Product Description

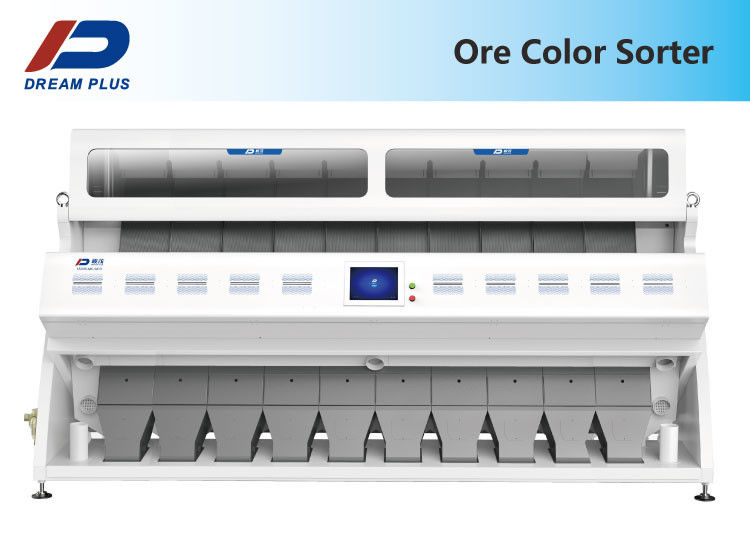

Fully Automatic Ore Color Sorter with Large Selection Range and High Quality


Product Overview

Dreamplus Ore Color Sorter, as an intelligent machine, can separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest. .According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Dreamplus Ore Color Sorter always provides customers withintelligent,professional and comprehensive sorting solutions.




Features
1. Digital stepless dimming, automatically matching brightness according to material change.
2. Automatic acquisition of temperature, humidity, air pressure,differential pressure and other related working environment,parameters to achieve monitoring and early warning.
3. Flexible and variable light source equipped with LED system with heat dissipation, long life, low energy consumption and good performance. Different raw materials require different spectral lighting, and tailor the light source according to the needs of customers.

4. The special image processing algorithm uses shape and color combination algorithm according to material characteristics. For complex color materials, the color space after HSV transformation is more intuitive and precise.

5. Simple operation, easy to learn and use, simple optical system design, precise automatic correction system, combined with carefully designed man-machine interface, greatly simplifies the complexity of machine debugging and use, ensures simple operation, and makes the machine easy to learn and use.

6. High-quality solenoid valves use high-quality solenoid valves, high frequency, long service life, very low gas consumption, to ensure that the machine output is large, take-out ratio is low, failure rate is low, low energy consumption.



Technical Parameter

Model 6SXM-640JM10
Output(T/h) 5.0~6.0
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤5.5
Pressure(Mpa) 0.4-0.6
Weight(Kg) 2020(±5%)
Diamension(mm) 3900*1630*2030


Sorting Material

Ore Automatic Colour Sorting Machine With Large Selection Range 0

Our services

1. Before Sale

We will provide detailed solutions for your special requirement and help you know more about our color sorter.

2. After Sale Service
7*24 hours
24 hours door to door fast response,7*24hour on-line service.

●​ On-time arrival
Arrive the customer site on the appointed time.

●​ Comprehensive maintenance
Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.

●​ Professional training
Supply fully description of operation and maintenance of color sorter to help you understand the routine maintenance and simple troubles hooting.

●​ Site cleaning
Clean up machine and service area after trouble shooting.

●​ Strict acceptance
Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.
