• Professional Stone Color Sorter With Human Computer Interaction
Professional Stone Color Sorter With Human Computer Interaction

Professional Stone Color Sorter With Human Computer Interaction

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: 6SXM-64J1

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood Packaging
Delivery Time: 7-15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-64J1 Channel: 64
Voltage(V): AC220V/50Hz Power(Kw): ≤1.5
Weight(Kg): 350(±5%) Dimension(L*W*H Mm): 955×1630×1550
High Light:

1.5kw Stone Color Sorter

,

50Hz Stone Color Sorter

,

DREAM PLUS industrial color sorter

Product Description

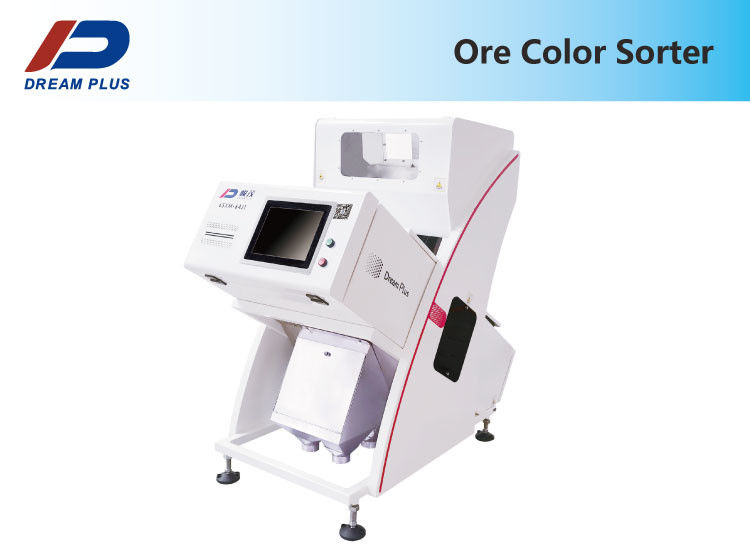

Professional Stone Color Sorter Machine Ore Color Sorting Machine For Sale


Product Overview

Dreamplus Ore Color Sorter, as an intelligent machine, can separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest. .According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber. Dreamplus ore color sorter always provides customers withintelligent,professional and comprehensive sorting solutions.
Professional Stone Color Sorter With Human Computer Interaction 0



Features
Micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency solenoid valve
High frequency low consumption valve, flexible contact,wear-resistant super alloy material, life-long matching use.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,differential pressure and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industrycan beupgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30%compared with other competitors.



Technical Parameter

Model 6SXM-64J1
Output(T/h) 0.3~0.5
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤1.5
Pressure(Mpa) 0.4-0.6
Weight(Kg) 350(±5%)
Diamension(mm) 955*1630*1550


Sorting Material



Professional Stone Color Sorter With Human Computer Interaction 1
Our Service
1. Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.


2. After Sale Service
7*24 hours
24 hours door to door fast response,7*24hour on-line service.

●​ On-time arrival
Arrive the customer site on the appointed time.

●​ Comprehensive maintenance
Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.

●​ Professional training
Supply fully description of operation and maintenance of color sorter to help you understand the routine maintenance and simple troubles hooting.

●​ Site cleaning
Clean up machine and service area after trouble shooting.

●​ Strict acceptance
Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.
