High Definition Belt Color Sorter With Ccd Camera Image Acquisition System

High Definition Belt Color Sorter With Ccd Camera Image Acquisition System

Product Details:

Place of Origin: Hefei,China
Brand Name: Dream Plus
Certification: CE
Model Number: Belt Color Sorter

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD
Packaging Details: wooden package
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C
Supply Ability: 100
Get Best Price Contact Now

Detail Information

Model: DPLDS600 Ejector: 128
Sorting Accuracy(%): 99 Belt Width(mm): 6
Frame Material: 304 Stainless Steel Power(kw): 3.5
Dimension(mm): 3098*1130*1660 Warranty: 1 Year
Color: White
High Light:

99% Accuracy Belt Color Sorter

,

Ccd Camera Belt Color Sorter

,

High Definition Belt Color Sorter

Product Description

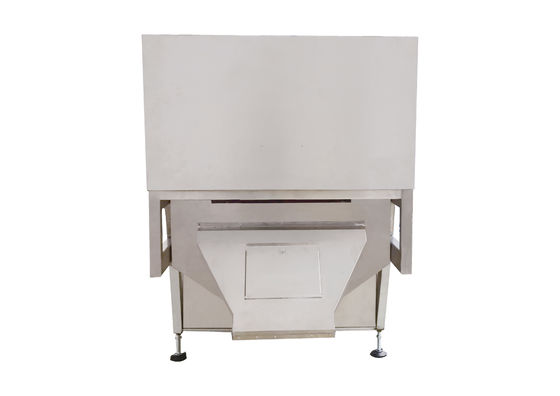

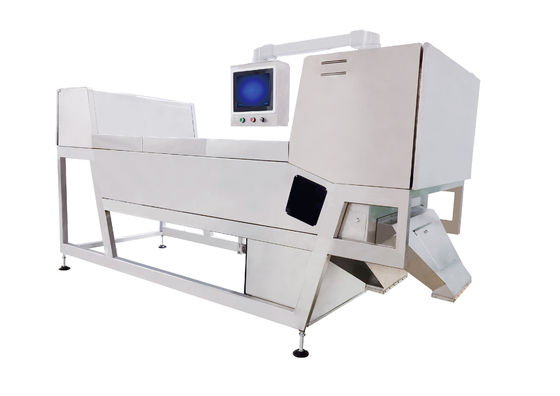

High Definition Belt Color Sorter With Ccd Camera Image Acquisition System

High Definition Belt Color Sorter With Ccd Camera Image Acquisition System

Belt Color Sorter TECHNICAL CHARACTERISTICS
Color Image Acquisition System

Using High-Definition Color Ccd Camera Image Acquisition System, To Achieve Material (Rgb) Red, Green And Blue Three Color Information Acquiting, Depth Recognition Tiny Fine Color Sorter Can Choose Other Impurities.



Cloud Object Link System

Autonomous Cloud Control, Cloud Computing Technology, The Realization Of Online Operations, Online Monitoring, Online Services, Free Upgrades.



Image Processing System

Applying The Intenational Advanced Full Color Scanning Technology, Dsp+Fpga Processing Technology, As Well As Complex Algorithm Of Multiple Modes Combined With Color And Space, This System Can Provide The Function Of Color& Shape-Based Sorting Depending On The Difference Of Materials.



Chi Moving Magnetic Control Hign Frequency Electromagnetic Value

Applying The Intemational Advanced 2048 Full Color Scanning Technology. Dsp+Fpga Processing Technology, As Well As Complex Algorithm Of Multiple Modes Combined With Color And Space, This System Can Provide The Function Of Color& Shape-Based Sorting Depending On The Difference Of Materials, And Allow You To Set Muliple Modes Freely And Select Any Material From Tens Of Thousands Of Ones At Your Option.



Operating System

With Inteligent Operating Platform,The System Can Be Mastered And Operated Easily,Turming The Inteligent Communication Between Human And Machine Into Reality And Eliminating All Your Concems About Operating.



Intelligent Wind Curtain Function Design

Through The Fan Blowing System,High-Speed Airftlow Will In Front Of The Lens Glass Dust,Ethereal And Rapid Clearance,To Ensure Resolution And Color Sorting Accuracy.



Unique Air-Suction And Ventilation System

The Utilization Of The Air-Suction And Ventilation System Can Help To Clear Away The Floats In The Material,Ensuring A Higher Resolution Of Lens And A More Accurate Color-Based Sorting Rate.



Double Layer Separation Mode

According To The Different Needs Of Customers Can Be Set Flexibly Realize The Sorting Can Lower Again To Check,No Need To Replace The Function Of The Hopper.



Powelful Color Sorting Function

Belt-Type Color Sorters Can Not Only Meet The Color Sorting Range Of Chute Color Sorters,It Can Also Provide Satisfactory Color Soting Alternatives For Ethereal,Iregular,Easily Broken,Highly-Moist Materials,Which Can Effectively Solve The Unsatisfactory Color Sorting Effects Due To Small Gravity Speed Caused By Light Weight Of These Special Materials,The Conveyance Speed Of Bell-Type Color Sorter Can Be Up To 4m/S,Which Can Effectively Meet The Requiements For Color Sorting And Yield.

The Crushing Rate Of Easly Broken Materials Can Be Minimized;Easy Color Sorting Solution Can Be Avoilable For Materials With High Moisture;Perfect Color Sorting Solution Can Also Be Available For Easily Bonded Mateials.

5088 Full Color Line Scan Technology,Algorithms Combining Colors And Spaces Can Provide"Color Sorting+Shape Sorting"For Different Materials,A Vaieties Of Modes Can Be Set Freely.

It Is Applicable To Many Materials.

Technical Parameter

Model DPLDS600
Output(T/h) 0.9~1.5
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤3.5kw
Pressure(Mpa) 0.4-0.6
Weight(Kg) 650(±5%)
Diamension(mm) 3098*1130*1660


Sorting Material
High Definition Belt Color Sorter With Ccd Camera Image Acquisition System 0

BENEFITS OF OUR CASHEW SORTING MACHINES

  • Easy to Use Intuitive Touch Screen

  • High Volume Processing

  • Higher Yields

  • Reduced Labor Requirements

  • Increased Throughput

  • Consistent High-Quality

  • Fewer Complaints from Customers

  • Increased Peace of Mind

  • Better Utilization of Resources
