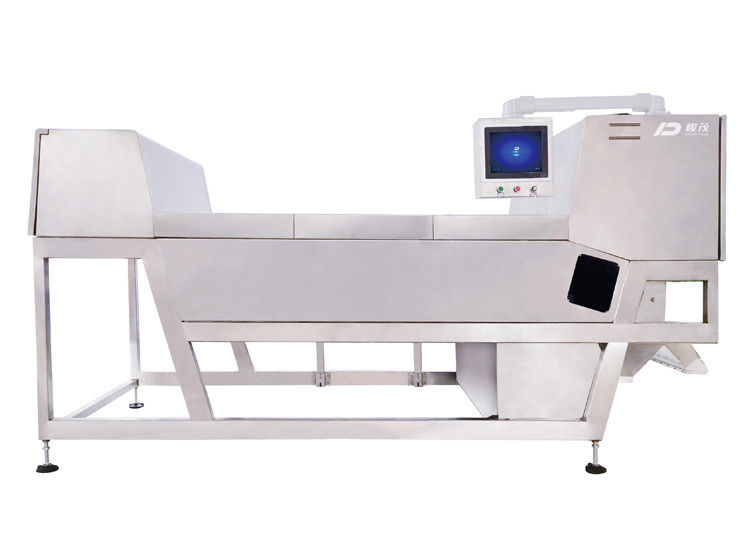

Dried Shimp Water-proof Color Sorter,304 Snless Steel Belt Sorter
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | DPLDS600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood Packaging |
| Delivery Time: | 7-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Name: | Shrimp Color Sorter Machine | Frame Material: | 340 Stainless Steel |
|---|---|---|---|
| Water-proof: | Yes | Ejector: | 128 |
| Belt Width(mm): | 600 | ||
| Highlight: | 5G Architecture Belt Colour Sorter Machine,Belt Colour Sorter Machine High Speed,SGS Belt Colour Sorter Machine |
||
Product Description
Seafood Color Sorter Features:
-
Customized image algorithm
Advanced image algorithm, which can customize specific algorithm according to different sorting materials: color sorting and shape sorting available.
-
Full color CCD cameras
Angelon vision system converts the captured targets into image signals through CCD cameras, and then transmits the signals to a dedicated image processing system.
The 5400*∞ pixels grade high resolution CCD color cameras with sharpness up to 0.01mm2 can identify subtle color differences and defects successfully.
-
Lower damage ratio by Belt-type structure design
Horizontal transporting by uniform and stable conveyor makes less collision for the materials. So that its damage ratio is much lower than that of traditional chute-type color sorter.
-
Intelligent real-time display of actual material image
Real-time checking the targets marking situation is available on the 12-inch LED computer screen through the real-time display system of actual material image, which is easy for engineers to adjust sorting parameters both on site and by remote.
-
Long life and full color LED light source
With uniform color, high brightness, and long life when using the white LED light source in our full colored color sorters.
-
Remote interconnection system
Remotely diagnoses each color sorter and assist with equipment o
Technical Parameter
| Model | DPLDS600 |
| Output(T/h) | 0.5~1.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤3.5 |
| Pressure(Mpa) | 0.4-0.6 |
| Weight(Kg) | 650(±5%) |
| Diamension(mm) | 3098*1130*1660 |
