• Mini Rice Corn Color Sorter Portable 99.9% Accuracy
Mini Rice Corn Color Sorter Portable 99.9% Accuracy

Mini Rice Corn Color Sorter Portable 99.9% Accuracy

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: 6SXM-160JM2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $12,300
Packaging Details: Wooden Packaging
Delivery Time: 7-15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Capacity: 500-1000 Kg Accuracy: 99.9%
Power: 1.8 Kw Voltage: AC220V, 50Hz
Weight: 600 Kg Dimension: 1330*1630*1550 Mm
High Light:

Mini Corn Color Sorter

,

Corn Color Sorter Portable

,

99.9% Accuracy Corn Color Sorter

Product Description

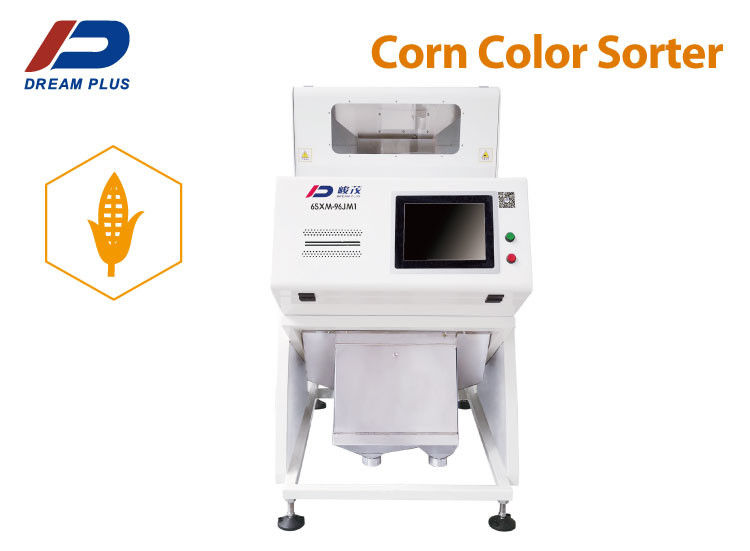

Mini Rice Corn Color Sorter Portable Rice Grader Machine

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Product Parameters

Model Capacity(T/h) Power(Kw) Voltage Weight(Kgs) Dimension(mm)
6SXM-64J1 0.3-0.5 1.5 AC220V/50Hz 350 955*1630*1550
6SXM-80J1 0.3-0.6 1.65 AC220V/50Hz 500 1045*1630*1550
6SXM-96JM1 0.4-0.8 1.7 AC220V/50Hz 500 1045*1630*1550
6SXM-160JM2 0.5-1.0 1.8 AC220V/50Hz 600 1330*1630*1550
6SXM-192JM3 0.6-1.2 2.0 AC220V/50Hz 900 1530*1620*2040
6SXM-256JM4 0.8-1.5 2.6 AC220V/50Hz 1200 1800*1620*2040
6SXM-320JM5 1.0-2.0 3.0 AC220V/50Hz 1350 2190*1620*2040
6SXM-384JM6 2.0-3.0 3.6 AC220V/50Hz 1500 2528*1620*2040
6SXM-448JM7 3.0-4.0 4.0 AC220V/50Hz 1750 2765*1620*2040
6SXM-512JM8 4.0-5.0 4.6 AC220V/50Hz 1800 3152*1620*2040
6SXM-640JM10 5.0-6.0 5.5 AC220V/50Hz 2200 3910*1620*2040































Sorting Material

Mini Rice Corn Color Sorter Portable 99.9% Accuracy 0



Mini Rice Corn Color Sorter Portable 99.9% Accuracy 1

Mini Rice Corn Color Sorter Portable 99.9% Accuracy 2





Features

Micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency solenoid valve
High frequency low consumption valve, flexible contact,wear-resistant super alloy material, life-long matching use.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,differential pressure and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industrycan beupgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30%compared with other competitors.




Machine Working at Site

Mini Rice Corn Color Sorter Portable 99.9% Accuracy 3  Mini Rice Corn Color Sorter Portable 99.9% Accuracy 4



Dream Plus

Mini Rice Corn Color Sorter Portable 99.9% Accuracy 5 Mini Rice Corn Color Sorter Portable 99.9% Accuracy 6



Mini Rice Corn Color Sorter Portable 99.9% Accuracy 7 Mini Rice Corn Color Sorter Portable 99.9% Accuracy 8
