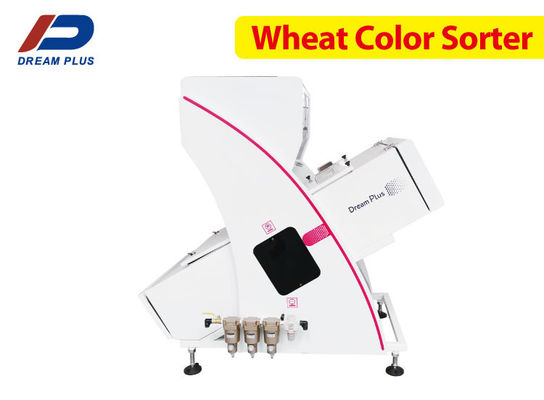

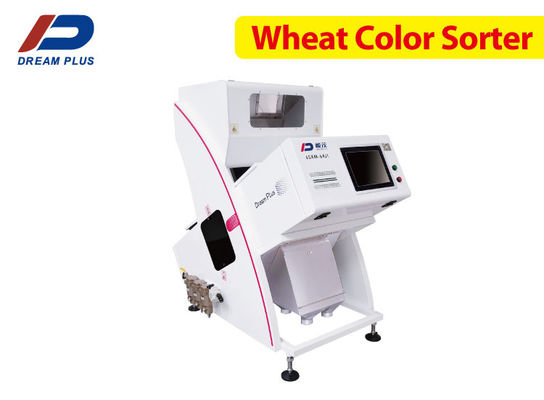

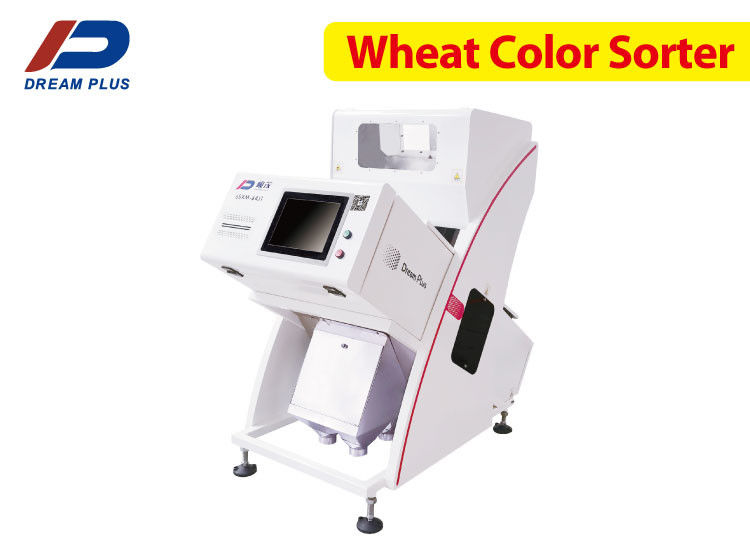

• 1 Chute Wheat Color Sorter LED Lighting System With Thermal Dissipation
  • 1 Chute Wheat Color Sorter LED Lighting System With Thermal Dissipation
  • 1 Chute Wheat Color Sorter LED Lighting System With Thermal Dissipation
1 Chute Wheat Color Sorter LED Lighting System With Thermal Dissipation

1 Chute Wheat Color Sorter LED Lighting System With Thermal Dissipation

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM1

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-64J1 Chutes: 1
Channel: 64 Capacity(t/h): 0.9-1.5
Voltage(v/hz): 220/50 Power(kg): ≤1.5
High Light:

1 Chute Wheat Color Sorter

,

Wheat Color Sorter LED Lighting System

,

LED Lighting Wheat Color Sorter

Product Description


Dream Plus is a leading global supplier of optical sorting solutions to the food and non-food processing industries and has been at the forefront of optical sorting technology . This success stems from our continuous research, substantial investment in product development and our working partnerships with seed processors. Equipped with the latest in sorting technologies including detection, ejection and processing software, our optical sorting range are able to meet the highest capacities, yield and customer requirement –removing even the most challenging seed defects and foreign materials.


Technical Parameter
Model 6SXM-64J1
Output(T/h) 0.9~1.5
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤1.5
Pressure(Mpa) 0.5-0.8
Weight(Kg) 350(±5%)
Diamension(mm) 955*1630*1550


Sorting Material

1 Chute Wheat Color Sorter LED Lighting System With Thermal Dissipation 0
Technical Features


1. High reliability Our rice color sorter is equipped with cooling system for longer service life and higher stability. Reliable mechanical structure design, simple and effective electrical and optical system, and optimized system structure greatly improve the reliability of the machine.
2. Advanced image acquisition and processing system Our rice colour sorter uses high speed linear array CCD image sensor (5400 pixels) and high accuracy lens to realize image acquisition, which can detect 0.0025mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.
3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.
4. High quality ejector.Our rice color sorter employs imported ejector for accurate, effective material rejection and long service life.
5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.
6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease of operation.
