Large Capacity 3 Chute Buckwheat Color Sorter 99.9% Accuracy
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-192JM3 | Sorting Accuracy: | 99.9% |
|---|---|---|---|
| Chutes: | 3 | Primary Sorting:secondary Sorting: | 2:1 |
| Channel: | 192 | Capacity(t/h): | 0.6-1.2 |
| Carry Over Rate(bad:good): | 15:1 | Weight(kg): | 900 |
| Dimmension(mm): | 1530*1620*2040 | Warranty: | 1 Year |
| Highlight: | 99.9% Accuracy Color Sorter,Buckwheat Color Sorter,Wheat Color Sorter 3 Chute |
||
Product Description

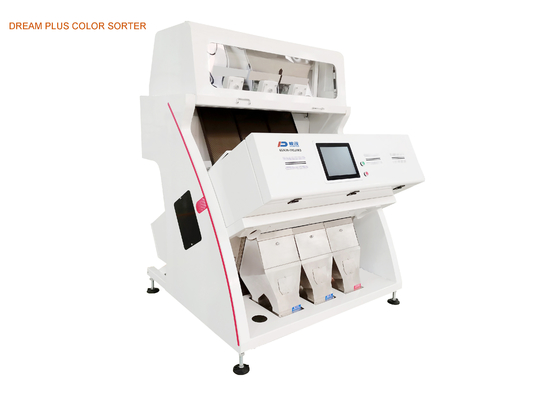

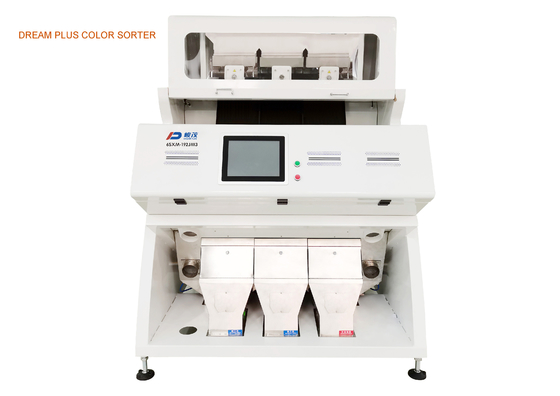

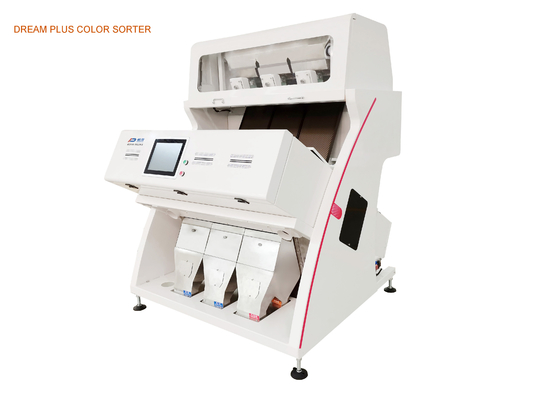

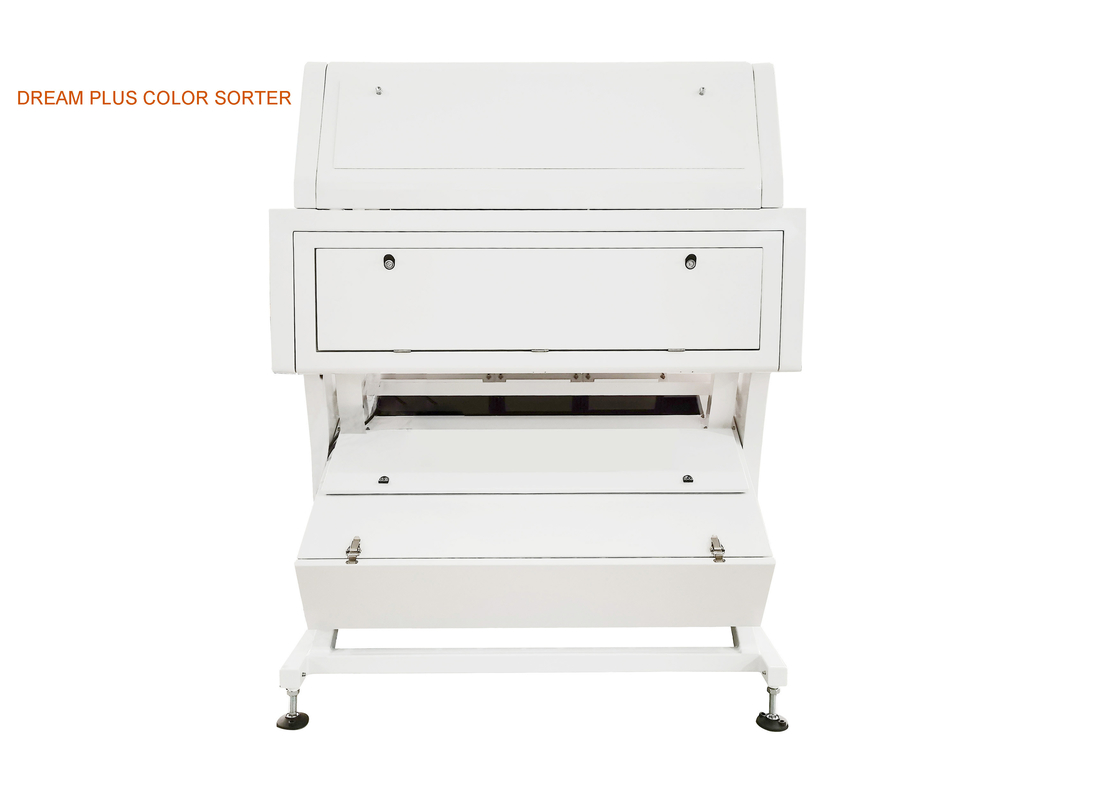

3 Chute Buckwheat Color Sorter
Buckwheat Color Sorter,3 Chutes,Large Capacity,5400 Pixels CCD
Buckwheat (Fagopyrum esculentum), or common buckwheat, is a plant cultivated for its grain-like seeds and as a cover crop.
The main disadavnatage of buckwheat production is its grain that are very fragile. The production companies have to reduce the mechanical impact while gathering crops and cleaning it.
Moreover buckwheat can be highly contaminated by various impurities. The most common contaminants are mineral impurities sand, ore particles, slag, stones, soil), Tatary buckwheat, wild oats, stems, dead pests of grain stocks, wheat, rye, barley, oats, spoiled grains, moldy and burnt grains, fractured kernels.
Primary sorting is usually done by precleaning seperator (bur extractor) and pneumatic cleaner with sieves. This primary cleaning reduces light and heavy contaminants, and contaminants that differ in size.
Though primary cleaning can not reduce spoiled, moldy and unhulled grains, as well as Tatary buckwheat, wild oats and etc. These contaminants can be easily removed by a color sorting machine.
Technical Parameter
| Model | 6SXM-192JM3 |
| Output(T/h) | 0.6-1.2 |
| Carryover Rate(Bad:Good) | >10:1 |
| Sorting Accuracy(%) | ≥99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤2.0 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 900(±5%) |
| Diamension(mm) | 1530*1620*2040 |
Sorting Material
Features of Optical Sorting Machine
1,Advanced image acquisition system
Use the high resolution CCD camera with high quality industrial lens to achieve clear and accurate image acquisition .The camera could capture the micro defects of material instantly.
2,High reliability
Use high signal-to-noise ratio sensor and anti-interference circuit system,which could highly improve stability and reliability.
3,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.
4,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.
5,High quality solenoid valve(ejector)
Equipped with high quality solenoid valve.The valve has longer lifespan ,high frequency ,and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.
For the different sizes and characteristics of material particle, the optical sorters use the solenoid valve of different sizes.
6,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime and perfect performance.
7,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use.Our machine is intelligent so it can learn by itself.Our machine can take a photo of the material and then the machine could set the parameters by itself.
