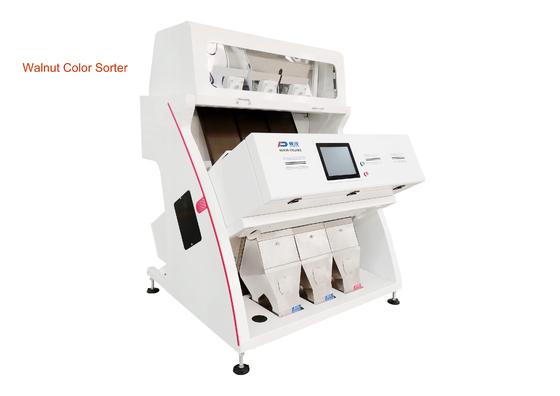

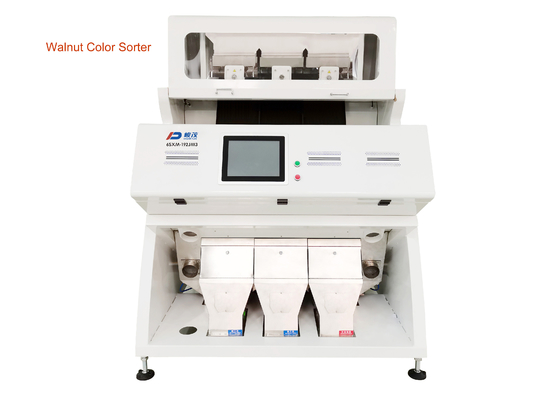

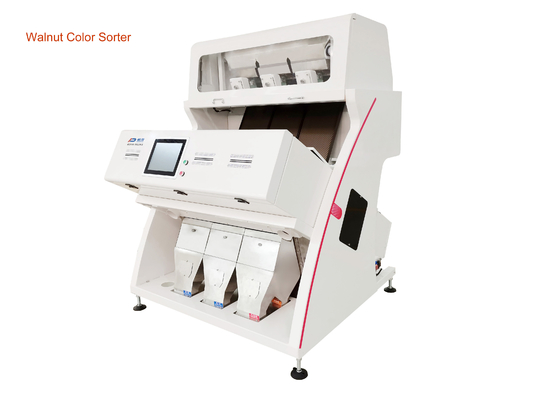

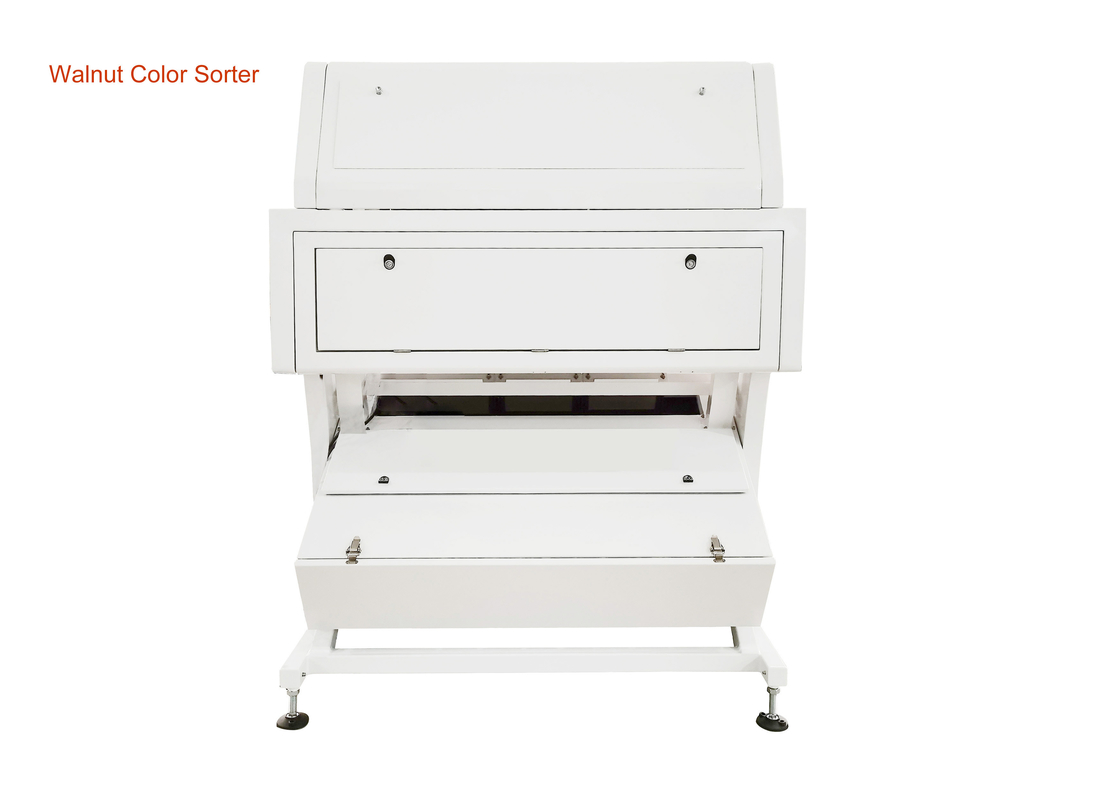

Multifunction Near Infrared Walnut Color Sorter 192 Channel 1t/H

Multifunction Near Infrared Walnut Color Sorter 192 Channel 1t/H

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM3

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 15-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-192JM3 Chutes: 3
Capacity(t/h): 1 Channel: 192
Sorting Accuracy: 99% Carry Over Rate(bad:good): 15:1
Weight(kg): 900 Warranty: 1 Year
Dimmension(mm): 1530*1620*2040 Certificate: CE
High Light:

192 Channel Walnut Color Sorter

,

Near Infrared Walnut Sorter

,

192 Channel Walnut Sorting Machine

Product Description

Walnut Color Sorter/Walnut Near Infrared Sorter

Multifunction Color Sorter Machine for Walnuts, Almond, Pistachio Separation

*Nuts Defects Sorting through High Resolution 5400Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*Nuts Colour Sorting With Expert Sorting Solution Realizes One Key Debugging
*Grotech Color Sorter Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations

Innovative and Modular Camera System

Our camera system enables ease of service and future upgrades. Each stainless-steel camera box is a complete color sorter. If necessary, three easy and accessible quick connect fittings and six thumb screws allows our customers or our field technicians to remove and replace a single box in five minutes all while the remaining cameras continue to sort. We have an optional nut diverter to move product to adjacent cameras while a change is made.
Unique to huller walnut sorters, our proven design incorporates two precision adjustable air ejection systems that simultaneously sorts dark nuts and green nuts into their designated chutes, all in the space of twelve inches and one pass.
Cameras are positioned forward and well above the ejection area thus remaining clean for optimal imaging. Each camera view area overlaps such that you have contiguous coverage across the width of the belt. Each camera process five tons per hour on early harvest (heavy greens/darks). Mid-season harvest (low ejects) product can be processed at seven tons an hour with higher belt loading.

Simple, Clear Controls

The operator controls are simple to use and understand. Near infinitely adjustable color slide bar features are:
Dark, Dark Percent, Green and Dark + Green.

  • Dual and Single Sort—Good when only dark nuts to eject.
  • Separate Operator and Supervisor Control Screens—Camera communication indicators. Ten stored customizable sort settings programs for quick and easy variety switch or lot changes.
  • Object Analysis Tool—You see what the computer sees. This helps you refine sort values to rerun difficult to sort stick tights, dark nuts that are good, husk fly damage with green and black husk or in extreme situations – mud.
  • No Waste or Fail-safe Sorting Feature—an adjustable chute divider closes the dark chute; all ejects are recycled through the green chute to return to the huller giving you options over good product with bad color conditions.



Technical Parameter

Model 6SXM-192JM3
Output(T/h) 1
Carryover Rate(Bad:Good) >15:1
Sorting Accuracy(%) ≥99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤2.0
Pressure(Mpa) 0.5-0.8
Weight(Kg) 900(±5%)
Diamension(mm) 1530*1620*2040


Sorting Material
