96 Channels Coffee Bean Color Sorter Mini With High Sorting Accuracy

96 Channels Coffee Bean Color Sorter Mini With High Sorting Accuracy

Product Details:

Place of Origin: Anhui, China
Brand Name: DREAM PLUS
Certification: CE, ISO9001
Model Number: 6SXM-96JM1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wood Packaging
Delivery Time: 7-15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets per Month
Get Best Price Contact Now

Detail Information

Product Type: Beans Color Sorter Sorting Accuracy(%): ≥99.99%
Camera Sensor: TOSHIBA Channels: 96
Warranty: 12 Months Application: All Kinds Of Beans Can Be Sorting
High Light:

96 Channels Coffee Bean Sorter

,

High Accuracy Coffee Bean Sorter

,

Coffee Bean Color Sorter 96 Channels

Product Description

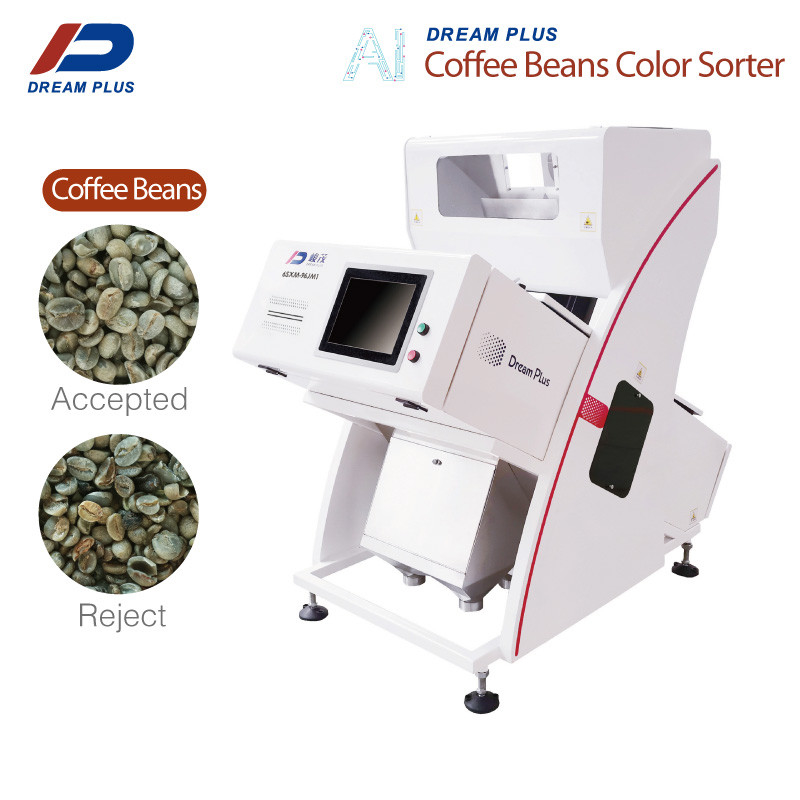

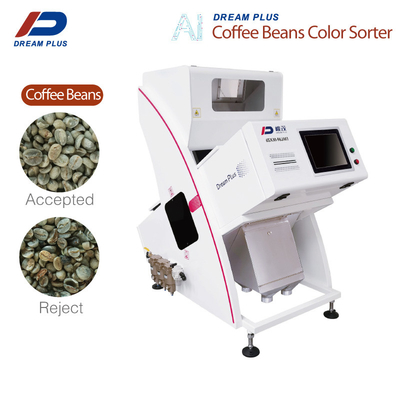

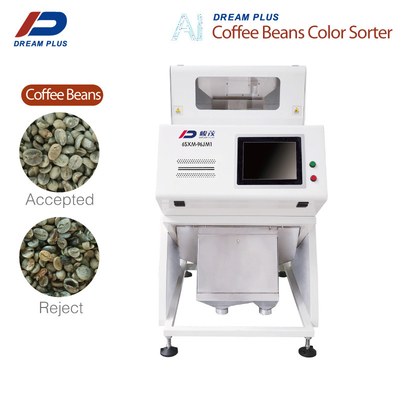

96 Channels Coffee Bean Color Sorter Mini Model With High Sorting Accuracy



Color sorter for beans, according to different types of beans, targeted optimization in hardware and software, such as different beans matching different chute, customized software algorithm for customer requirements, all customer requirements as the center to improve the product.


Bean Color Sorter Technical Parameter
Model 6SXM-96JM1
Channel 96
Capacity(t/h) 0.6-1.2
Carryover Rate(bad:good) >20:1
Sorting Accuracy(%) ≥99.99
Voltage (v/hz) 220/50
Power Supply(kw) ≤1.8
Air Consumption(m3/min) <1.5
Pressure(Mpa) 0.6-0.8
Weight(kg) 500(±5%)
Diamension(mm) 1045*1630*1550




Bean Color Sorter Technical Features
micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency ejector
High frequency low air consumption ejector, flexible contact,wear-resistant super alloy material with long service time.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,pressure differences and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industry can be upgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30% compared with other competitors.





Beans Color Sorter Sorting Solution

96 Channels Coffee Bean Color Sorter Mini With High Sorting Accuracy 0

96 Channels Coffee Bean Color Sorter Mini With High Sorting Accuracy 1




Why Dream Plus?
Dream Plus designs and manufactures sensor-based sorting machines and integrated post-harvest solutions for the food industry. We innovate the world’s most advanced analytical technology and apply it to grading, sorting, and peeling. Over 1,000 units have been installed for clients around the world to optimize capabilities and reduce waste in the processing of fruits, nuts, vegetables, potato products, grains and seeds, dried fruit, meat, and seafood, from farm to fork.

96 Channels Coffee Bean Color Sorter Mini With High Sorting Accuracy 2 96 Channels Coffee Bean Color Sorter Mini With High Sorting Accuracy 3

96 Channels Coffee Bean Color Sorter Mini With High Sorting Accuracy 4 96 Channels Coffee Bean Color Sorter Mini With High Sorting Accuracy 5



SERVICE & SUPPORT

Complete customer satisfaction with service and support provided around the world 365 days per year.



SORTING EQUIPMENT

Dream Plus Food develops the world's most advanced grading, sorting, peeling, and analytical technology. Food growers, packers, and processors around the world use Dream Plus machines to sort a variety of fresh whole products and processed food to maximize output and minimize waste.


OUR CUSTOMERS
Our sorting machines and integrated post-harvest solutions are used all over the world. Don't just take our word for it. Hear what our customers have to say and read some of their testimonials to discover how our technology is driving food safety, profitability and sustainability.



After Sales Services:

• With presence in a variety of countries, Dream Plus is strongly committed to being close to the customer.

• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Dream Plus managed to provide fast, competent and rooted services in the context of customers.

• Application center in Hefei production base offer demo machines for tests and comparison.

• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.

• Under normal working circumstances, Dream Plus machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.

• Service line is available for emergency support.

• Dream Plus products will be serviced and supported wherever customers are located.

• Through the global Dream Plus network and from Dream Plus technical experts, training on Dream Plus machines is available worldwide.
