Optical Nuts Color Sorter For Cashew Almond Peanut 384 Channels
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | DREAM PLUS |
| Certification: | CE, ISO9001，TUV |
| Model Number: | 6SXM-384JM6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood Packaging |
| Delivery Time: | 7-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 Sets per Month |
|
Detail Information |
|||
| Product Type: | Nuts Color Sorter | Capacity: | 3-5t/h |
|---|---|---|---|
| Air Pressure: | 0.6-0.8Mpa | Sorting Accuracy(%): | ≥99.99% |
| Camera Sensor: | TOSHIBA | Channels: | 384 |
| Highlight: | 384 Channels Nuts Color Sorter,Optical Peanut Sorter,99.99% Accuracy Peanut Sorter |
||
Product Description

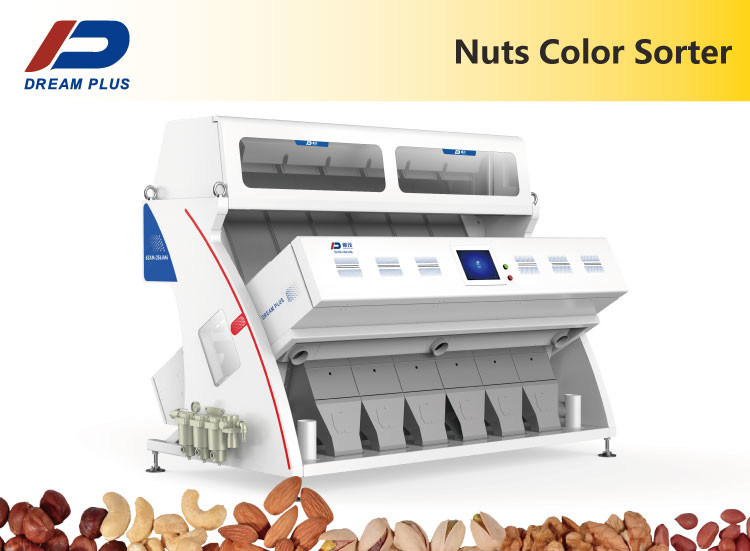

Optical Nuts Color Sorter Machine For Cashew Almond Peanut Sorting
Color sorter for nuts, according to different types of nuts, targeted optimization in hardware and software, such as different beans matching different chute, customized software algorithm for customer requirements, all customer requirements as the center to improve the product.
| Model | 6SXM-384JM6 |
| Channel | 384 |
| Capacity(t/h) | 3-6 |
| Carryover Rate(bad:good) | >20:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (v/hz) | 220/50 |
| Power Supply(kw) | ≤3.6 |
| Air Consumption(m3/min) | ＜5.5 |
| Pressure(Mpa) | 0.6-0.8 |
| Weight(kg) | 1500(±5%) |
| Diamension(mm) | 2528*1595*2040 |
Nuts Color Sorter Technical Features
micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency ejector
High frequency low air consumption ejector, flexible contact,wear-resistant super alloy material with long service time.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,pressure differences and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industry can be upgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30% compared with other competitors.
