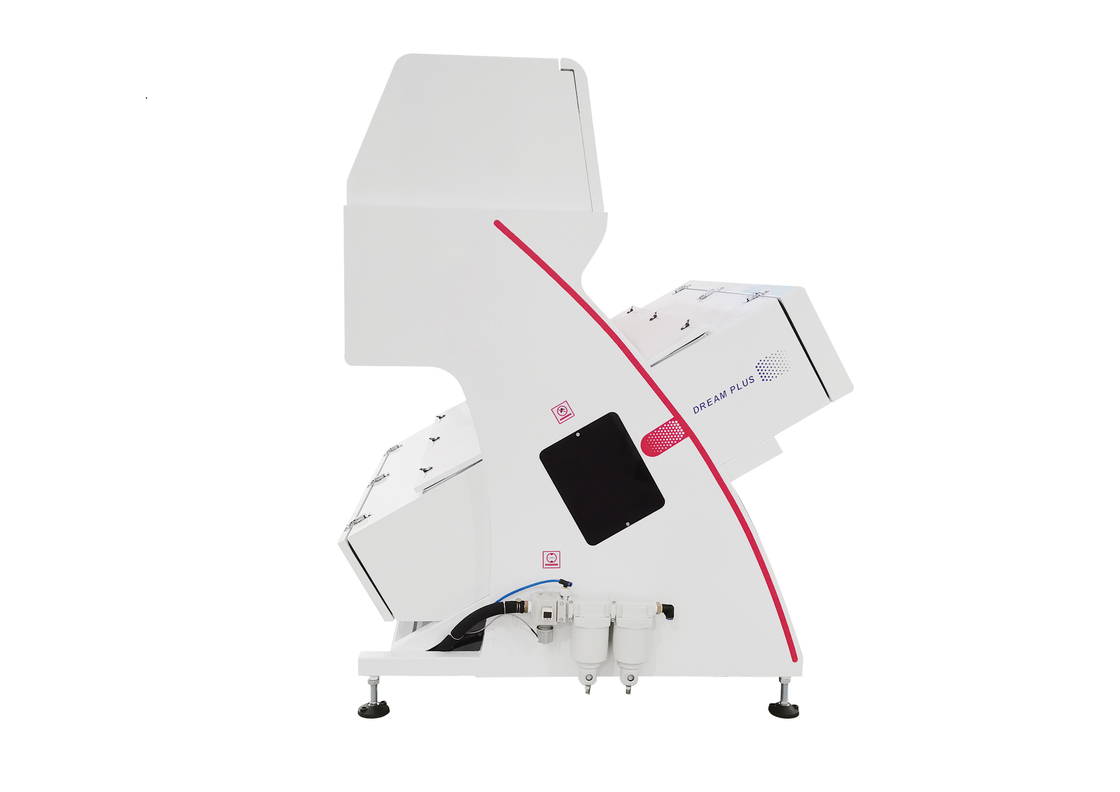

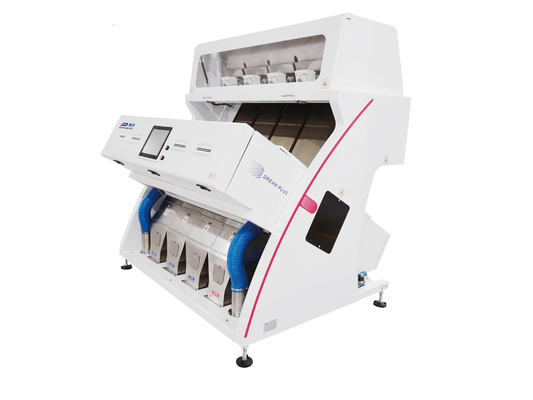

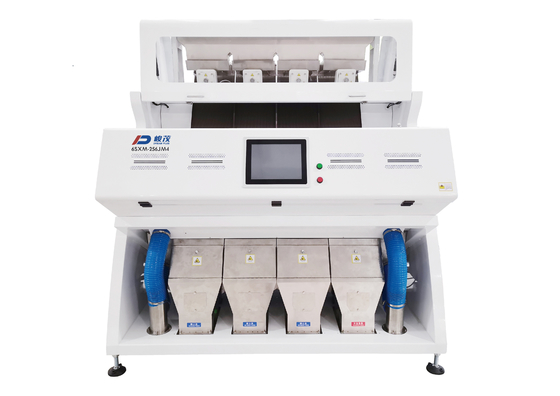

Grape Seeds Color Sorter 256 Channel 4 Chutes

Grape Seeds Color Sorter 256 Channel 4 Chutes

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM4

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Packaging
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-256MJ4 Chute: 4
Channel: 256 Capacity(t/h): 0.8-1.5
Carryover(bad:good): 12:1 Voltage(v/hz): 220/50
Dimension(mm): 1800*1620*2040 Certificate: CE
Power(kw): ≤2.6 Package: Wooden Case
Weight(kg): 1200
High Light:

Grape Seed Color Sorter

,

256 Channel Seeds Color Sorter

,

4 Chutes Seeds Color Sorter

Product Description

Grape Seeds Color Sorter



Seeds color sorter according to the color difference of the customer requirements of product yield, defect impurity and screening, the inferior is eliminated and impurities and other foreign bodies, intelligent mode of production, fast separation speed and perfect separation efficiency is satisfied with your choice.





Technical Parameter



Model 6SXM-256JM4
Output(T/h) 0.8~1.5
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤2.6
Pressure(Mpa) 0.5-0.8
Weight(Kg) 1200(±5%)
Diamension(mm) 1800*1620*2040


Sorting Material
Grape Seeds Color Sorter 256 Channel 4 Chutes 0


Description


Dream Plus Color sorter RGB+Shape:

High-resolution, full color RGB CCD sorter base model with following configurations:

a. 2 high resolution RGB CCD cameras (5400 pixels/camera)

b. High density ejectors (256 air ejectors)

c. Full vision image processing system capable of sorting a variety of defects

d. Multiple sorting modes for different sorting requirements

e. LED lighting for less maintenance

f. Artificial intelligence for learning patterns

g. Ability to sort by size

Depending on separations, capacity ranges from 2,000kgs. per hour to 3,000kgs.

Have a question about whether it will sort your seed, send us a sample (approx. 5kgs.) and we will run it, make a video of it running and ship it back.
