Optical  PET Pellets / Flakes Color Sorter 8 Chute

Optical PET Pellets / Flakes Color Sorter 8 Chute

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM8

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-512JM1 Chute: 8
Channel: 512 Primary Sorting:Re-sorting: 6:2
Capacity(t/h): 6-8 Carryover(bad:good): 15:1
Voltage(v/hz): 220/50 Weight(kg): 1800
Dimension(mm): 3152*1620*2040 Warranty: 1 Year
High Light:

PET Color Sorter

,

PET Flakes Color Sorter

,

PET Pellets Color Sorter

Product Description

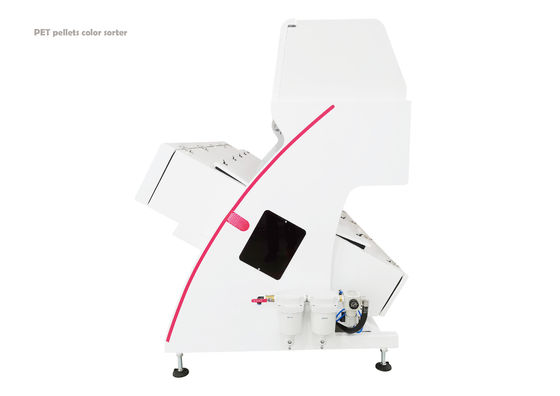

PET Pellets/Flakes Color Sorter

How does PET color sorter machine help you?

Plastic flake Color Sorting Machine will increase the value of your recycled plastic material.This cutting edge technology has been refined specifically for the plastic recycling sector.

It is able to sort a variety of plastics:PET flake,HDPE flakes,PP,ABS and plastic pellets.

Maximizing the value of scrap plastic,by grouping mixed granules and flakes into their individual colours .

High efficiency in removal of unwanted colours,glued flakes and FM(foreign material),resulting in the lowest contamination level.

Dream Plus delivering the highest capacity solutions and production volume.

Features of plastic flake color sorting machine

  • Optical sorting for mixed color material
  • Ideal for removing contamination and increasing recycling plastics value.
  • Ability to programme and sort multi colors.
  • High frequency ejection system for extreme accuracy.
  • Affordable price for plastic processors.



Dream Plus provides optical sorting solutions for plastic processing and recycling industry who demand high standard of quality and purity.Our plastic color sorting machines focus on precision sorting,maximizing capacity and yield and delivering the consistent performance.



Optical sorting solution for Plastic

Dream Plus is renowned worldwide for supplying industry leading optical sorting solutions that maximize not only your processing capacities but also the recovery and purity of your recycled PET (rPET) flakes. Through the removal of unwanted colors, polymer contaminants, metals and foreign materials, recyclers can be confident of the highest grade rPET flake with near-pure resin streams.The comprehensive PET sorting portfolio from Zhongke brings together industry leading sorting technologies providing recyclers with dedicated and precise detection systems targeting all major recycling concerns. Using a combination of transmissive and reflective sorting technologies, our flake sorters are equipped to target anything from the removal unwanted colors, metals and foreign materials to the removal of same-in-colour polymer contaminants such as PVC, PP and PE.

The flake sorters can also be tailored into a full turnkey solution including not only the optical sorting equipment but also all auxiliary equipment in addition to valuable automation, engineering and service expertise. Turn to the first choice supplier of PET sorting technology to maximize your processing capacities, recovery and purity today.


Technical Parameter
Model 6SXM-512JM8
Output(T/h) 6~8
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤4.6
Pressure(Mpa) 0.5-0.8
Weight(Kg) 1800(±5%)
Diamension(mm) 3152*1620*2040



Sorting Image

Optical  PET Pellets / Flakes Color Sorter 8 Chute 0

Technical Features



1,Advanced image acquisition system
Use the high resolution CCD camera with high quality industrial lens to achieve clear and accurate image acquisition .The camera could capture the micro defects of material instantly.



2,High reliability
Use high signal-to-noise ratio sensor and anti-interference circuit system,which could highly improve stability and reliability.



3,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.



4,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.



5,High quality solenoid valve(ejector)
Equipped with high quality solenoid valve.The valve has longer lifespan ,high frequency ,and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect

ejecting.
For the different sizes and characteristics of material particle, Zhongke optical sorters use the solenoid valve of different sizes.



6,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime and perfect performance.



7,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use.Our machine is intelligent so it can learn by itself.Our machine can take a photo of the material and then the machine could set the paramaters by itself.
