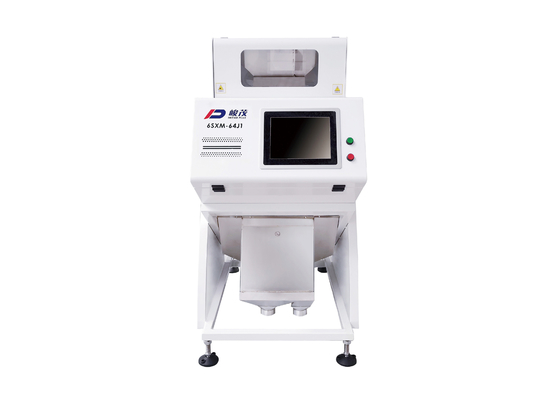

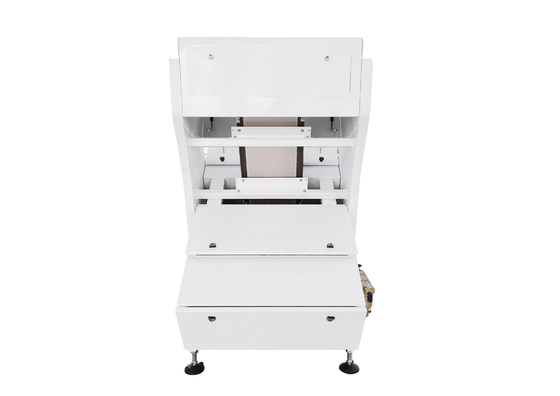

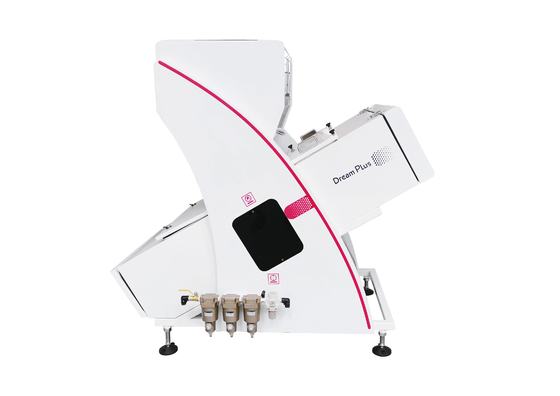

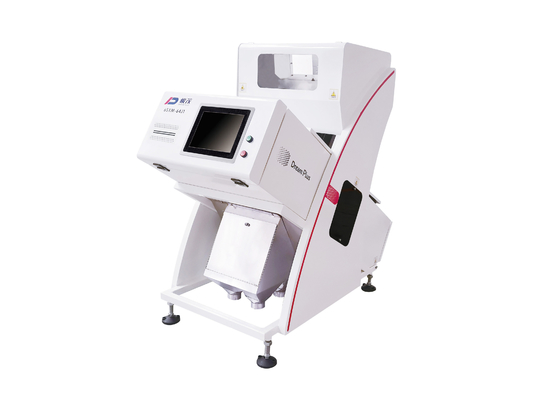

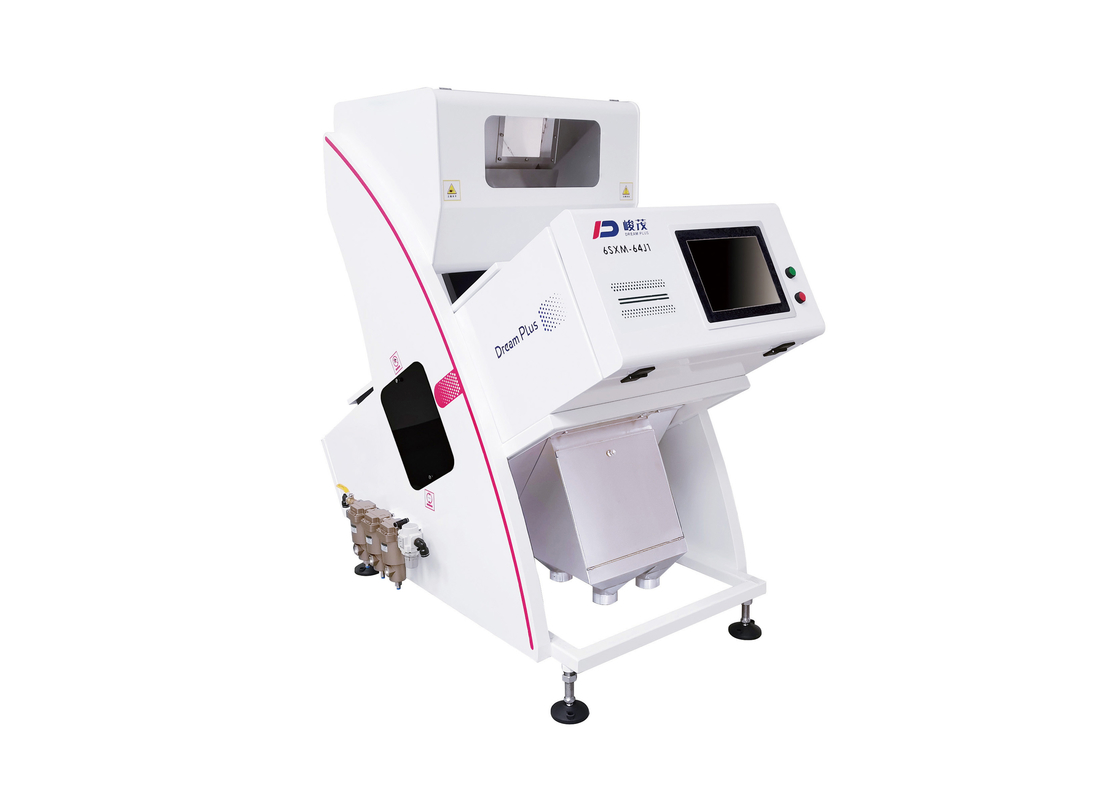

Micron Camera CCD Rice Color Sorter For Rice Mill Mini

Micron Camera CCD Rice Color Sorter For Rice Mill Mini

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、ISO9001
Model Number: JM1

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Fumigated Wood Package
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T, D/P
Supply Ability: 800 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-64JM1 Channel: 64
Capacity: 0.6-2t/h Voltage: 220v/50Hz
Illumination System: LED Opertation System: Windows 7
Product Type: Rice Color Sorter Warranty: 12 Months
High Light:

Mini CCD Rice Color Sorter

,

Intelligent Dimming Rice Color Sorter

,

Micron Camera Rice Color Sorter

Product Description

High Capacity CCD Rice Color Sorter For Rice Mill With Mini Size


Rice Color Sorter Product Overview

Dreamplus rice color sorter, as an intelligent optical machine, can detect and remove moldy rice, chalky rice,broken rice,light yellow and foreign matters. Rice color sorter can sorting for many kinds of rice , like Indiaparboiled rice , raw material rice, basmati rice , and so on.

Rice Color Sorter Technical Parameter
Model 6SXM-64JM1
Channel 64
Capacity(t/h) 0.6-1.0
Carryover Rate(bad:good) >20:1
Sorting Accuracy(%) ≥99.99
Voltage (v/hz) 220/50
Power Supply(kw) ≤1.5
Air Consumption(m3/min) <1.0
Pressure(Mpa) 0.6-0.8
Weight(kg) 450(±5%)
Diamension(mm) 910*1610*1545



Rice Color Sorter Sorting Material

Micron Camera CCD Rice Color Sorter For Rice Mill Mini 0



Rice Color Sorter Technical Features
micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency ejector
High frequency low air consumption ejector, flexible contact,wear-resistant super alloy material with long service time.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,pressure differences and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industry can be upgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30% compared with other competitors.





After Sales Services:

• With presence in a variety of countries, Dream Plus is strongly committed to being close to the customer.

• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Dream Plus managed to provide fast, competent and rooted services in the context of customers.

• Application center in Hefei production base offer demo machines for tests and comparison.

• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.

• Under normal working circumstances, Dream Plus machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.

• Service line is available for emergency support.

• Dream Plus products will be serviced and supported wherever customers are located.

• Through the global Dream Plus network and from Dream Plus technical experts, training on Dream Plus machines is available worldwide.
