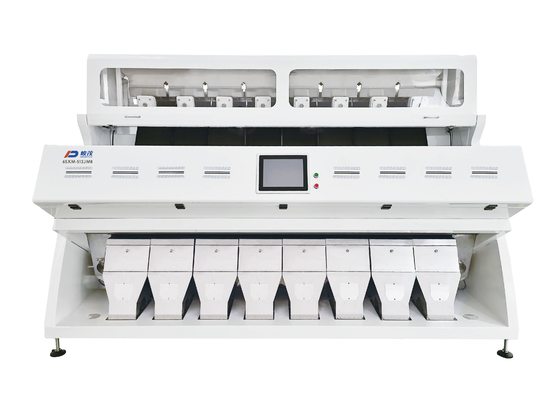

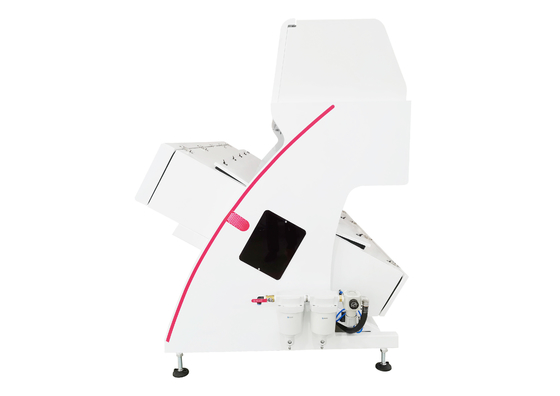

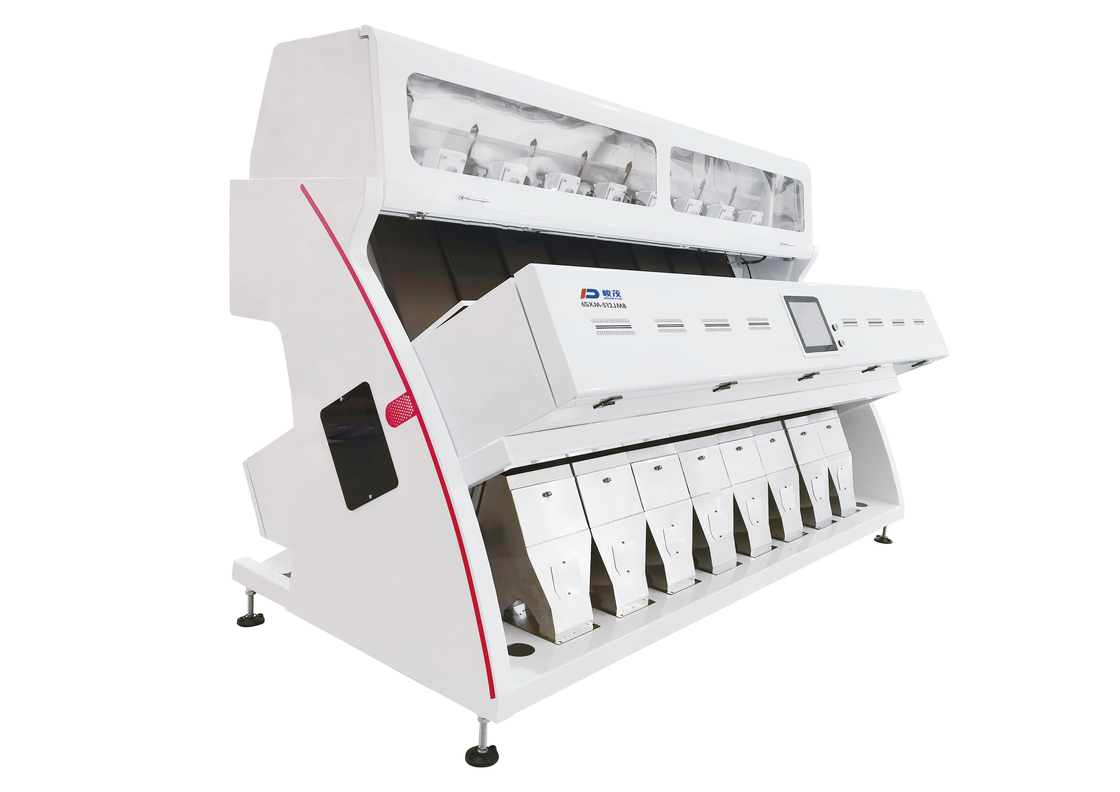

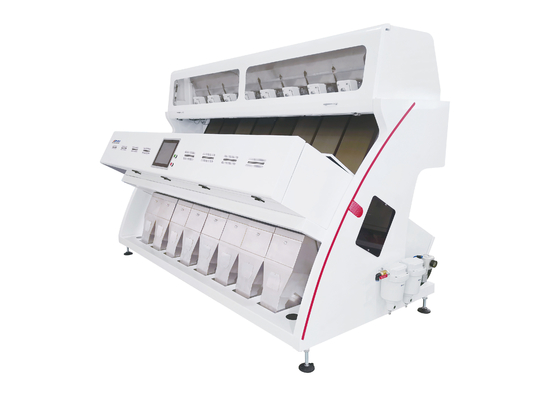

RGB 8 Chutes Glass Color Sorter For Glass Sorting / Recycling

RGB 8 Chutes Glass Color Sorter For Glass Sorting / Recycling

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: ISO9001,SGS, CE
Model Number: JM8

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Fumigated Wood Package
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 300 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-512JM8 Capacity: 6-8t/h
Chute: 8 Power: <4.6KW
Type: Industrial Color Sorter For Glass Sorting Voltage: AC 220V/50Hz
Usage: Glass Sorting Warranty: 1 Year
High Light:

8 Chutes Glass Color Sorter

,

RGB Glass Color Sorter

,

RGB Glass Sorting Machine

Product Description



RGB 8 Chutes Glass Color Sorter For Glass Sorting Glass Recycling With Super Quality



What is a Glass Color Sorter?

Glass Color Sorters are among the newest technology in glass processing. The glass color sorter separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.



The glass color sorter can sort waste broken glass according to different colors , and remove other impurities such as stones,ceramics,plastics and so on.




Industrial Glass Color Sorter Technical Parameter
Model 6SXM-512JM8
Channel 512
Capacity(t/h) 6-8
Carryover Rate(bad:good) >20:1
Sorting Accuracy(%) ≥99.99
Voltage (v/hz) 220/50
Power Supply(kw) ≤4.6
Air Consumption(m3/min) <6.5
Pressure(Mpa) 0.6-0.8
Weight(kg) 1800(±5%)
Diamension(mm) 3152*1595*2040







Industrial Glass Color Sorter Technical Features



1. High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.


2. Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.


3. High frequency low consumption valve, flexible contact,wear-resistant super alloy material, life-long matching use.



4. Advanced chute material and design with hundreds of experiments, ensuring smooth flowing, uniorm flling speed and less materal consumption, machine structure is optimized for dsassembly and maintenance.



5. Atera FPGA, advanced image processing system, each group of image processing unt could be synchronized for multple operations and sorting mode. According to the material of complex colors and shapes, adjust sorting operation to guarantee the sorting accuracy.



Industrial Glass Color Sorter Sorting Material

RGB 8 Chutes Glass Color Sorter For Glass Sorting / Recycling 0


After Sales Services:

• With presence in a variety of countries, Dream Plus is strongly committed to being close to the customer.

• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Dream Plus managed to provide fast, competent and rooted services in the context of customers.

• Application center in Hefei production base offer demo machines for tests and comparison.

• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.

• Under normal working circumstances, Dream Plus machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.

• Service line is available for emergency support.

• Dream Plus products will be serviced and supported wherever customers are located.

• Through the global Dream Plus network and from Dream Plus technical experts, training on Dream Plus machines is available worldwide.
