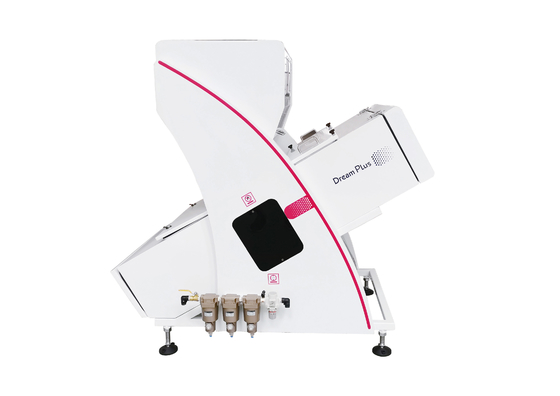

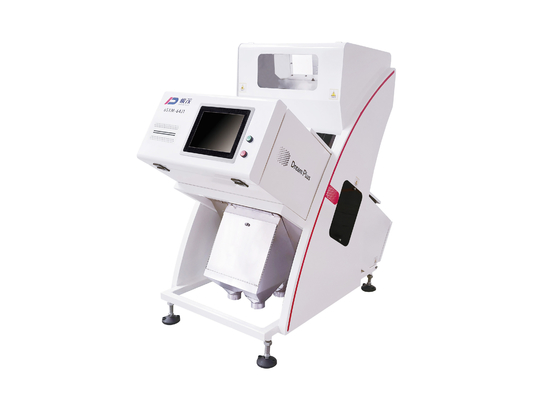

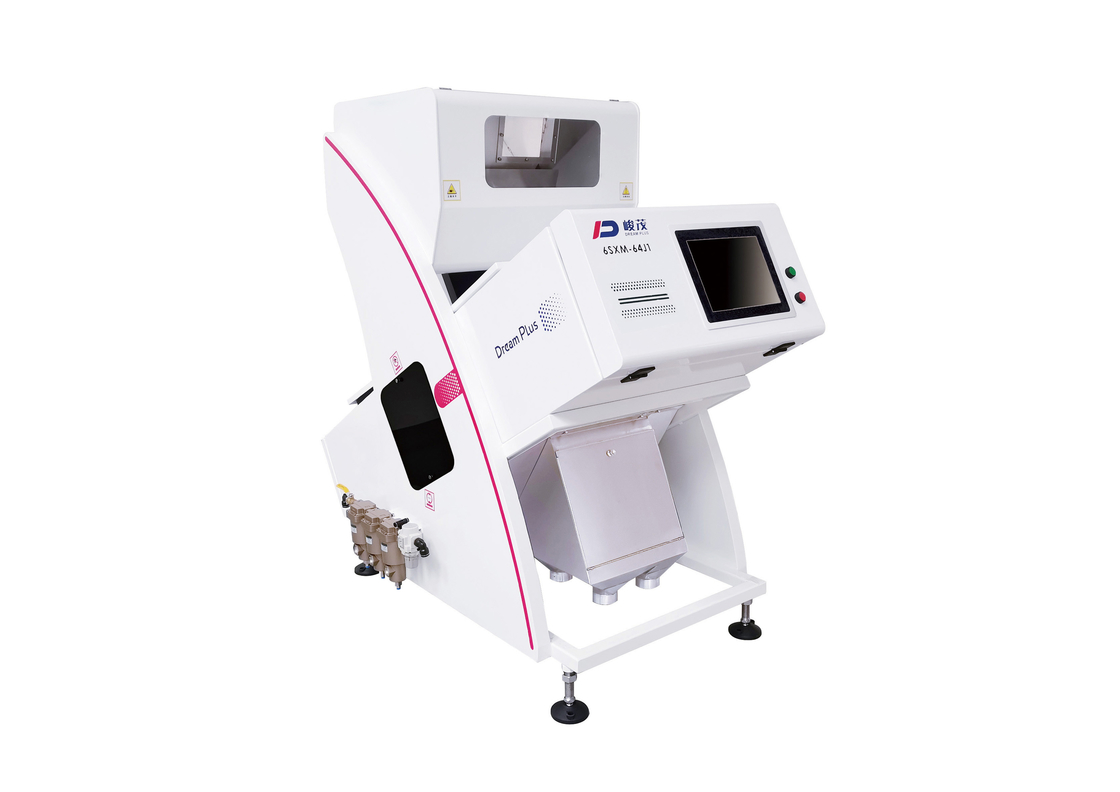

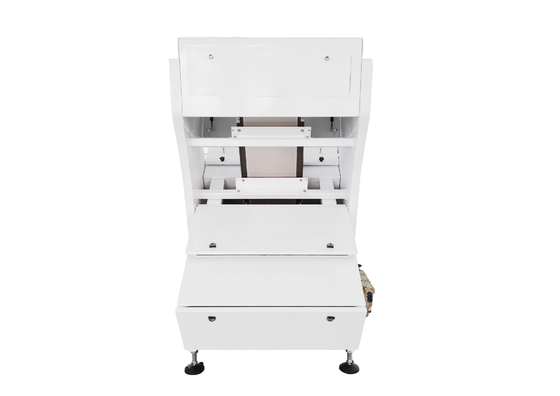

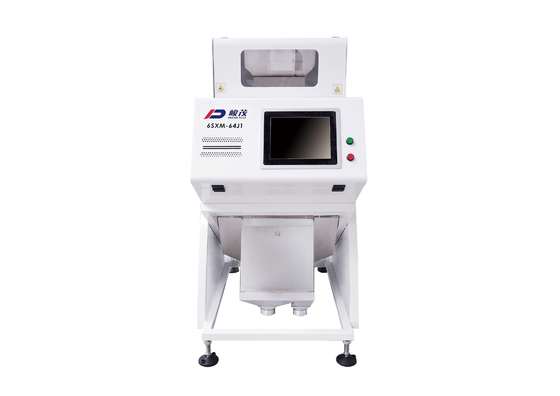

Mini Color Sorter For Roasted / Green Coffee Beans High Capacity
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE, ISO9001,SGS |
| Model Number: | JM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigated Wood Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-64JM1 | Channel: | 64 |
|---|---|---|---|
| Capacity: | 0.4-1t/h | Chute: | 1 |
| Power: | ＜1.5KW | Type: | Coffee Beans Color Sorter |
| Highlight: | Roasted Coffee Bean Color Sorter,Green Coffee Beans Mini Color Sorter,Mini Color Sorter High Capacity |
||
Product Description
Mini Color Sorter For Green Coffee Beans Roasted Coffee Beans Sorting With High Capacity
What is a Bean Color Sorter?
Bean Color Sorters are among the newest technology in bean processing. The bean color sorter separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.
Dream Plus has solutions for sorting grains and seeds, including green and roasted coffee beans, sunflower seeds, and pumpkin seeds. Dream Plus bean color sorter identify and reject discolorations, sclerotia, and all types of foreign material.
Color sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met.
| Model | 6SXM-64JM1 |
| Channel | 64 |
| Capacity(t/h) | 0.4-1 |
| Carryover Rate(bad:good) | >20:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (v/hz) | 220/50 |
| Power Supply(kw) | ≤1.5 |
| Air Consumption(m3/min) | ＜1.0 |
| Pressure(Mpa) | 0.6-0.8 |
| Weight(kg) | 450(±5%) |
| Diamension(mm) | 910*1610*1545 |
Bean Color Sorter Technical Features
micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency ejector
High frequency low air consumption ejector, flexible contact,wear-resistant super alloy material with long service time.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,pressure differences and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industry can be upgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30% compared with other competitors.
Coffee Bean Color Sorter Sorting Material
