CCD Grain Color Sorter For Grain Processing RGB Toshiba Sensor

CCD Grain Color Sorter For Grain Processing RGB Toshiba Sensor

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE, ISO9001,SGS
Model Number: JM6

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Fumigated Wood Package
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 300 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-384JM6 Channel: 384
Capacity: 3-6t/h Chute: 6
Camera Sensor: TOSHIBA Power: 3.6KW
Sorting Accuracy(%): 99.99% Warranty: 12 Months
Type: Grain Color Sorter Voltage: 220V 50Hz
High Light:

Toshiba Sensor Grain Color Sorter

,

RGB CCD Grain Color Sorter

,

6 Chute CCD Color Sorter

Product Description

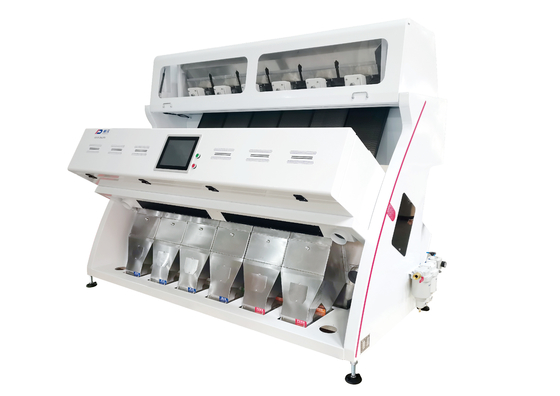

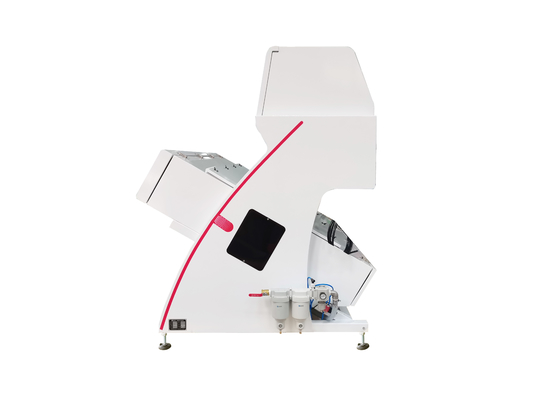

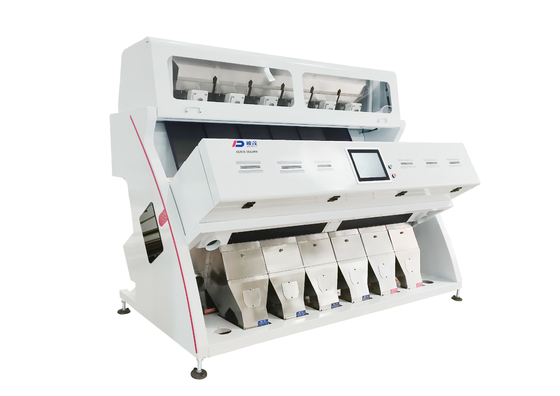

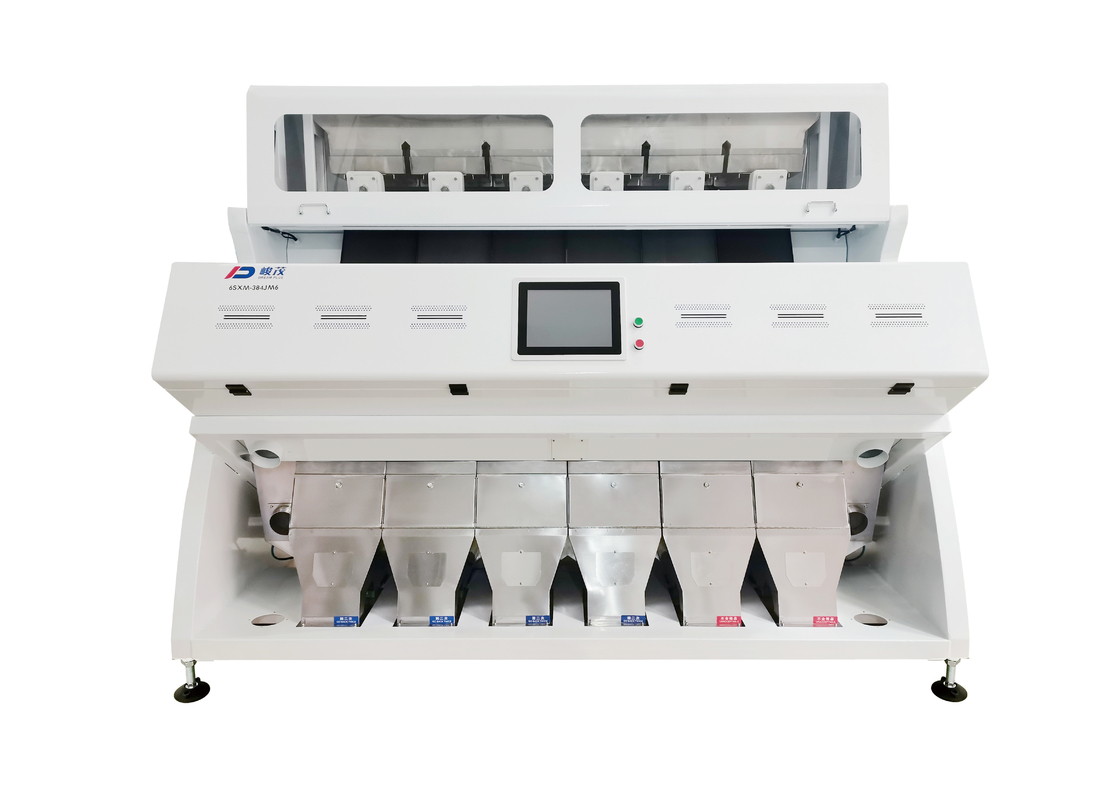

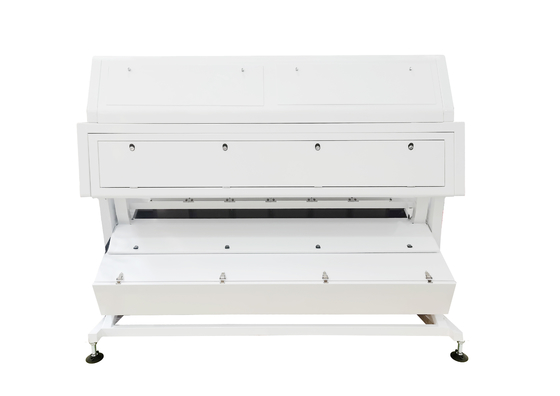

RGB Toshiba Sensor CCD Grain Color Sorter For Grain Processing



What is a Grain Color Sorter?

Grain Color Sorters are among the newest technology in grain processing. The grain color sorter separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.



Dream Plus has solutions for sorting grains and seeds, including green and roasted coffee beans, sunflower seeds, and pumpkin seeds. Dream Plus grain color sorter identify and reject discolorations, sclerotia, and all types of foreign material.



Color sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met.




Grain Color Sorter Technical Parameter
Model 6SXM-384JM6
Channel 384
Capacity(t/h) 3-6
Carryover Rate(bad:good) >20:1
Sorting Accuracy(%) ≥99.99
Voltage (v/hz) 220/50
Power Supply(kw) ≤3.6
Air Consumption(m3/min) <5.5
Pressure(Mpa) 0.6-0.8
Weight(kg) 1500(±5%)
Diamension(mm) 2528*1595*2040







Grain Color Sorter Technical Features
micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency ejector
High frequency low air consumption ejector, flexible contact,wear-resistant super alloy material with long service time.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,pressure differences and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industry can be upgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30% compared with other competitors.





Grain Color Sorter Sorting Material

CCD Grain Color Sorter For Grain Processing RGB Toshiba Sensor 0


FAQ:



1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.


2. How long about the guarantee period?

One year. And we supply lifelong software upgrade services for our customers.



3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.


4. Is oversea service available?

Yes, our engineers could go abroad when required.
