384 Channel Pulse Color Sorter Machine 99.9% Accuracy

384 Channel Pulse Color Sorter Machine 99.9% Accuracy

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Model Number: JM6

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 15-20 Working Days
Payment Terms: L/C, T/T,
Get Best Price Contact Now

Detail Information

Certification: CE,ISO Model: 6SXM-384JM6
Chutes: 6 Channel: 384
Sorting Accuracy: 99.9% Air Pressure(Mpa): 0.5-0.8
Air Compressor:: Included (ask Price Without) Voltage(v/hz): 220/50
Camera: RGB 5400 Pixels Weight(kg): 1500
Dimension(mm): 2528*1620*2040 Warranty: 1 Year
High Light:

Pulse Color Sorter Machine

,

384 Channel Color Sorter Machine

,

99.9% Accuracy Color Sorting Machine

Product Description

Pulse Color Machine Manufacturer from Coimbatore



Dream Plus is a leading global supplier of optical sorting solutions to the food and non-food processing industries and has been at the forefront of optical sorting technology . This success stems from our continuous research, substantial investment in product development and our working partnerships with seed processors. Equipped with the latest in sorting technologies including detection, ejection and processing software, our optical sorting range are able to meet the highest capacities, yield and customer requirement –removing even the most challenging seed defects and foreign materials.



Technical Parameter

Model 6SXM-384JM6
Output(T/h) 3~4
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤3.6
Pressure(Mpa) 0.5-0.8
Weight(Kg) 1500(±5%)
Diamension(mm) 2528*1620*2040


Sorting Material

384 Channel Pulse Color Sorter Machine 99.9% Accuracy 0

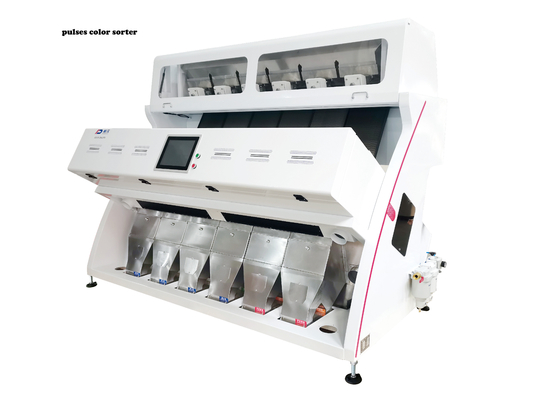

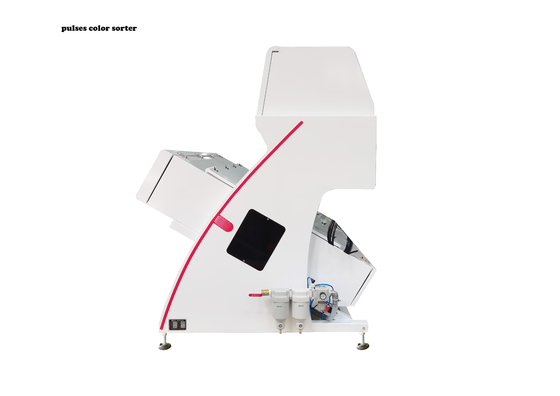

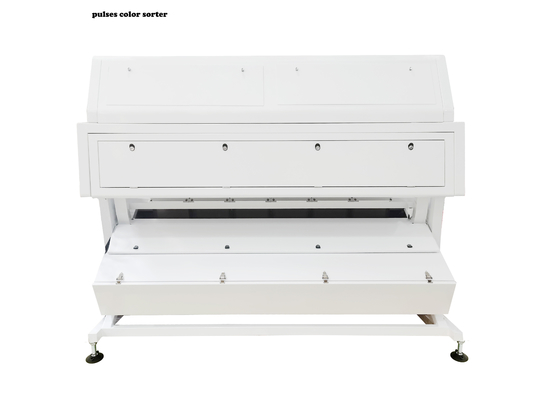

Beans/Pulses Color Sorter


1, the image acquisition system
Full-color high-definition CCD camera image acquisition system, the material (RGB) red, green, and blue color information to obtain a comprehensive, small depth to identify and elaborate common color sorter can not choose other impurities.
2, Cloud IOT system
Independent cloud control, cloud computing technology, online operations, online monitoring, online services, free upgrades.
3, dust removal system
Winnowing dust removal system, the buoyant material attached, dust automatic winnowing, and effectively improve the accuracy of color selection effect.
4, the image processing system
International high-end full-color line scan technology, DSP + FPGA international advanced processing technology, combining a variety of colors and shapes with pattern intelligence complex algorithm to provide for different materials "color option + shape selected" solution, a variety of modes set free.
5, the solenoid valve
Intellectual property rights and the development of color sorter dedicated solenoid valve; special high-strength materials, strong suction, no residual magnetism, linear gas against precision, high consistency, significantly lower than the band; frequency of 1200hz per second or more, and most fast response time of 0.6ms; the life of 50-100 million times.
6, the operating system
Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.
7, intelligent functional design air curtain
On the request of customers for sorting out specific objects, customization is available and accordingly a complete set of solutions can be offered.
Through the fan blowing system, resulting in high-speed airflow lens front glass dust, ethereal, etc. quickly remove to ensure that the resolution and color sorting accuracy.

The company has established a dedicated R&D center and a R&D team composed of experienced engineers and headed by leading optoelectronic experts in China, who have been keeping up with leading-edge photoelectronic technologies in color sorting. Moreover, the company has established in-depth technology cooperation with foreign companies, especially a well-known U.S. producer of color sorters. In particular, the cooperation has brought significant achievements in the research of CCD color sorting technologies, and made great contributions to China’s technological progress in sorting coarse cereals and special materials. At present, the company is offering a complete range of sophisticated color sorters. Meanwhile, on the request of customers for sorting out specific objects, customization is available and accordingly a complete set of solutions can be offered. The company is looking forward to establishing cooperation with customers for mutual benefits and common development.
