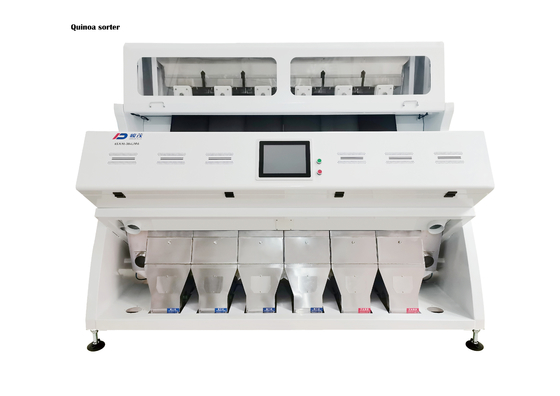

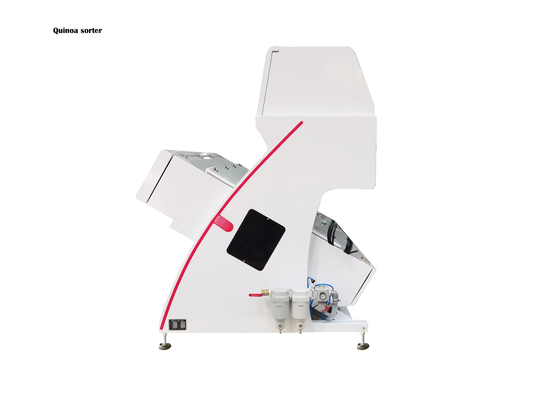

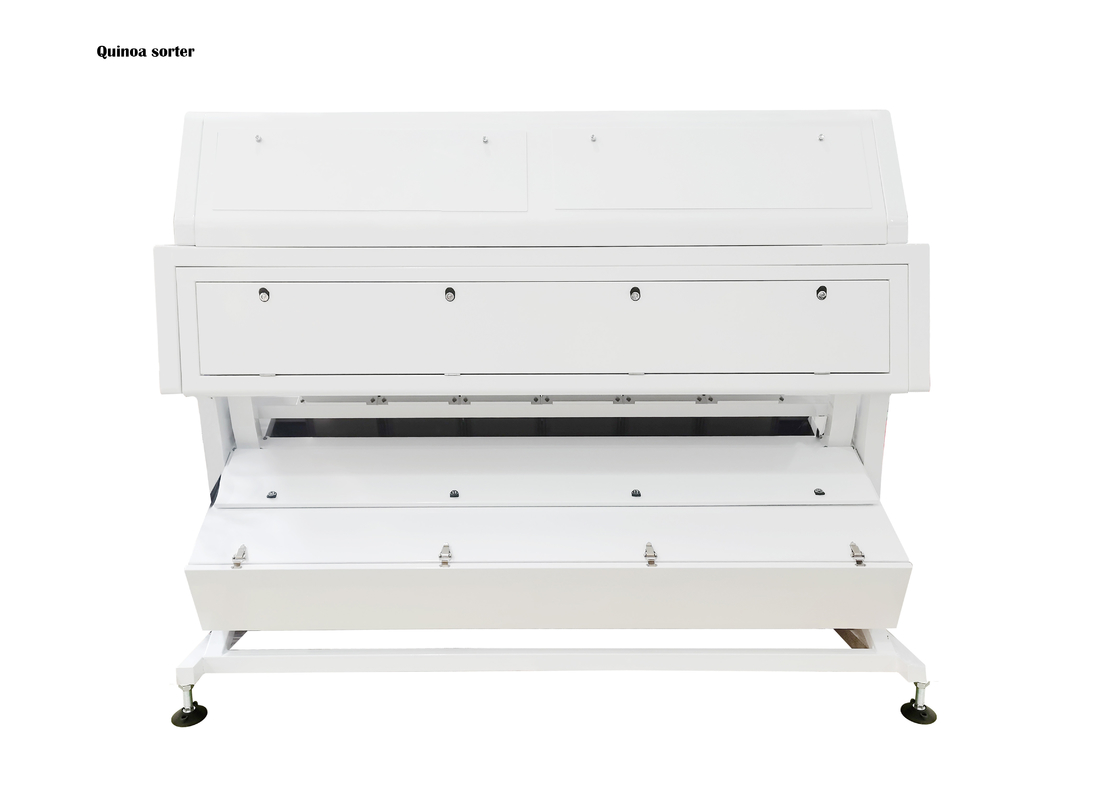

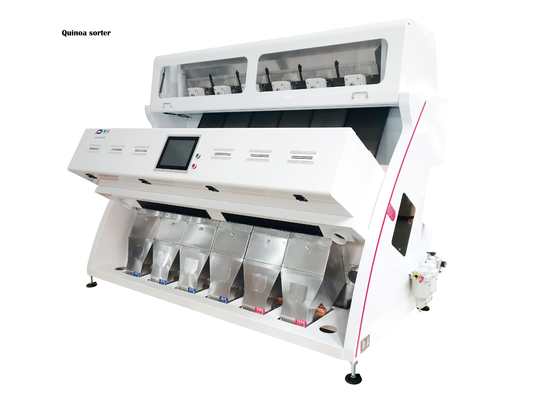

Quinoa Optical Sorting Machine For Peru And Bolivia
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, T/T, |
|
Detail Information |
|||
| Model: | 6SXM-384JM6 | Chutes: | 6 |
|---|---|---|---|
| Channel: | 384 | Sorting Accuracy: | 99.99% |
| Air Pressure(Mpa): | 0.5-0.8 | Air Compressor:: | Included (ask Price Without) |
| Voltage(v/hz): | 220/50 | Camera: | RGB 5400 Pixels |
| Weight(kg): | 1500 | Dimension(mm): | 2528*1620*2040 |
| Warranty: | 1 Year | ||
| Highlight: | Quinoa Optical Color Sorter,Quinoa Optical Sorting Machine,6 Chutes Optical Sorting Machine |
||
Product Description
Product Description
1. The color sorter uses 5400 high performances CCD sensors with resolution up to 0.025mm.
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting .
3. The high speed DSP technology provides the sorter with fast detection and high identification rate.The special coarse cereal detection algorithm is designed.
4. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision.
5. Overall unit adopts intelligent closed-loop control.
6. The operation interface adopts industrial grade 10-inch contact screen and features simple parameters setting and easy operation.
7. High speed air valve is used to ensure quick response, low power consumption and long service life.
8. Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
9. Failure alarm automation and modular construction makes easy repair
Technical Parameter
| Model | 6SXM-384JM6 |
| Output(T/h) | 3~4 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤3.6 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1500(±5%) |
| Diamension(mm) | 2528*1620*2040 |
Sorting Material
FAQ
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C, T/T is OK .
Alibaba Trade Assurance is your best choice.
6. Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7. Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
After-sales service
1. We show our presence in China and around the globe!
2. We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.
3. We have over 30 after-sale service staff, with our service penetrating to prefecture-level city, and provide 24h door-to-door prompt and thoughtful service for customers.
4. We provide customer with one year free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.
Service commitment: One year free repair and maintenance for complete machine, 24h door-to-door fast response, 7x24h consultation service,
Establish user file for follow-up service.
Please provide the following needed information when sending the inquiries:
1. What kinds of material do you want to sort?
2. How much is your throughput?
3. Which country will the machine be used in?
