5400 CCD Optical Seeds Sorting Machine 1 chute 64 Channels Mini Size

5400 CCD Optical Seeds Sorting Machine 1 chute 64 Channels Mini Size

Product Details:

Place of Origin: China
Brand Name: Dream Plus
Certification: CE, SGS, ISO9001
Model Number: 6SXM-64J1

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Get Best Price Contact Now

Detail Information

Color: White Or OEM Type: Optical Color Sorter
Product Name: Dreamplus Color Sorter Capacity: 0.9-1.5
Channels: 64 Voltage: AC 220V
Weight: 350kg Dimension: 955*1630*1550mm
Warranty: 1 Year
High Light:

64 Channels Seeds Sorting Machine

,

Mini Size Seeds Sorting Machine

,

CCD Optical Seeds Color Sorter

Product Description

5400 CCD Optical Color Sorter Seeds Sorting Machine 64 Channels Mini Size



What is an Optical Color Sorter?

Optical Sorters are among the newest technology in seed and grain processing. This equipment separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.

Cimbria SEA offers a complete range of optical sorters. Machines are available from one to seven chutes wide in both the True and Chromex models. Technology range includes a simple monochromatic version, to bichromatic, NIR, InGaAs, RGB Full Color, and now Shape Sizing in the SEA Chromex.

Colour sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met.



How do color sorters work?

Utilizing top of the line Full-Colour RGB cameras, with optical resolution of 0.06 mm the SEA CHROMEX is able to determine and sort the smallest differences in colour or shade for your processing system. The combination of Full-Colour vision system with NIR and InGaAs technologies makes the SEA CHROMEX the most advanced vision-based sorter on market, representing the fruits of almost 50 years’ experience of colour sorting technology.

Excellent for all food and industrial processing systems, SEA CHROMEX reaps the benefits of the new EXAGON interface that makes setting and adjustment extremely simple.



Technical Parameter



Model 6SXM-64J1
Output(T/h) 0.3-0.5
Carryover Rate(Bad:Good) >8:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤1.5
Pressure(Mpa) 0.5-0.8
Weight(Kg) 350(±5%)
Diamension(mm) 955*1630*1550



Color Sorter Typical Features:

1. High reliability
The optimized system structure, minimizes the complexity of the machine, and improves the reliability of the machine.

2. Advanced camera image acquisition system
Unique 5400 pixel, 3 CCD, true color colorful CCD chips, high-speed high resolution linear CCD camera, which can distinguish the heterochromatic area smallest up to 0.025mm2, very accurate.

3. Intelligent image processing algorithm
Special intelligent algorithms, world sole rapid and big data communication, implement special treatment for tiny spots, yellowish material, etc. To improve sorting accuracy.

4. World Famous Ejectors
Using world famous ejectors, 1000times per second high-frequency, 10 billion times long working life, low air consumption to guarantee the big capacity, excellent rejection output.

5. LED light source
The LED light source, long life, more energy-efficient.

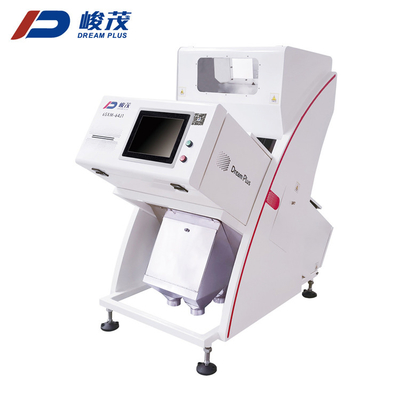

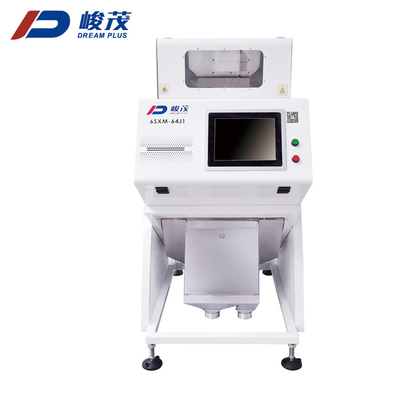

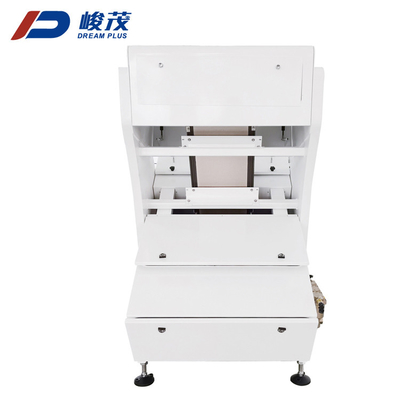

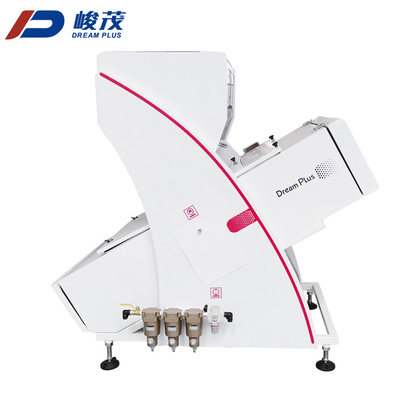

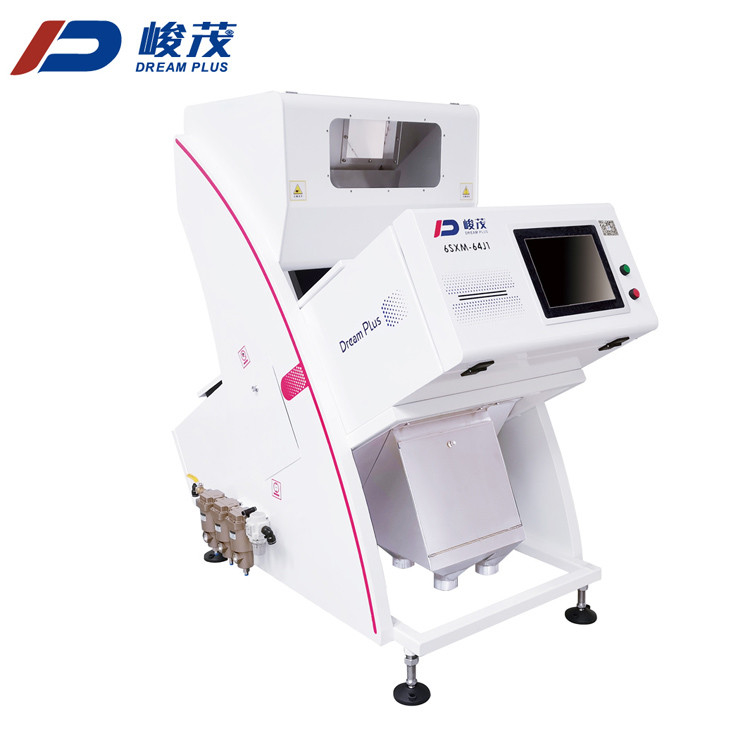

Product Show

5400 CCD Optical Seeds Sorting Machine 1 chute 64 Channels Mini Size 05400 CCD Optical Seeds Sorting Machine 1 chute 64 Channels Mini Size 15400 CCD Optical Seeds Sorting Machine 1 chute 64 Channels Mini Size 25400 CCD Optical Seeds Sorting Machine 1 chute 64 Channels Mini Size 3



FAQ:



1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.


2. How long about the guarantee period?

One year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.


4. Is oversea service available?

Yes, our engineers could go abroad when required.
