Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM2

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Fumigated Wood Package
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXZ-160JM2 Channel: 160
Capacity: 1.5-3t/h CCD: Full Color,5400pixels
Voltage: 220v/50Hz Warranty: 1 Year
Filter Brank: ARK Air Cylinder Brand: ARK
Illumination System: LED After-sales Service: Machine Commissioning And Training
Opertation System: Windows 7 Ejector Cycle: 1-2 Billion
High Light:

2 Chutes Grain Color Sorter

,

160 Channel Grain Color Sorter

,

5400 Pixel CCD Sensor Grain Sorter

Product Description

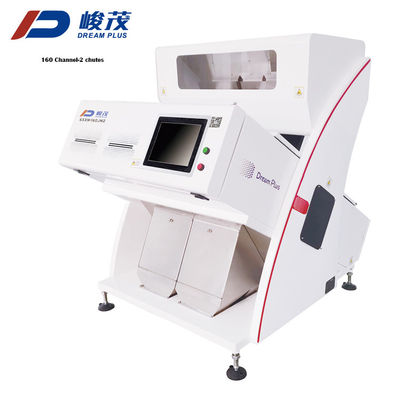

2 Chutes Grain Color Sorter With CE Certificate,5400 Pixel RGB CCD Sensor

Dream Plus can provide an optical colour sorter range which consists of cost effective, high capacity, machines featuring the latest full colour RGB (Red, Green, Blue) technology. Intelligent and intuitive software and flexible configurations make it perfectly suited for medium and large commercial use.



The range is available in different sizes & configurations, and offer flexible resort options that are easily changed by the user to adapt to different product and capacity needs. There is also a range that has the added benefit of shape recognition technology enabling material to also be sorted by shape and length.



Wide chutes provide high processing capacity and the option of a simultaneous tertiary sort offers higher yield. The reverse sort option provides an additional function for reclaiming good product from the reject.



Full colour RGB cameras enable the colour sorter to detect and remove defects with subtle colour differences which adds to its versatility.

The intuitive user interface design has individual sensitivity adjustments for specific defects. This simple sorting control makes it easy for the operator to achieve maximum sorting performance with minimal training.



Another technological advantage present in the Colour Sorting machines is the ability to automatically recalibrate without production stoppage.



Technical Parameter
Model 6SXM-160JM2
Channel 160
Capacity(t/h) 1.5-3
Carryover Rate(bad:good) >10:1
Sorting Accuracy(%) ≥99.99
Voltage (v/hz) 220/50
Power Supply(kw) ≤2.5
Air Consumption(m3/min) 1.2
Pressure(Mpa) 0.5-0.8
Weight(kg) 600(±5%)
Diamension(mm) 1330*1630*1550



Sorting Material

2 Chutes Grain Color Sorter CE Certificate 5400 Pixel RGB CCD Sensor 0

  • Full colour RGB camera technology (wider range of colours using light, RGB, as a scale).
  • Automatic Smart Sensitivity System.
  • 3D colour map technology.
  • Shape recognition.
  • Multilingual touch screen, user friendly interface and image capture technology.
  • Choice of various LED lighting options to perfectly suit the application.
  • High speed, digital signal processing technology.
  • Large smart touch screen panel.
  • Primary sort and tertiary sort options available.
