Barley Oat Drum Wheat Color Sorter With Ingas Technology
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-384JM6 | Chutes: | 6 |
|---|---|---|---|
| Channel: | 384 | Capacity(t/h): | 2.9-3.0 |
| Voltage(v/hz): | 220/50 | Power(kw): | ≤13.6 |
| Weight(kg): | 1500 | Dimension(mm): | 2528*1620*2040 |
| Warranty: | 1 Year | ||
| Highlight: | Ingas Technology Wheat Sorting Machine,Ingas Technology Wheat Color Sorter,CCD Wheat Color Sorter |
||
Product Description

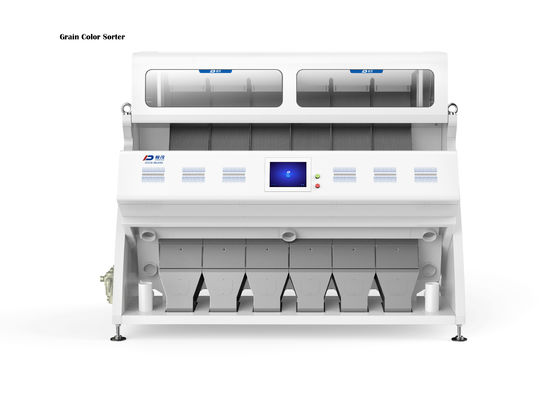

Barley/Oat/Drum Wheat Color Sorter With Ingas Technology
Wheat Color Sorter Machine
Color sorter uses CCD camera sensor for color sorting and grading by different color, shape and size of raw material. Wheat color sorting machine can be applied to remove impurity. Wheat color sorer is also named as CCD Camera wheat optical sorter, wheat spectrum sorting machine and color separation machine ,wheat color sorting machine, and wheat color cleaning machine.
Bida is professional manufacturer of color sorter with overseas experience for installment, commissioning and training. Bida color sorter is heavy duty, easy maintenance.
wheat Color Sorter Machine Description
1 5400 pixels HD industry use CCD camera brings the sorting accuracy to 0.01mm²,easy to separate black spot and light yellow.
2 Advanced Micro Processing Technology + ARM + DSP + IOT extremely increases the sorting capacity to ensure your high producing ability.
3 Latest technology of LED system can satisfy thousands of colors identification,separation and classification requirements.
4 Data Synchronization System makes the adjustment work into the way of ONE BUTTON OPERATION.
5 Latest ejector technology makes the ejectors longer life time, lower air consumption, faster speed, easier maintenance and high sorting accuracy.
6 Special feeding system design makes each chutes separated and allows you to combine the chutes due to sorting requirements, decreases the rejection ratio and air consumption.
7 Self-checking system makes the machine can check the ejectors, cameras, control boards and background boards automatically and save your time to check all components and parts every time before operation.
8 No wearing parts(except mine stone color sorter) makes 0 maintenance cost.
Technical Parameter
| Model | 6SXM-384JM6 |
| Output(T/h) | 2.0~3.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤3.6 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1500(±5%) |
| Diamension(mm) | 2528*1620*2040 |
Sorting Material
