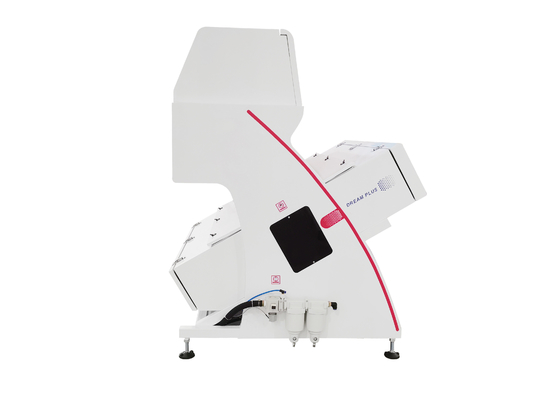

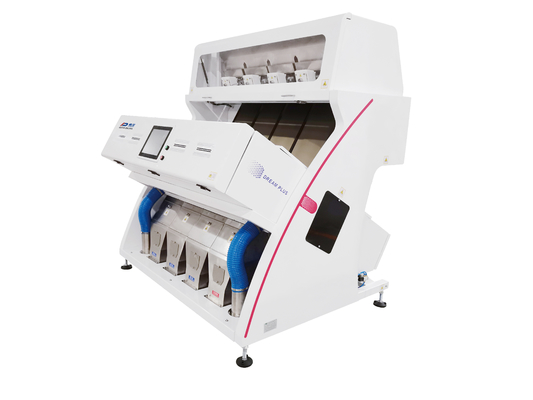

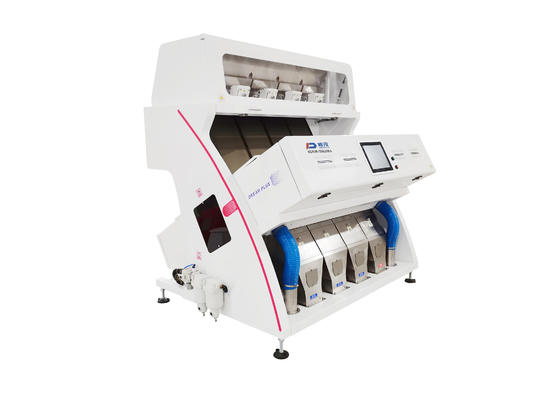

220V 50HZ 1.8KW Optical Grain Color Sorter Machine 3 Chutes

220V 50HZ 1.8KW Optical Grain Color Sorter Machine 3 Chutes

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM4

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 15-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-192JM3 Chutes: 3
Channel: 192 Capacity(t/h): 0.6-1.2
Carry Over Rate(bad:good): 10:1 Weight(kg): 900
Dimmension(mm): 1530*1620*2040 Warranty: 1 Year
Color: White
High Light:

3 Chutes Grain Color Sorter Machine

,

1.8KW Grain Color Sorter Machine

,

220V 50HZ Grain Color Sorter Machine

Product Description

220V 50HZ 1.8KW Optical Grain Color Sorter Machine

Grain Color Sorter Machine Introduction


The materials to be sorted enter the color sorter from the hopper at the top. With the vibration of the vibrator, the materials to be sorted slip along the channel into the observation area in the sorting chamber and go through the sensor and background plate. Under a light source, based on the light intensity and color change, the system generates an output signal to drive the running of the magnetic valve and blow the different color particles into the waste chamber of loading hopper, and good materials fall into the finished product chamber of loading hopper for the purpose of sorting.





Grain Color Sorter Machine Working Principles



Granule material comes into the hopper, from there it goes into the vibratory feeder. The feeders spread and leveled the material to a single-layer flow along the chutes.
Two group of sensors(cameras) are installed at the two sides of the inspecting area. The single-stream e.g. Cereal is scanned by the sensors. The image data is delivered into signal processor. After signal analysis, an air flow pulse is generated to blow the unwanted material into the rejected hopper,and good material slip into the accepted hopper due to no operation of ejectors.



Technical Parameter

Model 6SXM-192JM3
Output(T/h) 0.6-1.2
Carryover Rate(Bad:Good) >10:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤2.0
Pressure(Mpa) 0.5-0.8
Weight(Kg) 900(±5%)
Diamension(mm) 1530*1620*2040



GrainColor Sorter Machine Application



1. Rice

2. Cereals

3. Industrial

4. Others




220V 50HZ 1.8KW Optical Grain Color Sorter Machine 3 Chutes 0




Technical Features
Sensitive camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency ejector
High frequency low air consumption ejector, flexible contact,wear-resistant super alloy material with long service time.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,pressure differences and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industry can be upgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30% compared with other competitors.
