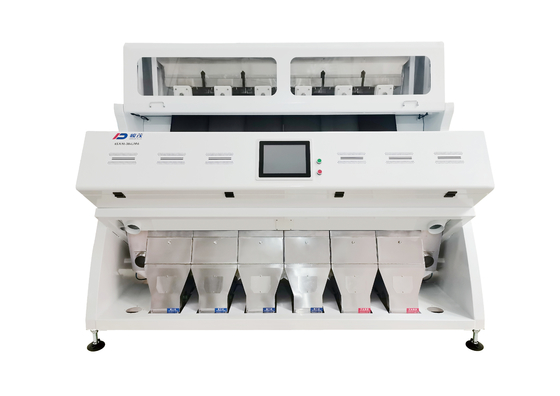

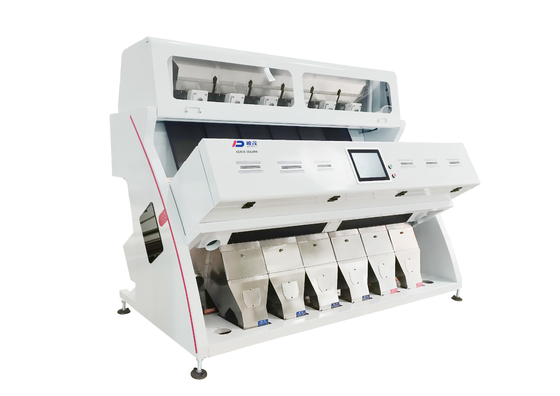

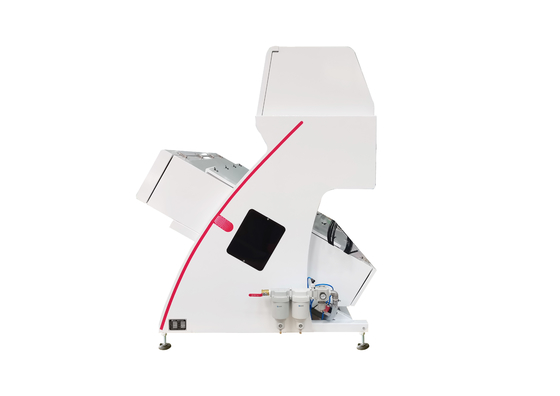

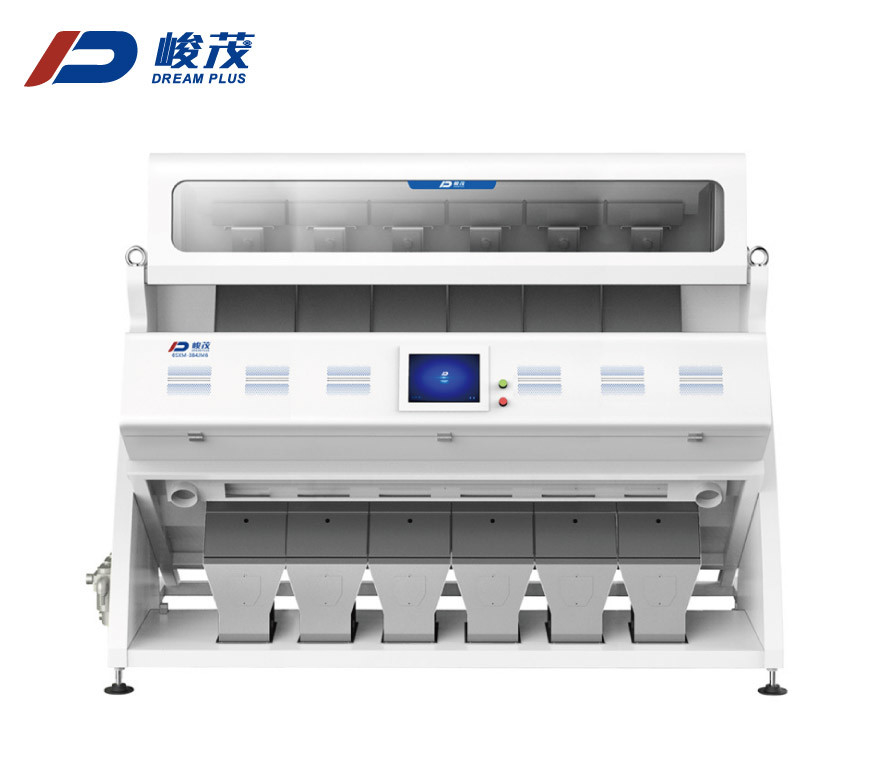

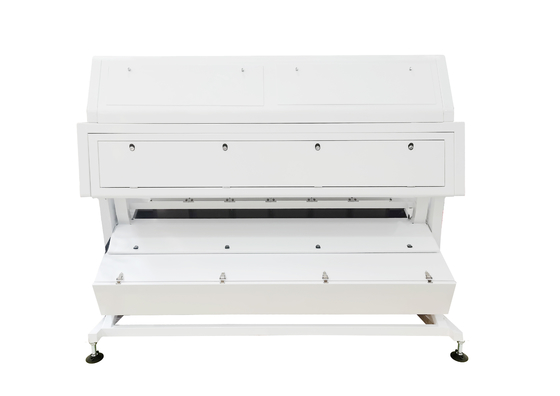

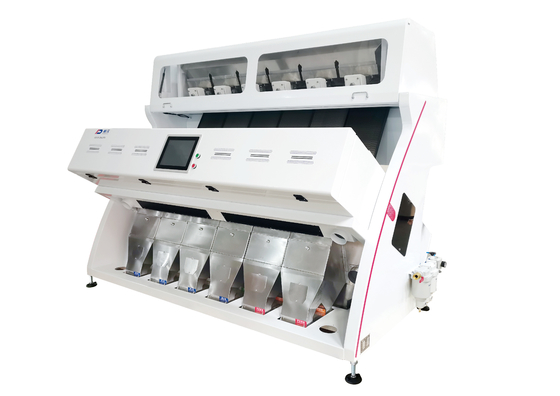

6 Chutes Soybean Color Sorter For Grain Bean Nut And Seed
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-384JM6 | Chutes: | 6 |
|---|---|---|---|
| Channel: | 384 | Capacity(t/h): | 3-4 |
| Carryover(bad:good): | 12.5:1 | Voltage(v/hz): | 220/50 |
| Power(kw): | ≤3.6 | Weight(kg): | 1500 |
| Dimension(mm): | 2528*1620*2040 | Warranty: | 1 Year |
| Color: | White | ||
| Highlight: | 6 Chutes Soybean Color Sorter,384 Channel Bean Color Sorter,6 Chutes Soybean Sorter |
||
Product Description
Soybean Color Sorter Machine for Sorting Grain / Bean / Nut and Seed
Our Color Sorter Machines are of high quality. We Produce the China best Color Sorter.
Application:
Our Color Sorter Can be used for Sorting Various Grains and Beans, Pulses, Nuts, Seeds, Tea, Dehydrated Vegetable, Industrial and So on.
Outstanding Features:
1. Big Production Capacity.
2. Super High Definition, More Accuracy, So amazing.
3. High Sensitivity, Low Carryover Rate.
4. Famous Single Ejector, Stable and Durable, more Easy Maintenance.
5. Advanced Software with Special Algorithm, More Exact to Identify Impurity.
6. Long Life LED Sources.
7. Reliable Quality, Good After-sales Services.
Typical Features:
1. High reliability
The Optimized System Structure, Minimizes the Complexity of the Machine, and Improves the Reliability of the Machine.
2. Advanced Camera Image Acquisition System.
Unique 5000 Pixel, 3 CCD, True Color Colorful CCD Chips, High-Speed, High Resolution Linear CCD Camera, Can Distinguish the heterochromatic area Smallest up to 0.025 mm2, Very Accurate.
3. Intelligent Image Processing Algorithm.
Special intelligent algorithms, Rapid and Big data Communication, Together with 5000 Pixel 3 CCD, Implement Special Treatment for Various Materials to get a fantastic result.
4. With World Famous Single Ejectors.
Over 1000 times per Second high-frequency, More Long Working Life, Low air Consumption, guarantee big Processing Capacity, Excellent Rejection.
5. Latest LED Light Source.
The latest LED Light Source, Long Life, Energy-Efficient.
6. Multi-Language 10" Touch Screen.
Friendly Human Machine Interface, Easy and Simple to Operate.
7. Multiple application available.
Various Materials Can be Sorted, and One Machine Can be Used for Sorting Several Similar Materials, More Flexible.
Technical Parameter
| Model | 6SXM-384JM6 |
| Output(T/h) | 3~4 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤3.6 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1500(±5%) |
| Diamension(mm) | 2528*1620*2040 |
Sorting Material
Function
Many food grain and seed crops need to separated by color which can effectively be done in an electronic sorter utilizing optical lens or CCD Camera and compressed air jets to identify and discard and particles that do not fit the color profile programmed into the machine. These operate automatically and are extremely reliable. our Color Sort optical color sorting machine separates the discolored kernel from good kernels which have already pre-cleaned. Quality of screened product increases to %99,8. Dream Plus Color sorter machine constructed with latest technology available to the industry. Corn color sorting machine, Cashew color sorting machine, Sunflower color sorting machine, Coffee color sorting machine, Plastic color sorting machine, Almond color sorting machine, Rice color sorting machine, Sesame color sorting machine, Peanut color sorting machine, Lentil color sorting machine, Chickpea color sorting machine, Tea color sorting machine, Beans color sorting machine, Soybeans color sorting machine, Wheat color sorting machine, Barley color sorting machine, Pumpkin color sorting machine, Quinoa color sorting machine, Oat color sorting machine, color sorter machine, color sorting machine.
