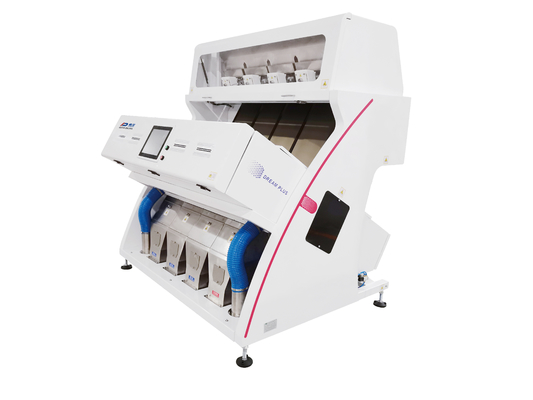

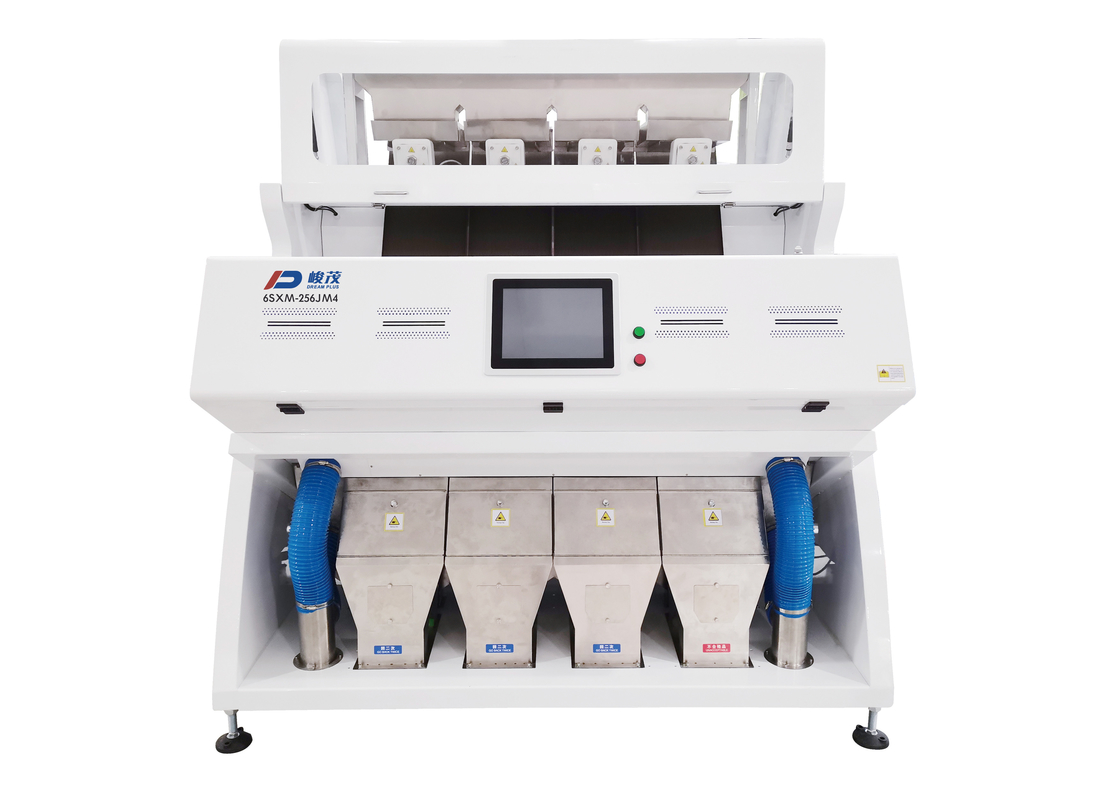

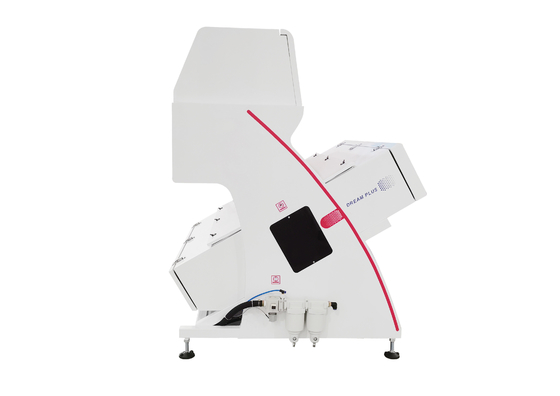

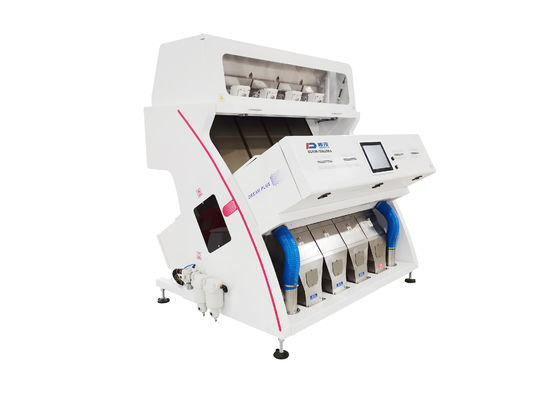

Four Chute Plastic Sorting Machine With Led Tft Real 10" Screen

Four Chute Plastic Sorting Machine With Led Tft Real 10" Screen

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM4

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 15-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-256JM4 Chute: 4
Channel: 256 Capacity(t/h): 2.0-3.0
Carryover(bad:good): 12.5:1 Voltage(v/hz): 220/50
Power(kw): ≤2.6 Weight(kg): 1200
Dimmension(mm): 1800*1620*2040 Warranty: 1 Year
Package: Wooden Case Color: White
High Light:

4 Chute Plastic Colour Sorting Machine

,

Four Chute Plastic Sorting Machine

,

Plastic Color Sorter Machinery

Product Description

High Speed Plastic Color Sorter Machinery With Led Tft Real 10" Screen

 Grape Pip/Grape Seeds Color Sorter With Matrix Ejector

What is an Optical Color Sorter?

Optical Sorters are among the newest technology in seed and grain processing. This equipment separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.

Cimbria SEA offers a complete range of optical sorters. Machines are available from one to seven chutes wide in both the True and Chromex models. Technology range includes a simple monochromatic version, to bichromatic, NIR, InGaAs, RGB Full Color, and now Shape Sizing in the SEA Chromex.

Colour sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met.



How do color sorters work?

Utilizing top of the line Full-Colour RGB cameras, with optical resolution of 0.06 mm the SEA CHROMEX is able to determine and sort the smallest differences in colour or shade for your processing system. The combination of Full-Colour vision system with NIR and InGaAs technologies makes the SEA CHROMEX the most advanced vision-based sorter on market, representing the fruits of almost 50 years’ experience of colour sorting technology.

Excellent for all food and industrial processing systems, SEA CHROMEX reaps the benefits of the new EXAGON interface that makes setting and adjustment extremely simple.



Technical Parameter



Model 6SXM-256JM4
Output(T/h) 2-3
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤2.6
Pressure(Mpa) 0.5-0.8
Weight(Kg) 1200(±5%)
Diamension(mm) 1800*1620*2040

High Speed Plastic Color Sorter Machinery With Led Tft Real 10 " Screen

1. Using imported 5000*3 pixel true color CCD linear array camera, recognition accuracy up to 0.025m㎡, and take machine vision into production in this industry;

2.Using linear array image scanning technology , high-speed intelligent image acquisition system;

3. Using the most advanced U.S. technology for programming device, and the embedded software operation platform make system more stable, response faster and function more powerful;

4. The system is added to special algorithm, such as shape selection, and area algorithm, to solve problems like sorting some kinds of beans according to their shape , color , and area at the same time and expand the scope of application of color sorter , and make multi-function , multi species of color sorting come true;

5. Using the most advanced LED optics technique in the world, machine has longer life , better uniformity, more wide color areas, and lower power consumption, the power consumption is only 10-30% for general lighting ;

6. Using different slide according to different materials, no need to change light source, and it is suitable for a variety of industrial products, beans, nuts, grains and other particles and sheet material;

7. Using of V type , U type , flat slide , and special technology to ensure product stability and reliability;

8. Integrating more than 10 global exclusive patent technology



Typical Features:

1. High reliability
The optimized system structure, minimizes the complexity of the machine, and improves the reliability of the machine.

2. Advanced camera image acquisition system
Unique 5400 pixel, 3 CCD, true color colorful CCD chips, high-speed high resolution linear CCD camera, which can distinguish the heterochromatic area smallest up to 0.025mm2, very accurate.

3. Intelligent image processing algorithm
Special intelligent algorithms, world sole rapid and big data communication, implement special treatment for tiny spots, yellowish material, etc. To improve sorting accuracy.

4. World Famous Ejectors
Using world famous ejectors, 1000times per second high-frequency, 10 billion times long working life, low air consumption to guarantee the big capacity, excellent rejection output.

5. LED light source
The LED light source, long life, more energy-efficient.
