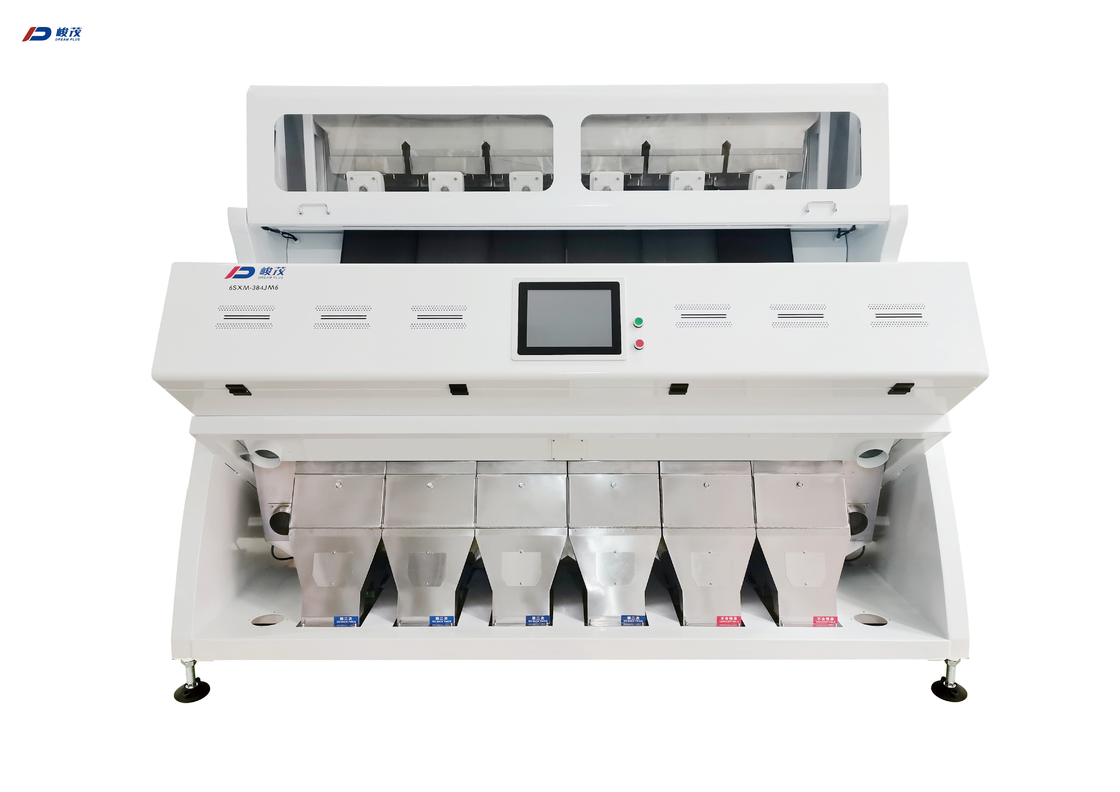

Mini Nuts Color Sorter For Pistachios Almond 99.9% Accuracy
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | 6SXM-96JM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood Packaging |
| Delivery Time: | 7-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 70 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 1-3 Ton | Accuracy: | 99.9% |
|---|---|---|---|
| Voltage: | AC220V, 50Hz | Weight: | 500kg |
| Power: | 2Kw | Dimension: | 1045*1630*1550 Mm |
| Highlight: | Mini Nuts Color Sorter,Nuts Color Sorter 99.9% Accuracy,4096 Pixel Ccd Nuts Color Sorter |
||
Product Description
Mini Pistachios Nuts Color Sorter Almond Sorter Machine with 99.9% accuracy
Dream Plus sorting machines are able to detect and remove in-shells and broken pistachios, insect damage, discoloration, shells, shrivel and sticks from pistachio kernels and sort out attached hull, sticks, oily shells, kernels and foreign material from in-shell pistachios.
Product Parameters
| Model | Capacity(T/h) | Power(Kw) | Voltage | Weight(Kgs) | Dimension(mm) |
|---|---|---|---|---|---|
| 6SXM-64J1 | 0.9-1.5 | 1.5 | AC220V/50Hz | 350 | 955*1630*1550 |
| 6SXM-80J1 | 1.0-2.0 | 1.65 | AC220V/50Hz | 500 | 1045*1630*1550 |
| 6SXM-96JM1 | 1.1-2.2 | 1.7 | AC220V/50Hz | 500 | 1045*1630*1550 |
| 6SXM-160JM2 | 1.5-3.2 | 1.8 | AC220V/50Hz | 600 | 1330*1630*1550 |
| 6SXM-192JM3 | 2.0-5.0 | 2.0 | AC220V/50Hz | 900 | 1530*1620*2040 |
| 6SXM-256JM4 | 3.0-6.0 | 2.6 | AC220V/50Hz | 1200 | 1800*1620*2040 |
| 6SXM-320JM5 | 4.0-7.0 | 3.0 | AC220V/50Hz | 1350 | 2190*1620*2040 |
| 6SXM-384JM6 | 5.0-8.0 | 3.6 | AC220V/50Hz | 1500 | 2528*1620*2040 |
| 6SXM-448JM7 | 6.0-10.0 | 4.0 | AC220V/50Hz | 1750 | 2765*1620*2040 |
| 6SXM-512JM8 | 7.0-11.0 | 4.6 | AC220V/50Hz | 1800 | 3152*1620*2040 |
| 6SXM-640JM10 | 8.0-15.0 | 5.5 | AC220V/50Hz | 2200 | 3910*1620*2040 |
Sorting Materials
Benefits of Dream Plus Machine
Increased processing capacity
Increased profit and yield
Low labor costs
Consistent high quality food and safety
Easy to use and reliable
And many more
Camera
leading in the industry
International well-known brand customized lens
Import high-end 4096PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm²
High-frequency Solenoid Valve
leading in China
Service life more than 1 billion times.
Ultra high precision, leading in China
Intelligent Image Processing Algorithm
The combination of colors and shapes of
intelligent algorithm
Leading role in China.
Precise professional sorting solutions
Customized Lighting System
import purchasing
Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.
Data Transmission System
high-speed and stable
The COAX interface:
High anti-jamming, high transmission speed, high stability
Chip
innovative ultra high-speed processing
Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.
Feed Trough
special technology
Application of high-quality 300mm ultra wide trough in China;
Special anodization treatment process ensures the required production in line with the international first-class level;
Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.
Human-Computer Interface
simple and easy to operate
More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.
