Walnut Shell Kernel Sorting Machine With Size Grading
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | 6SXM-384JM6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood Packaging |
| Delivery Time: | 7-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-384JM6 | Chutes: | 6 |
|---|---|---|---|
| Channel: | 384 | Sorting Accuracy(%): | 99.9 |
| Voltage(V): | AC220V/50Hz | Power(Kw): | ≤3.6 |
| Weight(Kg): | 1420(±5％) | Dimension(L*W*H Mm): | 2650×1630×2030 |
| Warranty: | 1 Year | IR Technology: | Included |
| Highlight: | Size Grading Kernel Sorting Machine,6 Chutes Kernel Sorting Machine,Walnut Shell Nuts Color Sorter |
||
Product Description

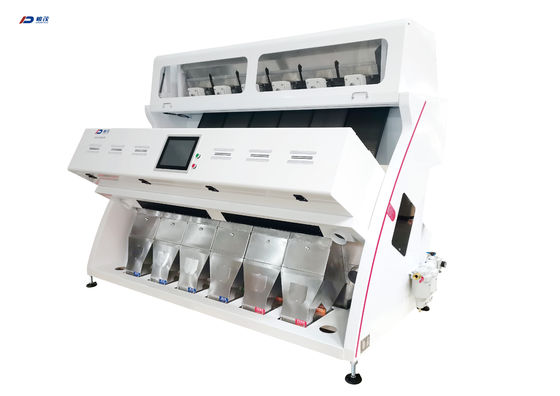

Walnut Shell/Kernel Color Sorter With Size Grading
-
Customized image algorithm
Advanced image algorithm, which can customize specific algorithm according to different sorting materials: color sorting and shape sorting available.
-
Full color CCD cameras
Angelon vision system converts the captured targets into image signals through CCD cameras, and then transmits the signals to a dedicated image processing system.
The 5400*∞pixels grade high resolution CCD color cameras with sharpness up to 0.0025mm2 can identify subtle color differences and defects successfully.
-
Intelligent real-time display of actual material image
Real-time checking the targets marking situation is available on the 12-inch LED computer screen through the real-time display system of actual material image, which is easy for engineers to adjust sorting parameters both on site and by remote.
-
Long life and full color LED light source
With uniform color, high brightness, and long life when using the white LED light source in our full colored color sorters.
-
Remote interconnection system
Remotely diagnoses each color sorter and assist with equipment operation are available after obtaining customers’ authorization.
-
Precise target technology
Accurately identify materials’ defects and impurities, and blow the target defects through the combination of the latest CCD cameras and target positioning program, which can increase the sorting accuracy and reduce the optimized carryover a lot.
-
-
Technical Parameter
| Model | 6SXM-384JM6 |
| Output(T/h) | 2.0~3.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤3.6 |
| Pressure(Mpa) | 0.4-0.6 |
| Weight(Kg) | 1420(±5%) |
| Diamension(mm) | 2650*1630*2030 |
Sorting Material
- widest optical belt sorter
- excellent good-to-bad ratio
- unique three-in-one combination of camera, laser and metal detection
- sorting on the basis of color, shape, structure and biological and magnetic properties
- superior resolution
- advanced sorting software using AI
- optimal flexibility and integration options
- perfect hygiene
- fast product switching
- 24/7 (remote) service
