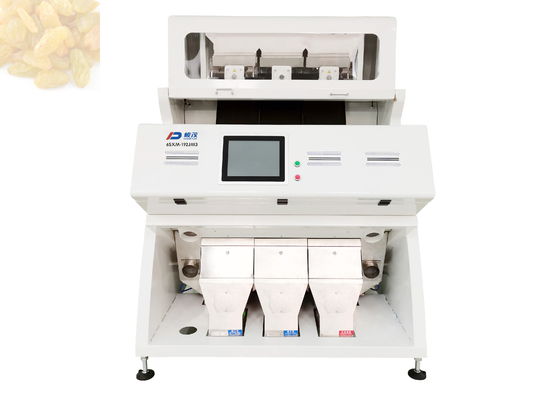

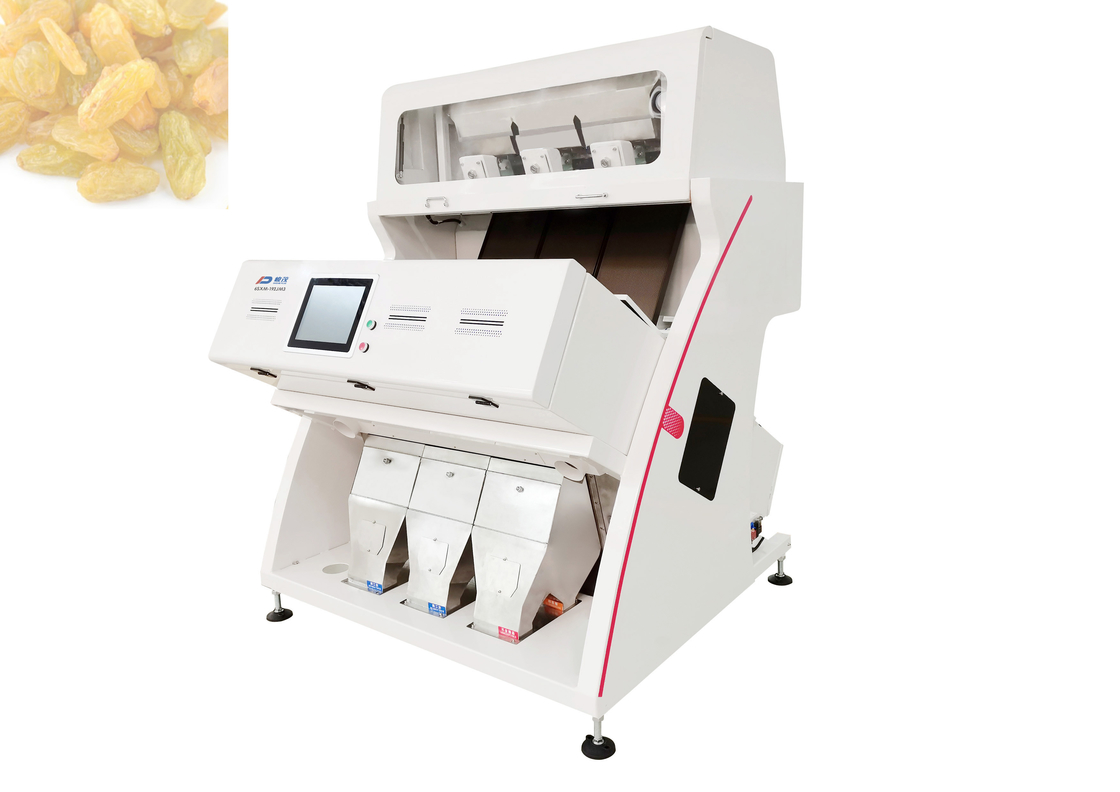

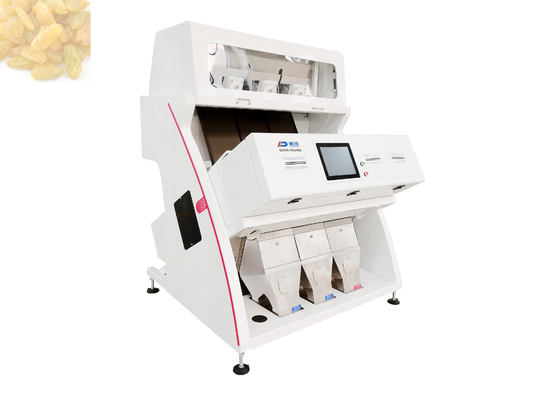

Raisin Dried Grade Almonds Sorting Machine 2t/H 192 Channel
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-192JM3 | Chutes: | 3 |
|---|---|---|---|
| Channel: | 192 | Ejector: | 192 |
| Capacity(t/h): | 1-2 | Carryover(bad:good): | 12.5:1 |
| Voltage(v/hz): | 220/50 | Power(kw): | ≤1.8 |
| Dimmension(mm): | 1530*1620*2040 | ||
| High Light: | 2t/h Almonds Sorting Machine,192 Channel Almonds Sorting Machine,3 Chutes Raisin Sorting Machine |
||
Product Description
Raisin,Dried Grade,Almonds Color Sorter,One Year Warranty
DRIED FRUITS OPTICAL SORTING MACHINE-DREAM PLUS COLOR SORTER
ABOUT US
Hefei Dream Plus Co., Ltd. is a research and development team with many years of experiences engaged in photoelectric recognition research, with rich practical experiences and strong research and development capabilities. Has now developed into a large-scale domestic manufacturer of intelligent sorting and testing equipment with a rich product range and multiple sorting applications
In the field of intelligent sorting, the company not only has professional laboratories, production and testing equipment and a complete intelligent sorting and testing product line, but also can provide personalized product customization services according to the actual needs of customerss, providing customers with a full range of intelligent sorting solutions.
Technical Parameter
| Model | 6SXM-192JM3 |
| Output(T/h) | 1~2 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.9 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤1.8 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 900(±5%) |
| Diamension(mm) | 1530*1620*1550 |
Sorting Material
Raisin color sorter features.
1. International top color CCD sensor, high-definition camera, the sroting net rate can reach 99.9%.
2. Intelligent processing system with super computing power, capable of handling massive data and meeting the complex operation of multiple modes.
3. The latest LED light source, high brightness and low energy consumption at the same time, so that the disease spots, black spots and other defects are not visible.
4. High-precision solenoid valve, durable and long-lasting. Its fast response speed and precise striking can significantly reduce the take-out ratio, improve the selection of net rate and reduce energy consumption.
