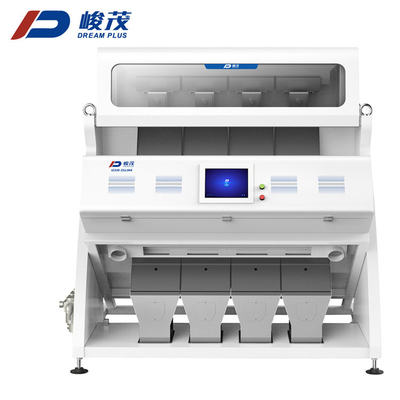

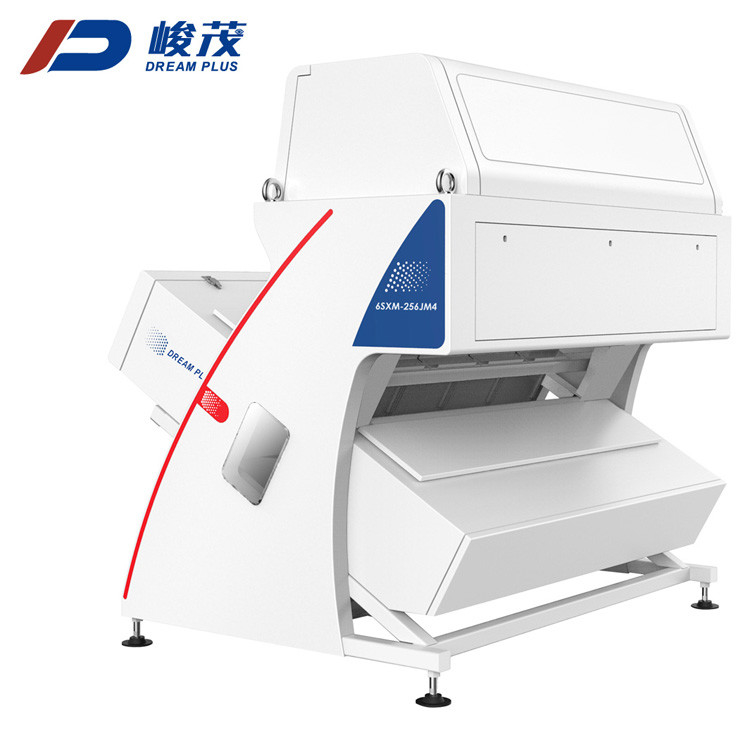

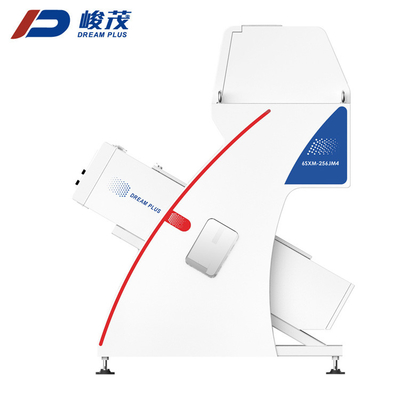

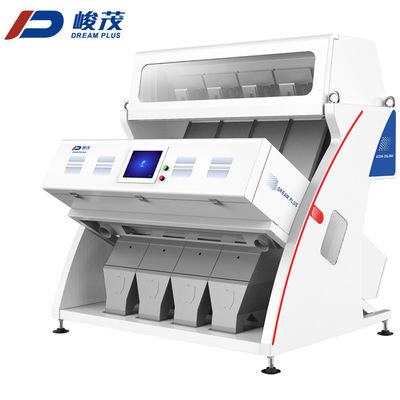

PET HDPE Flakes Plastic Pellets Color Sorting Machine 256 Channel
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Packaging |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-256MJ4 | Chute: | 4 |
|---|---|---|---|
| Channel: | 256 | Capacity(t/h): | 0.8-1.5 |
| Carryover(bad:good): | 12.5:1 | Voltage(v/hz): | 220/50 |
| Power(kw): | ≤2.6 | Dimension(mm): | 1800*1620*2040 |
| High Light: | 256 Channel Color Sorting Machine,HDPE Flakes Plastic Color Sorting Machine,1.5t/h Plastic Color Sorting Machine |
||
Product Description
PET HDPE Flakes,Plastic Pellets Color Sorting machine
Plastic Sorting Machine for Recycling PET Bottle Flakes
Technical Parameter
Sorting Images:
Technical Data Of Plastic Color Sorter
1. Intelligent CCD multifunction belt-type color sorter can not only meet the range of chute type color sorter, but also can sort the material for ethereal, irregular, easily broken, highly-moist material, which have solved the small gravity speed caused by light weight of these special materials.
Recommended Applications: Recycled Plastics, Best for light PVC, PP.
2. The belt speed can up to 4m/s, which can effectively meet the requirements for the sorting output.
3. 5400 full color line scan technology, combining the material’s colors and the shapes, it can provide “color sorting+ shape sorting” for different materials, a varieties of sorting modes can be set freely.
• Operating system and feeding system.
• Original natural-blowing nozzle and valve-driven mode.
• Unique air-suction and ventilation system.
• Super wide conveyor belt.
• Light source processing system.
• Operating system.
• Ventilation cooling system.
• Image processing system.
