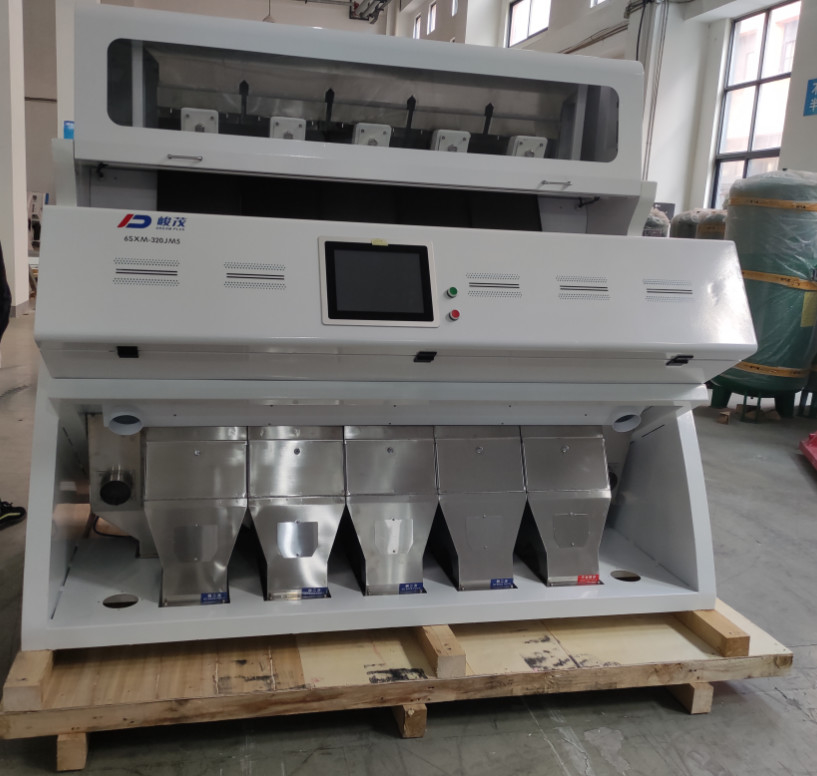

Spices Optical Sorting Machine AC220V 50Hz 2T/H Output
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | 6SXM-320JM5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood Packaging |
| Delivery Time: | 7-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-320JM5 | Voltage(V): | AC220V/50Hz |
|---|---|---|---|
| Power(Kw): | ≤3.0kw | Weight(Kg): | 1360(±5％) |
| Dimension(L*W*H Mm): | 2330×1630×2030 | ||
| High Light: | Spices Optical Sorting Machine,2T/h Optical Color Sorter,AC220V 50Hz Optical Sorting Machine |
||
Product Description
Spices Optical Sorting Machine Clove Color Sorter
Technical Features
1. Digital stepless dimming, automatically matching brightness according to material change.
2. Automatic acquisition of temperature, humidity, air pressure,differential pressure and other related working environment,parameters to achieve monitoring and early warning.
3. Flexible and variable light source equipped with LED system with heat dissipation, long life, low energy consumption and good performance. Different raw materials require different spectral lighting, and tailor the light source according to the needs of customers.
4. The special image processing algorithm uses shape and color combination algorithm according to material characteristics. For complex color materials, the color space after HSV transformation is more intuitive and precise.
5. Simple operation, easy to learn and use, simple optical system design, precise automatic correction system, combined with carefully designed man-machine interface, greatly simplifies the complexity of machine debugging and use, ensures simple operation, and makes the machine easy to learn and use.
6. High-quality solenoid valves use high-quality solenoid valves, high frequency, long service life, very low gas consumption, to ensure that the machine output is large, take-out ratio is low, failure rate is low, low energy consumption.
Technical Parameter
| Model | 6SXM-320JM5 |
| Output(T/h) | 1.0~2.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤3.0 |
| Pressure(Mpa) | 0.4-0.6 |
| Weight(Kg) | 1360(±5%) |
| Diamension(mm) | 2330*1630*2030 |
Sorting Material
Our Service
1. Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
2. After Sale Service
● 7*24 hours
24 hours door to door fast response,7*24hour on-line service.
● On-time arrival
Arrive the customer site on the appointed time.
● Comprehensive maintenance
Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.
● Professional training
Supply fully description of operation and maintenance of color sorter to help you understand the routine maintenance and simple troubles hooting.
● Site cleaning
Clean up machine and service area after trouble shooting.
● Strict acceptance
Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.
