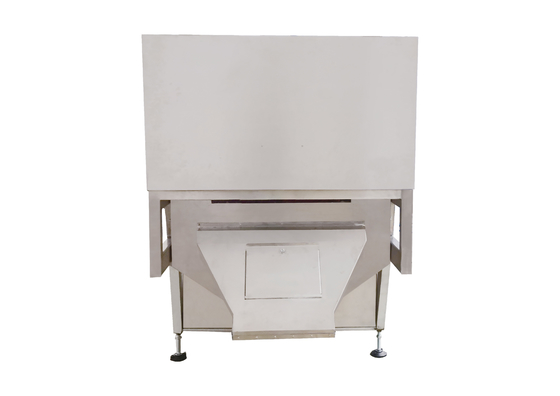

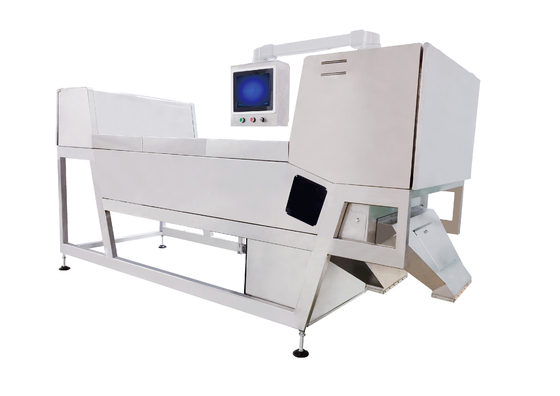

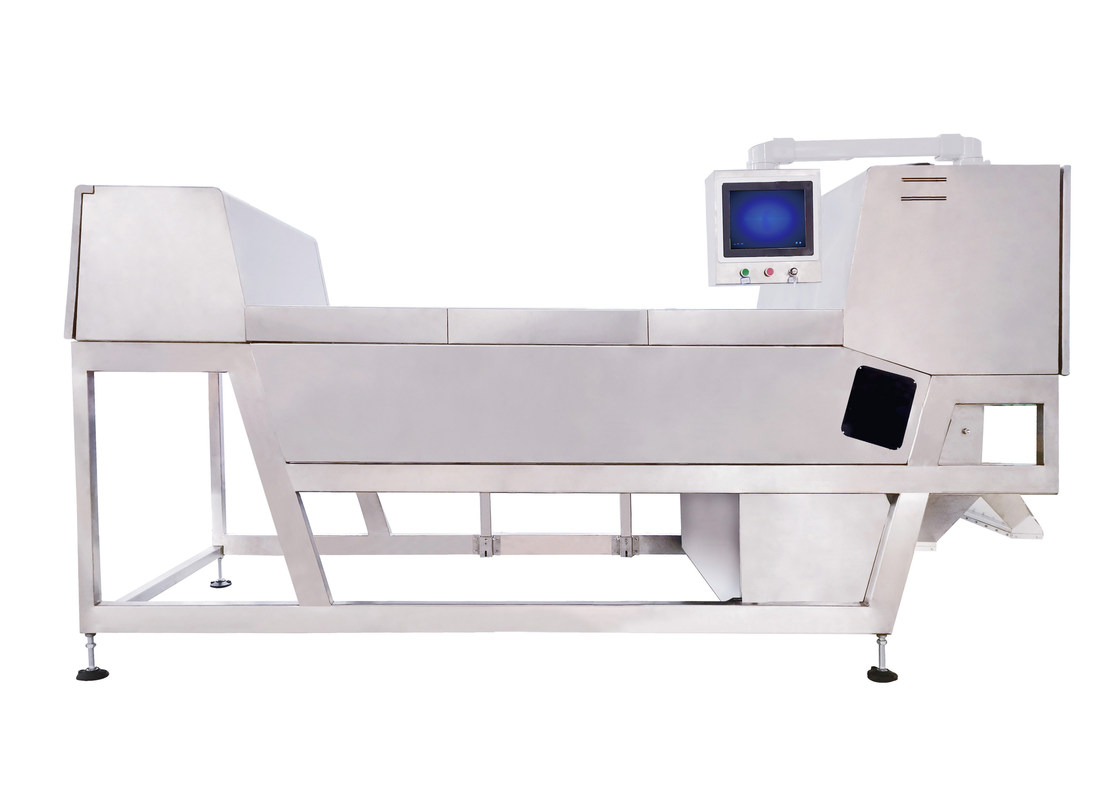

600m Belt Color Sorter For Dehydrated Vegetable Dried Chilli
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | DPLDS600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood Packaging |
| Delivery Time: | 7-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Name: | Belt Color Sorter Machine | Belt Width(m): | 600 |
|---|---|---|---|
| Capacity(t/h): | 0.6-1.0 | Voltage(V/Hz: | 220/50 |
| Camera Configuration: | 4 Front+4 Rear | ||
| High Light: | Dehydrated Vegetable Belt Color Sorter,600m Belt Color Sorter,Dehydrated Vegetable Sorting Machine |
||
Product Description
Dehydrated Vegetable,Dried Chilli Color Sorting Machine
Belt Color Sorter: The material after color separator of a port (bin) smooth transfer to another port (outlet), outlet is equipped with high speed camera acquisition card, material after industrial camera collection, in the end of the color separator will be color difference bad material separation of impurities. The entire process, track color separator will play a role of the color to choose.
Belt Color Sorter is suitable for applications in food processing companies of nuts, seafood, fresh cut vegetables, dried fruits, dried fruits, fresh fruits, freeze-dried fruits and vegetables. Metak color sorter machinery limited manufacture belt color sorter.
Technical Parameter
| Model | DPLDS600 |
| Output(T/h) | 0.6-1.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤3.5 |
| Pressure(Mpa) | 0.4-0.6 |
| Weight(Kg) | 650(±5%) |
| Diamension(mm) | 3098*1130*1660 |
Technical Features:
Micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency solenoid valve
High frequency low consumption valve, flexible contact,wear-resistant super alloy material, life-long matching use.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,differential pressure and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industrycan beupgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30%compared with other competitors.
