Alfa Seeds Lucerne Seeds Sorting Machine With 5400 Pixel Toshiba CCD Sensor
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Packaging |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-256MJ4 | Chute: | 4 |
|---|---|---|---|
| Channel: | 256 | Capacity(t/h): | 0.8-1.5 |
| Carryover(bad:good): | 12.5:1 | Voltage(v/hz): | 220/50 |
| Power(kw): | ≤2.6 | Dimension(mm): | 1800*1620*2040 |
| High Light: | 5400 Pixel CCD Seed Color Sorter,Alfa Seeds Sorting Machine,Lucerne Seeds Sorting Machine |
||
Product Description

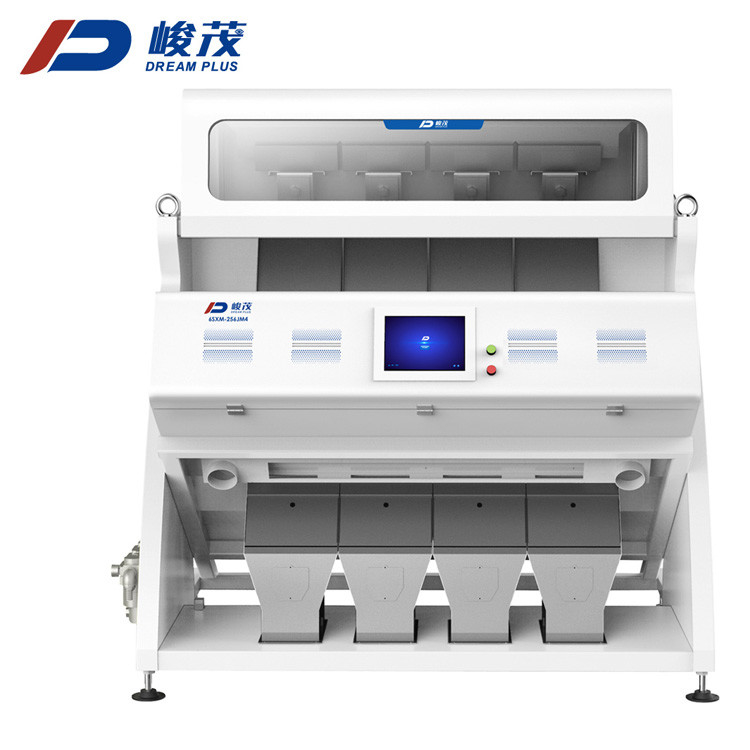

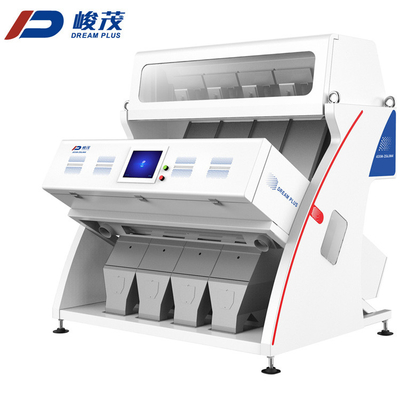

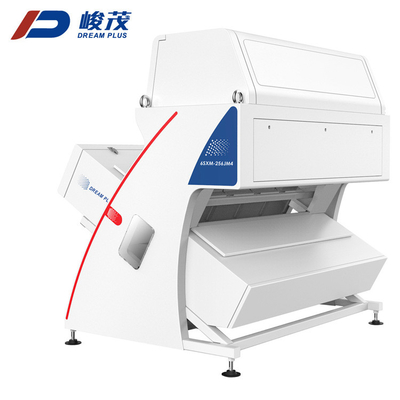

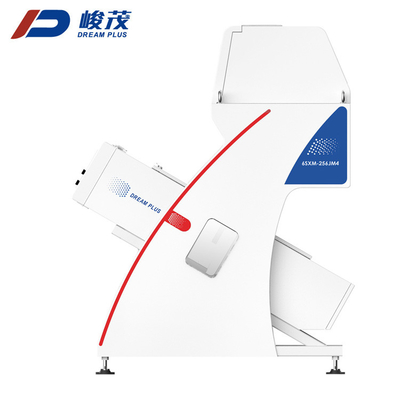

Alfa Seeds,Lucerne Seeds Color Sorter,5400 Pixel Toshiba CCD Sensor
Features dual view cabinets. Customized infrared light and camera assembly can be installed for special material. The latest 3 linear color CCD camera and FPGA processing system in addition to the high-speed electromagnetic ejector have been adopted in the machine, and also the multi-color touch screen has been installed therein, so it is a high-tech product combined with technology of optics, electronics and pneumatic NIR is an optional device. The machine can automatically reject contaminant or colored grains, featuring high sorting accuracy, great efficiency, simply operation, easy maintenance, compact structure and elegant appearance. The sorter is now in the leading position among the industry
Technical Parameter
| Model | 6SXM-256JM4 |
| Output(T/h) | 0.8~1.5 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤2.6 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1200(±5%) |
| Diamension(mm) | 1800*1620*2040 |
Advanced Vision System:
- Specially designed optical to reduce shadow and distortion.
- High speed, sensitive CCD camera with 5400 pixel resolution to detect tiny spot defects.
- Optional NIR (Near Infrared) to detect foreign material with same color.
Intelligent software and Powerful Digital Image Processing:
- 4th Generation FPGA + high speed DSP to deliver sorting algorithms.
- Customized color model to support sophisticated defect processing including Spot, Area, Size defects.
- Support multiple sorting modes to minimize product change over time.
- Bi-chromatic (visible + NIR) sorting to support Light, Dark sort on both visible and NIR wavelengths, which cover all kinds of defects and foreign materials.
User Friendly Operation:
- High resolution touch screen with user-friendly graphics.
- Real time monitor of machine status.
- Easy software upgrade with USB.
Optimized Ejection:
- Fast valve response to ensure accurate ejection on defects.
- Specially made ejectors and optimized timing for low carryover, reduced air consumption.
- Dual air supply for stable air pressure under high defect sorting.
- Optimized blow time to reduce good rice carried over into reject (R model).
