Black Peppercorn Optical Sorting Machine 1.5t/H Smart Sorting
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Packaging |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-256MJ4 | Chute: | 4 |
|---|---|---|---|
| Channel: | 256 | Capacity(t/h): | 0.8-1.5 |
| Carryover(bad:good): | 12.5:1 | Voltage(v/hz): | 220/50 |
| Power(kw): | ≤2.6 | Dimension(mm): | 1800*1620*2040 |
| High Light: | Black Peppercorn Optical Sorting Machine,1.5t/h Black Pepper Sorting Machine,Black Pepper Optical Sorting Machine |
||
Product Description

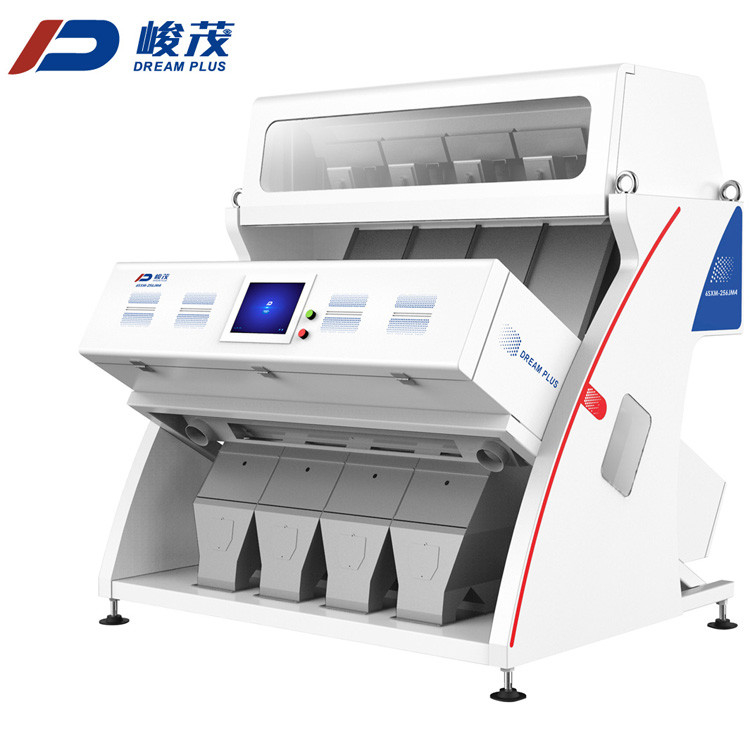

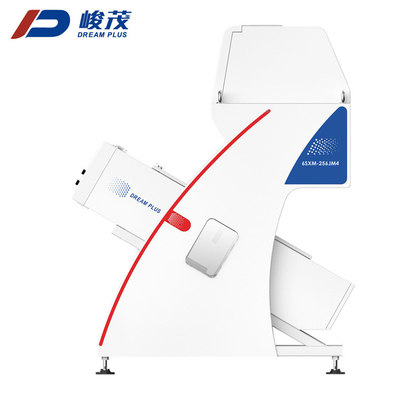

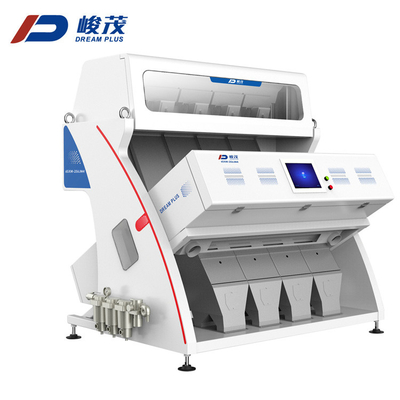

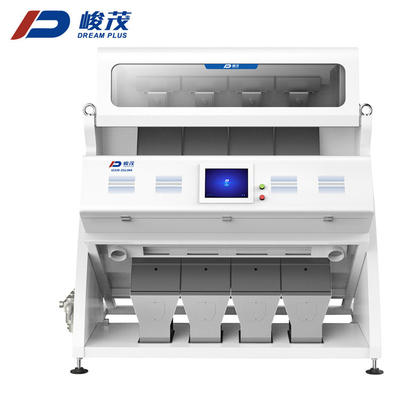

Black Peppercorn Optical Sorting Machine With Smart Sorting
Black Pepper Color Sorter:
Black pepper is produced from the still-green, unripe drupes of the pepper plant. The drupes are cooked briefly in hot water, both to clean them and to prepare them for drying; the heat ruptures cell walls in the pepper, speeding the work of browning enzymes during drying. The drupes are dried in the sun or by machine for several days, during which the pepper around the seed shrinks and darkens into a thin, wrinkled black layer. Once dried, the spice is called black peppercorn. On some estates, the berries are separated from the stem by hand and then sun-dried without the boiling process.
Once the peppercorns are dried, pepper spirit and oil can be extracted from the berries by crushing them. Pepper spirit is used in many medicinal and beauty products. Pepper oil is also used as an ayurvedic massage oil and used in certain beauty and herbal treatments.
Black pepper color sorter is for choosing the better black pepper , and remove the bad material. Metak color sorter can choose the good material according to the color.
Check the examples of color sorter as below:
Technical Parameter
| Model | 6SXM-256JM4 |
| Output(T/h) | 0.8~1.5 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤2.6 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1200(±5%) |
| Diamension(mm) | 1800*1620*2040 |
Main features:
1. Excellent sorting persormance: Advanced image acquisition system + intelligent
image processing algorithm + high quality ejection system=excellent output and
rejection;
2. RGB full color tri-chromatic CCD image acquisition system: Top industrial 5400 pixel
CCD high speed linear scan imaging sensor also first-class tailored camera lens for color
sorting with a precision identifying tiny defects till 0.01m2;
3.Super ease operation system: Simple optical system design and accurate in time auto
calibration system plus simplified GUI design help reduce complicacies of machine
commissioning and running, easy operation and maintenance secured;
4. Customized image processing algorithm: Intelligence algorithm integrating image
color difference and defect size difference;
5. Long-life software upgrading for free;
6.OEM service welcomed.
