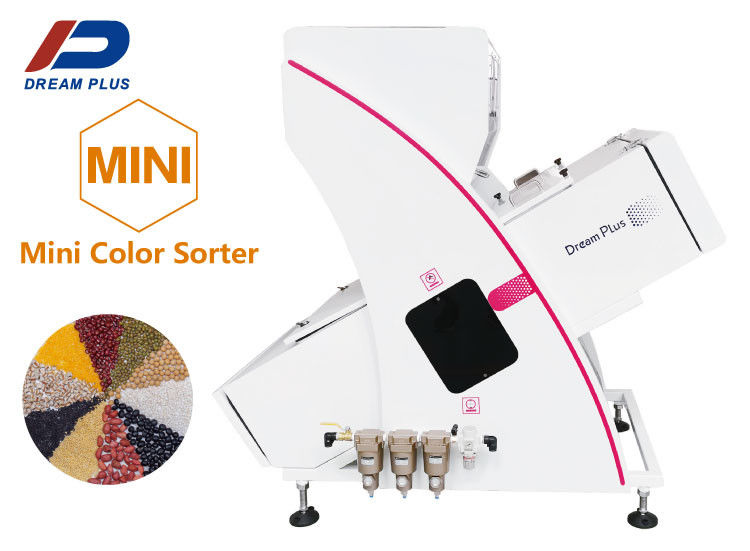

Dessicated Cocount,Coconut Flakes Mini Color Sorter Machine
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-64J | Chutes: | 1 |
|---|---|---|---|
| Channel: | 64 | Capacity(t/h): | 0.9-1.5 |
| Voltage(v/hz): | 220/50 | Power(kg): | ≤1.5 |
| High Light: | Coconut Dsiccate Portal Mini Color Sorter,Mini Color Sorter 64Channel,Color Sorter Machine High Fidelity Identifying |
||
Product Description
Dessicated Coconut Mini Color Sorter for Phillipine Market
1. Coconut Color Sorter Machine Working Principle
The selected material enters the machine from the hopper at the top, passes through the vibration of the vibrator device, slides down the channel, accelerates its descent into the observation area of the sorting room, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the system generates output signals to drive the solenoid valve to blow out the different color particles into the waste material cavity of the receiving hopper, and the good selected material continue to fall into the finished product cavity of the receiving hopper, so as to achieve the purpose of selection.
Technical Parameter
| Model | 6SXM-64J1 |
| Output(T/h) | 0.9~1.5 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤1.5 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 350(±5%) |
| Diamension(mm) | 955*1630*1550 |
Technical Details
1. High-precision 5400 pixel high-speed line scan CCD, high-fidelity identifyinh and high speed sorting.
2. Multifunctional and intelligent software operation platform; flexible sorting modes setting available for different raw material at user's disposal; automatic memory function for the set mode;simple and easy to operate.
3. High-brightness and long-service-life LED light, durable and stable; better color sorting effect.
4. Processing system based on the frontier CCD technology; goof sorting of light yellow, tiny rice macula, neeble spots; and good stimultaneously sorting of yellow and milky grain.
5. Accurately identify the discolor area within 0.0025 mm2; set the inspection area according to different requirements of different material sorting precisions.
