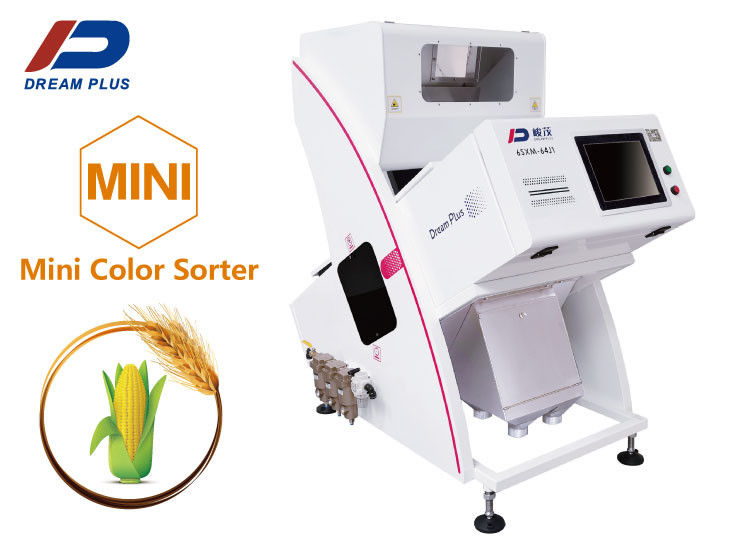

OEM Mini Grain Color Sorter Machine For Wheat Oats Barley Maize Sorting
Product Details:
| Place of Origin: | Hefei,China |
| Brand Name: | Dream Plus |
| Model Number: | JM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden Package |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | T/T, L/C |
|
Detail Information |
|||
| Model: | 6SXM-64J1 | Chute: | 1 |
|---|---|---|---|
| Channel: | 64 | Capcity(t/h): | 0.5-1 |
| Carryover(bad:good): | 12.5:1 | Voltage(v/hz): | 220/50 |
| Power(kw): | ≤1.5 | Weight(kg): | 350 |
| Dimension(mm): | 955*1630*1550 | Warranty: | 1 Year |
| Highlight: | OEM Grain Color Sorter Machine,350kg Grain Color Sorter Machine,OEM Mini Color Sorter |
||
Product Description
Mini Grain Color Sorter Sorting Wheat Oats,Barley,Maize
Our Advantages
1)Designed and manufactured by a major Chinese color sorter company,our engineers have many years experiences in color sorter industry
2)Famous of high accuracy and persistence
3)Our main components are from world renowned brands
4)OEM is available for all of our machines
5)Engineers available to provide installation and aftersale service in all countries.
Technical Specification:
| Model | 6SXM-64J1 |
| Output(T/h) | 0.5~1.0 |
| Carryover Rate(Bad:Good) | >10:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤1.5 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 350(±5%) |
| Diamension(mm) | 955*1630*1550 |
Technical Features
1. High reliability Our rice color sorter is equipped with cooling system for longer service life and higher stability. Reliable mechanical structure design, simple and effective electrical and optical system, and optimized system structure greatly improve the reliability of the machine.
2. Advanced image acquisition and processing system Our rice colour sorter uses high speed linear array CCD image sensor (5400 pixels) and high accuracy lens to realize image acquisition, which can detect 0.0025mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.
3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.
4. High quality ejector.Our rice color sorter employs imported ejector for accurate, effective material rejection and long service life.
5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.
6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease of operation.
