• High Precision Ore Color Sorter 220V 50HZ Quartz Sand Stone Sorting
High Precision Ore Color Sorter 220V 50HZ Quartz Sand Stone Sorting

High Precision Ore Color Sorter 220V 50HZ Quartz Sand Stone Sorting

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: 6SXM-512JM8

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood Packaging
Delivery Time: 7-15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-512JM8 Channel: 512
Voltage(V): AC220V/50Hz Power(Kw): ≤4.6
Weight(Kg): 1800(±5%) Dimension(L*W*H Mm): 3280×1630×2030
High Light:

High Precision Ore Color Sorter

,

Ore Color Sorter 220V

,

Ore Color Sorter 50HZ

Product Description

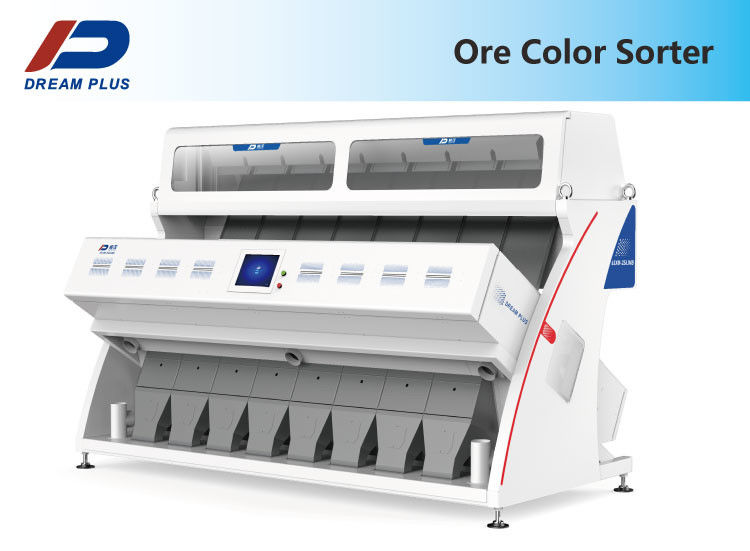

High Precision Ore Color Sorting Machine / Color Quartz Sand Stone Sorter


Product Overview

Dreamplus Ore Color Sorter, as an intelligent machine, can separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest. .According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work, ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber. Dreamplus ore color sorter always provides customers withintelligent,professional and comprehensive sorting solutions.



High Precision Ore Color Sorter 220V 50HZ Quartz Sand Stone Sorting 0High Precision Ore Color Sorter 220V 50HZ Quartz Sand Stone Sorting 1


Technical Features
1. Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30%compared with other competitors.

2. Firstly applied Windows 7 operating system in color sorter industrycan beupgraded to Windows 8 and Windows 10 according to different application.
3. New generation of one million logic processing units from ALTERA, quicker.

4. The perfect matching of LED and precise optics equipped with powerful fan,brighter and more consistent illumination.

5. Optimzed anodized chutes,long-lasting and more smooth for the falling of materials.

6. Direct feeding design,improving the processing capacity Optimized outlet structure to prevent the possible issue of materials jamming.



Technical Parameter

Model 6SXM-512JM8
Output(T/h) 0.9~1.5
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤4.6
Pressure(Mpa) 0.4-0.6
Weight(Kg) 1800(±5%)
Diamension(mm) 3280*1630*2030


Our Service
1. Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

2. After Sale Service
7*24 hours
24 hours door to door fast response,7*24hour on-line service.

●​ On-time arrival
Arrive the customer site on the appointed time.

●​ Comprehensive maintenance
Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.

●​ Professional training
Supply fully description of operation and maintenance of color sorter to help you understand the routine maintenance and simple troubles hooting.

●​ Site cleaning
Clean up machine and service area after trouble shooting.

●​ Strict acceptance
Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.
