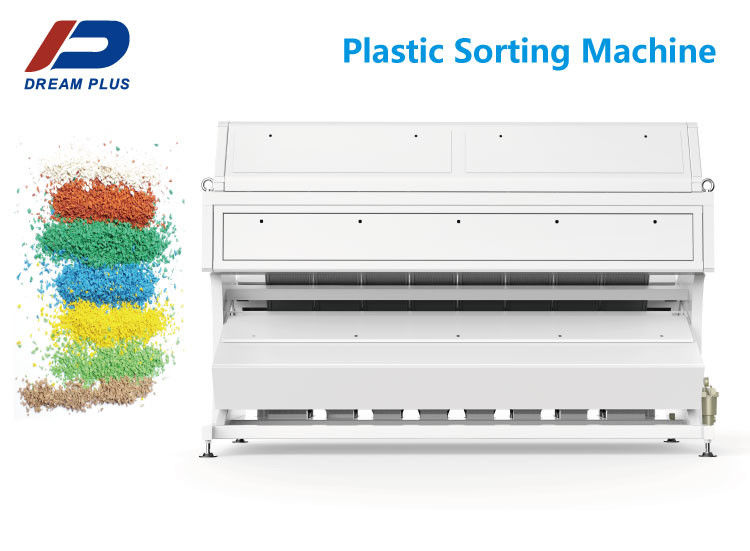

2-3T/H HDPE,PET Flakes Color Sorter With Self-Debugging System
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | 6SXM-512JM8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood Packaging |
| Delivery Time: | 7-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-512JM8 | Channel: | 512 |
|---|---|---|---|
| Voltage(V): | AC220V/50Hz | Power(Kw): | ≤4.6 |
| Weight(Kg): | 1800(±5％) | Dimension(L*W*H Mm): | 3280×1630×2030 |
| High Light: | 512 Channel Plastic Sorting Equipment,Plastic Sorting Equipment Digital Stepless Dimming,DREAM PLUS Plastic Sorting Machine |
||
Product Description
Waste Plastic Color Sorter Pellets Electrostatic Color Sorting Machine
ABOUT US
The company has a research and development team with many years of experiences engaged in photoelectric recognition research, with rich practical experiences and strong research and development capabilities. Has now developed into a large-scale domestic manufacturer of intelligent sorting and testing equipment with a rich product range and multiple sorting applications.
In the field of intelligent sorting, the company not only has professional laboratories, production and testing equipment and a complete intelligent sorting and testing product line, but also can provide personalized product customization services according to the actual needs of customers, providing customers with a full range of intelligent sorting solutions.
Features
1. High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
2. Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
3. Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
4. Digital stepless dimming, automatically matching brightness according to material change.
5. High frequency low consumption valve, flexible contact,wear-resistant super alloy material, life-long matching use.
6. Automatic acquisition of temperature, humidity, air pressure,differential pressure and other related working environment,parameters to achieve monitoring and early warning.
7. Firstly applied Windows 7 operating system in color sorter industrycan beupgraded to Windows 8 and Windows 10 according to different application.
8. Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30%compared with other competitors.
Technical Parameter
| Model | 6SXM-512JM8 |
| Output(T/h) | 4.0~5.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤4.6 |
| Pressure(Mpa) | 0.4-0.6 |
| Weight(Kg) | 1800(±5%) |
| Diamension(mm) | 3280*1630*2030 |
Sorting Material
Our Service
1. Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
2. After Sale Service
● 7*24 hours
24 hours door to door fast response,7*24hour on-line service.
● On-time arrival
Arrive the customer site on the appointed time.
● Comprehensive maintenance
Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.
● Professional training
Supply fully description of operation and maintenance of color sorter to help you understand the routine maintenance and simple troubles hooting.
● Site cleaning
Clean up machine and service area after trouble shooting.
● Strict acceptance
Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.
