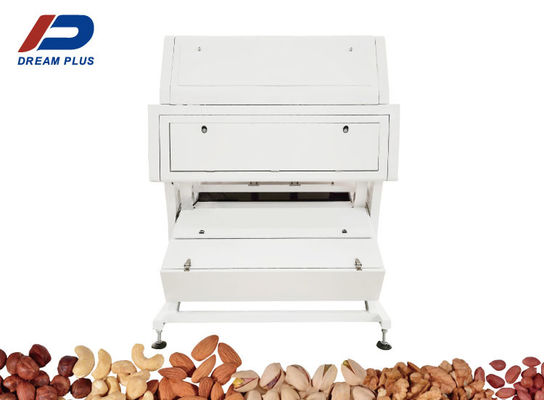

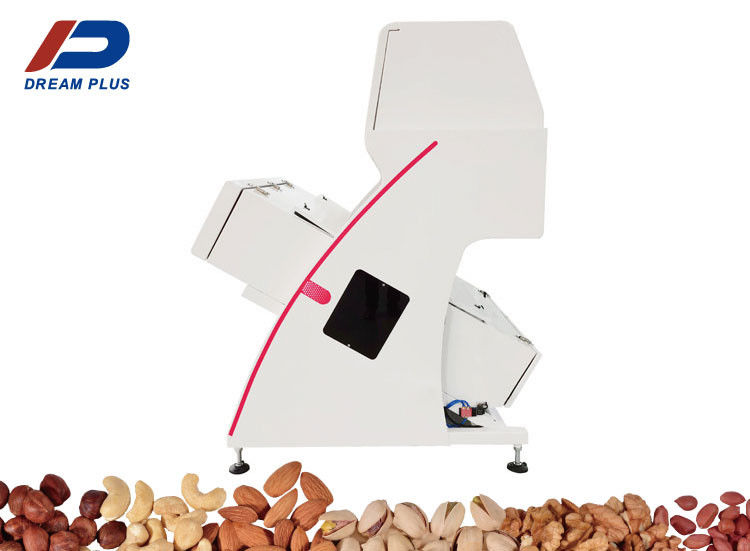

2Kw Nuts Color Sorter Hazelnut Sorting Machine 600-1200kg/h
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | 6SXM-192JM3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wood Packaging |
| Delivery Time: | 7-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Capacity: | 600-1200 Kg /h | Accuracy: | 99.9% |
|---|---|---|---|
| Weight: | 900 Kg | Voltage: | AC220V, 50Hz |
| Dimension: | 1530*1620*2040 Mm | Power: | 2 Kw |
| Highlight: | 2Kw Nuts Color Sorter,Hazelnut Sorting Machine 1200kg/H,SGS Nuts Color Sorter |
||
Product Description
Hazelnut Color Sorter Hazelnut Sorting Machine Hazelnut Color Sorting Machine
Product Parameters
| Model | Capacity(T/h) | Power(Kw) | Voltage | Weight(Kgs) | Dimension(mm) |
|---|---|---|---|---|---|
| 6SXM-64J1 | 0.3-0.5 | 1.5 | AC220V/50Hz | 350 | 955*1630*1550 |
| 6SXM-80J1 | 0.3-0.6 | 1.65 | AC220V/50Hz | 500 | 1045*1630*1550 |
| 6SXM-96JM1 | 0.4-0.8 | 1.7 | AC220V/50Hz | 500 | 1045*1630*1550 |
| 6SXM-160JM2 | 0.5-1.0 | 1.8 | AC220V/50Hz | 600 | 1330*1630*1550 |
| 6SXM-192JM3 | 0.6-1.2 | 2.0 | AC220V/50Hz | 900 | 1530*1620*2040 |
| 6SXM-256JM4 | 0.8-1.5 | 2.6 | AC220V/50Hz | 1200 | 1800*1620*2040 |
| 6SXM-320JM5 | 1.0-2.0 | 3.0 | AC220V/50Hz | 1350 | 2190*1620*2040 |
| 6SXM-384JM6 | 2.0-3.0 | 3.6 | AC220V/50Hz | 1500 | 2528*1620*2040 |
| 6SXM-448JM7 | 3.0-4.0 | 4.0 | AC220V/50Hz | 1750 | 2765*1620*2040 |
| 6SXM-512JM8 | 4.0-5.0 | 4.6 | AC220V/50Hz | 1800 | 3152*1620*2040 |
| 6SXM-640JM10 | 5.0-6.0 | 5.5 | AC220V/50Hz | 2200 | 3910*1620*2040 |
Sorting Material
Features
Micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency solenoid valve
High frequency low consumption valve, flexible contact,wear-resistant super alloy material, life-long matching use.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,differential pressure and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industrycan beupgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30%compared with other competitors.
Service
1. Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
2. After Sale Service
● 7*24 hours
24 hours door to door fast response,7*24hour on-line service.
● On-time arrival
Arrive the customer site on the appointed time.
● Comprehensive maintenance
Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.
● Professional training
Supply fully description of operation and maintenance of color sorter to help you understand the routine maintenance and simple troubles hooting.
● Site cleaning
Clean up machine and service area after trouble shooting.
● Strict acceptance
Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.
Machine Working at Site
