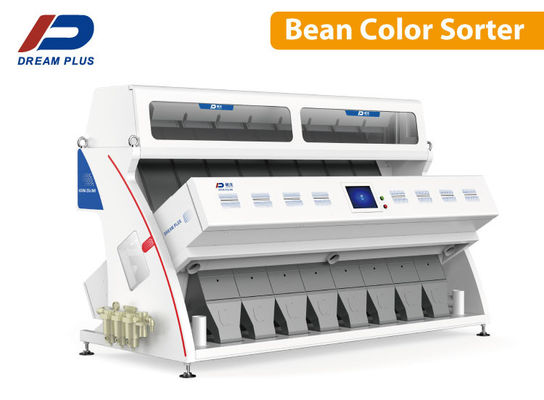

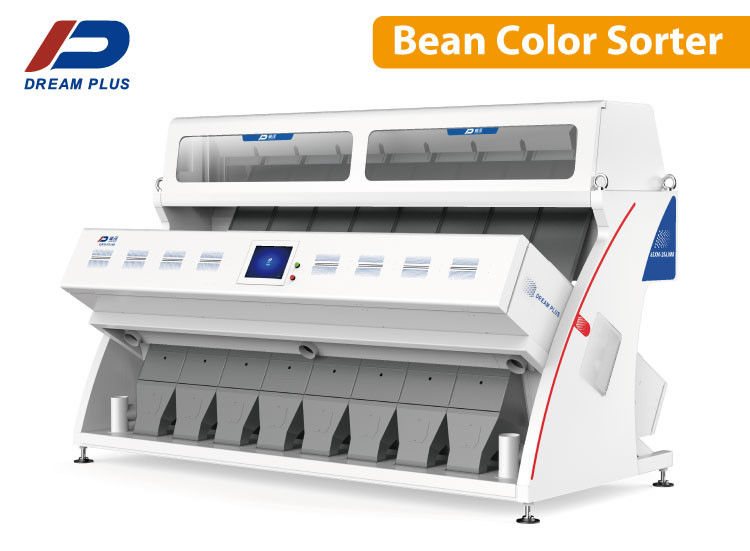

Green Mung Bean Color Sorter Optical Sorting Machine 5G Architecture

Green Mung Bean Color Sorter Optical Sorting Machine 5G Architecture

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM8

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-512JM1 Chute: 8
Channel: 512 Capacity(t/h): 6-8
Carryover(bad:good): 12.5:1 Voltage(v/hz): 220/50
Weight(kg): 1800 Dimension(mm): 3152*1620*2040
High Light:

Green Mung Bean Color Sorter

,

Bean Color Sorter 5G Architecture

,

Optical Sorting Machine 5G Architecture

Product Description

Green Mung Bean Optical Sorting Machine,Large Capacity



ABOUT US



Hefei Dream Plus Co., Ltd. is a high-tech enterprise specializing in the research and development, production, sales and technical services of agricultural, industrial intelligent sorting and pets medical equipment. Located in Hefei High-tech Development Zone, it has a modern standardized production workshop of 15,000 square meters and a registered capital of 50 million yuan.



The company has a research and development team with many years of experiences engaged in photoelectric recognition research, with rich practical experiences and strong research and development capabilities. Has now developed into a large-scale domestic manufacturer of intelligent sorting and testing equipment with a rich product range and multiple sorting applications



In the field of intelligent sorting, the company not only has professional laboratories, production and testing equipment and a complete intelligent sorting and testing product line, but also can provide personalized product customization services according to the actual needs of customerss, providing customers with a full range of intelligent sorting solutions.



The company’s main product is AI intelligent color sorter, X-ray machine, pets medical CT, etc., have been recognized by customers with excellent quality and high-quality service, and have established a global marketing network. In the future, Dream Plus will continue to develop the core technology of photoelectric recognition system and strive to become a high-tech service company in the field of intelligent sorting.

Green Mung Bean Color Sorter Optical Sorting Machine 5G Architecture 0

Technical Parameter

Model 6SXM-512JM8
Output(T/h) 6~8
Carryover Rate(Bad:Good) >12.5:1
Sorting Accuracy(%) ≥99.99
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤4.6
Pressure(Mpa) 0.5-0.8
Weight(Kg) 1800(±5%)
Diamension(mm) 3152*1620*2040



Sorting Images

Green Mung Bean Color Sorter Optical Sorting Machine 5G Architecture 1

Technical Features



1. High reliability Our rice color sorter is equipped with cooling system for longer service life and higher stability. Reliable mechanical structure design, simple and effective electrical and optical system, and optimized system structure greatly improve the reliability of the machine.



2. Advanced image acquisition and processing system Our rice colour sorter uses high speed linear array CCD image sensor (2048 pixels) and high accuracy lens to realize image acquisition, which can detect 0.04mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.



3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.



4. High quality ejector.Our rice color sorter employs imported ejector for accurate, effective material rejection and long service life.



5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.



6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease of operation.



7. High flexibility, wide range of application Our color sorter is suitable for color sorting of different rice. Various optimal working modes are available for different rice.
