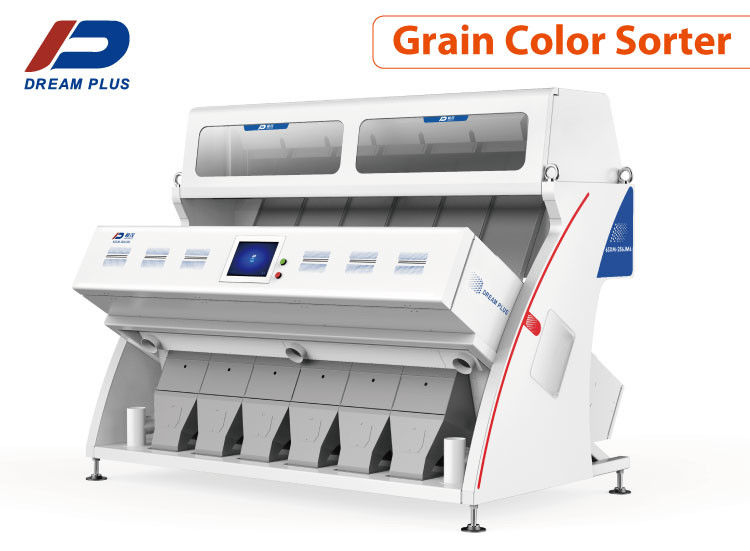

6 Chutes Grain Color Sorter RGB Color Separator Machine With High Frequency Ejector
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-384JM6 | Chutes: | 6 |
|---|---|---|---|
| Channel: | 384 | Primary Sorting:Second Sorting: | 4:2 |
| Camera Resolution: | 5400 Pixels | Power(kg): | ≤3.6 |
| Voltage(v/hz): | 220/50 | Weight(kg): | 1500 |
| Dimension(mm): | 2528*1620*2040 | ||
| Highlight: | 6 Chutes Grain Color Sorter,RGB Color Separator Machine,Grain Color Sorter High Frequency Ejector |
||
Product Description
6 Chutes RGB Color Sorter With High Frequency Ejector
color sorter introduction
New Software Technology Grain Color Sorter Machine Can Sort Different Materials:Such As Rice, Peanuts Plastic,Beans,Quartz
Sand,Nuts,Wheat,Barley,Chickpeas,Lentils,Corn,Coffee Beans,Soybeans,Buckwheat,And So On.
Its Work Principle Is According To Materials' Different Color To Separate Them To Different Groups,To Reach Improve The Materials Quality.
For Example:It Can Sort Moldy Corn Out,It Can Separate Red Plastic Particles From Mixed Colored Plastic Groups, Remove The Bad Rice ,EX.: Yellow Rice ,Black Rice .Etc.
Technical Parameter
| Model | 6SXM-384J6 |
| Output(T/h) | 2.0-3.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤3.8 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1500(±5%) |
| Diamension(mm) | 2528*1620*1550 |
Sorting Material
CCD color sorter machine in China
1. High-precision 5400 pixel high-speed line scan CCD, high-fidelity identifyinh and high speed sorting.
2. Multifunctional and intelligent software operation platform; flexible sorting modes setting available for different raw material at user's disposal; automatic memory function for the set mode;simple and easy to operate.
3. High-brightness and long-service-life LED light, durable and stable; better color sorting effect.
4. Processing system based on the frontier CCD technology; goof sorting of light yellow, tiny rice macula, neeble spots; and good stimultaneously sorting of yellow and milky grain.
5. Accurately identify the discolor area within 0.0025 mm2; set the inspection area according to different requirements of different material sorting precisions.
