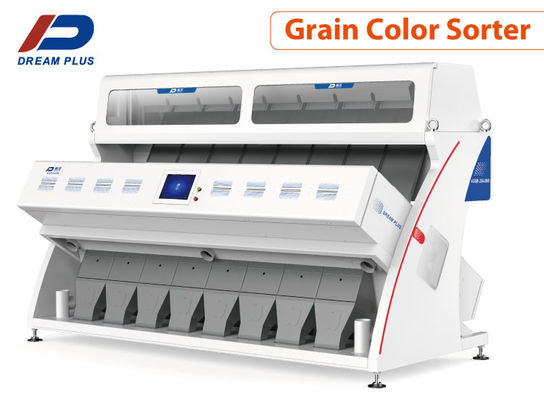

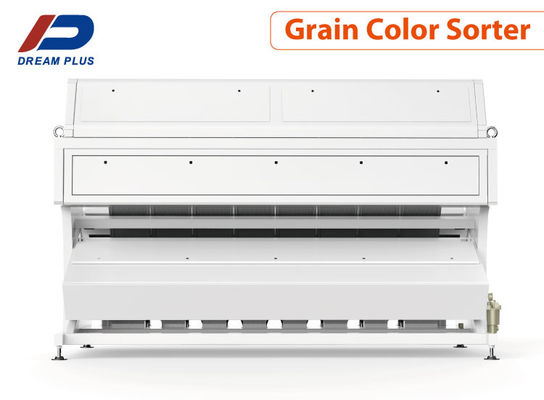

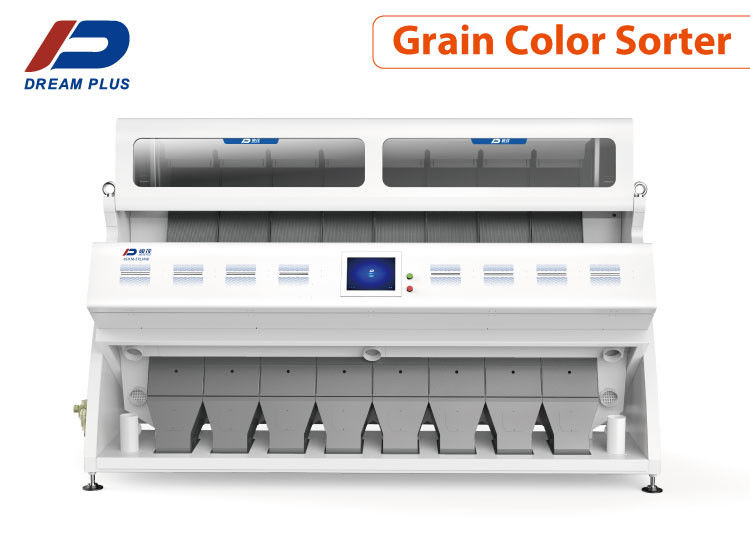

4.6kw Grain Color Sorter Sorting Quinoa With Large Capacity
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXZ-512JM8 | Chutes: | 8 |
|---|---|---|---|
| Channel: | 512 | Capacity(t/h): | 4.0-5.0 |
| Carryover(bad:good): | 12.5:1 | Voltage(v/hz): | 220/50 |
| Power(kw): | ≤4.6 | Weight(kg): | 1800 |
| Dimension(mm): | 3152*1620*2040 | ||
| Highlight: | 4.6kw Grain Color Sorter,Quinoa Grain Color Sorter,1800kg large color sorter |
||
Product Description
Quinoa grain CCD Color Sorter machine , quinoa processing machine
We are one of manufacturers of CCD color sorter in China. For the factories who are handling with various beans(soybean, mung bean, coffee bean, cocoa bean, etc.),Seeds(sunflower, pumpkin, melon’s seeds, etc)grains, rice(white, brown, etc.), nuts, kernels,peanuts, sesame, raisin, cashew nuts, corn, wheat, sugar, salt, tobacco leaf, lentil, etc,our color CCD color sorter can help reject flaw from the material, and classify these materialwith high efficiency and high accuracy, the machine's operation is very easy.
Technical Parameter
| Model | 6SXM-512JM8 |
| Output(T/h) | 4.0~5.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤4.6 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1800(±5%) |
| Diamension(mm) | 3152*1620*2040 |
Sorting Material
Technical Features
1. High reliability Our rice color sorter is equipped with cooling system for longer service life and higher stability. Reliable mechanical structure design, simple and effective electrical and optical system, and optimized system structure greatly improve the reliability of the machine.
2. Advanced image acquisition and processing system Our rice colour sorter uses high speed linear array CCD image sensor (5400 pixels) and high accuracy lens to realize image acquisition, which can detect 0.0025mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.
3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.
4. High quality ejector.Our rice color sorter employs imported ejector for accurate, effective material rejection and long service life.
5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.
6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease of operation.
7. High flexibility, wide range of application Our color sorter is suitable for color sorting of different rice. Various optimal working modes are available for different rice.
