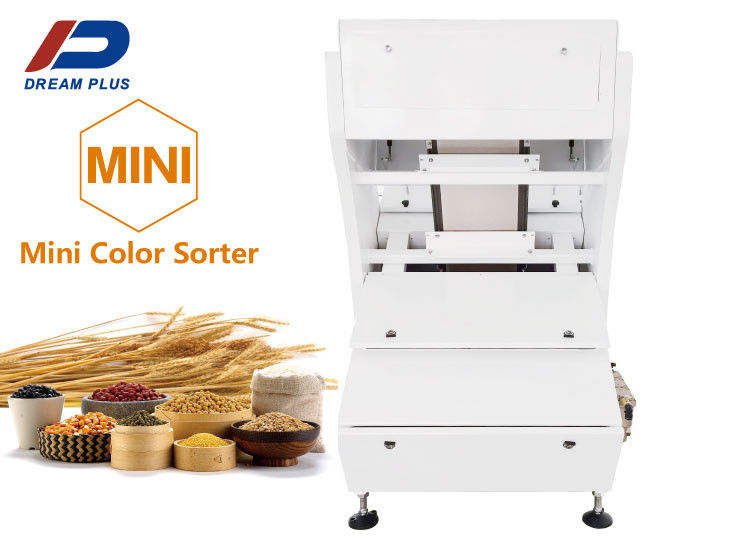

Mini Maize Wheat Color Sorter Machine Multifunction 1 Chute Sorting
Product Details:
| Place of Origin: | Hefei,China |
| Brand Name: | Dream Plus |
| Model Number: | JM1 |
Payment & Shipping Terms:
| Packaging Details: | Wooden Package |
|---|---|
| Delivery Time: | 15-20 Working Days |
|
Detail Information |
|||
| Model: | 6SXM-64J1 | Chute: | 1 |
|---|---|---|---|
| Channel: | 64 | Capacity(t/h): | 0.5-1.0 |
| Carryover(bad:good): | 12.5:1 | Voltage(v/hz): | 220/50 |
| Power(kg): | ≤1.5 | Weight(kg): | 350 |
| Dimension(mm): | 955*1630*1550 | ||
| High Light: | Maize Wheat Color Sorter,Multifunction Wheat Color Sorter,Multifunction wheat machine |
||
Product Description
Mini Color Sorter,1 Chute Sorting Maize,Wheat,Sugar Beans,Mung Beans
Color sorters are mostly used in sorting grain (agricultural products). The rice sorting industry is the first big market. The rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate stones, black rice, etc. It is the final step after polishing rice with a rice polisher. The second sorting market is in use for coarse cereals, such as wheat, corn, peanut, different kinds of beans, sesame seeds, etc. This can also include grains, seeds, cereals, pulses, coffee, and nuts. The color sorters also can be used to remove harmful plastics and metals.
Optical Color Sorters are among the newest technology in seed and grain processing. This equipment separates particles based on color and is often found at or near the end of the processing line, after mechanical separations, to remove impurities of similar size and density.
Machines are available from a quarter to ten chutes wide. Technology range includes a simple monochromatic version, to bichromatic, NIR, InGaAs, RGB Full Color, and shape sizing.
Color sorting is necessary nowadays to ensure the best purity of bulk products, as well as ensuring that the strictest food hygiene and health requirements of end-products are met
Machine Specifications:
| Model | 6SXM-64J1 |
| Output(T/h) | 0.5~1.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤1.5 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 350(±5%) |
| Diamension(mm) | 955*1630*1550 |
Technical Features
1. High reliability Our rice color sorter is equipped with cooling system for longer service life and higher stability. Reliable mechanical structure design, simple and effective electrical and optical system, and optimized system structure greatly improve the reliability of the machine.
2. Advanced image acquisition and processing system Our rice colour sorter uses high speed linear array CCD image sensor (5400 pixels) and high accuracy lens to realize image acquisition, which can detect 0.0025mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.
3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.
4. High quality ejector.Our rice color sorter employs imported ejector for accurate, effective material rejection and long service life.
5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.
6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease of operation.
7. High flexibility, wide range of application Our color sorter is suitable for color sorting of different rice. Various optimal working modes are available for different rice.
