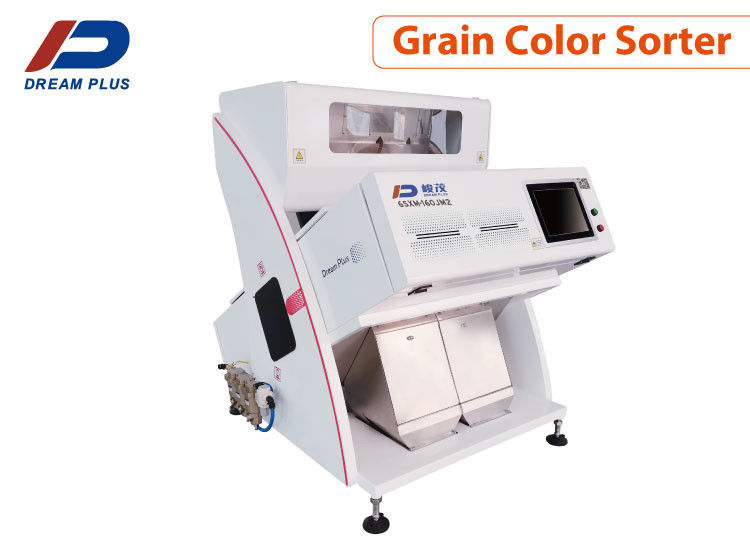

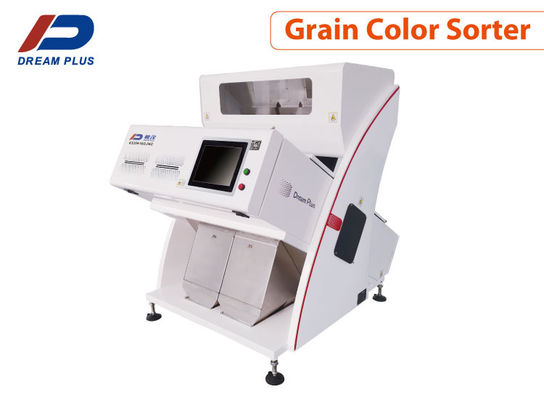

2 Chute CCD Grain Color Sorter
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 7-15 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-160JM2 | Chute: | 2 |
|---|---|---|---|
| Channel: | 160 | Warranty: | 1 Year |
| Capacity(t/h): | 0.5-1.0 | Carryover Rate(bad:good): | 12.5:1 |
| Power(kw): | ≤1.8 | Voltage(v/hz): | 220/50 |
| Weight(kg): | 600 | Dimension(mm): | 1330*1630*1550 |
| High Light: | CCD Grain Color Sorter,2Chute Grain Color Sorter,600kg Grain Color Sorter |
||
Product Description
2 Chute CCD Grain Color Sorter With High Frequency Ejector,RGB Background
Dream Plus CCD grain color sorter has excellent color sorting performance. They are always used for sorting different grains like rice and millet according to color difference.
- 5400 pixels CCD camera
- 64/160/192/256/320/384/448/512/640 channels
- High-brightness stable LED light source
- Advanced optical sorting chamber
- High-speed durable ejector
- High-speed video identification control algorithm
Technical Parameter
| Model | 6SXM-160JM2 |
| Output(T/h) | 0.5-1.0 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤1.8 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 600(±5%) |
| Diamension(mm) | 1330*1630*1550 |
Sorting Material
Technical Features
micron camera
High resolution ultra-low distortion micro camera imaging system,with electrodeless LED light source, brings unprecedented precision recognition.
Full core upgrade
Intel fifth generation FPGA has the advantages of faster processing speed, lower power consumption and more stable system operation.
5G Architecture
Reserved 5g interface, AR / VR coordination, high bandwidth,low delay, wide connection.
Intelligent dimming
Digital stepless dimming, automatically matching brightness according to material change.
Intelligent magnetic control high frequency ejector
High frequency low air consumption ejector, flexible contact,wear-resistant super alloy material with long service time.
Human-computer interaction
Automatic acquisition of temperature, humidity, air pressure,pressure differences and other related working environment,parameters to achieve monitoring and early warning.
Intelligent operation system
Firstly applied Windows 7 operating system in color sorter industry can be upgraded to Windows 8 and Windows 10 according to different application.
High speed feeding system
Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased production by 20% ~ 30% compared with other competitors.
Our Service
1. Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
2. After Sale Service
● 7*24 hours
24 hours door to door fast response,7*24hour on-line service.
Arrive the customer site on the appointed time.
Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.
Supply fully description of operation and maintenance of color sorter to help you understand the routine maintenance and simple troubles hooting.
Clean up machine and service area after trouble shooting.
Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.
