CCD Seeds Color Sorter 4 Chute 99% Sorting Accuracy

CCD Seeds Color Sorter 4 Chute 99% Sorting Accuracy

Product Details:

Place of Origin: Anhui China
Brand Name: DREAM PLUS
Certification: CE、SGS、ISO9001
Model Number: JM4

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 15-20 Working Days
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Model: 6SXM-256JM4 Capacity(t/h): 2.0-3.0
Carryover(bad:good): 15:1 Chute: 4
Sorting Accuracy: 99% Voltage(v/hz): 220/50
Power(kw): ≤2.6 Weight(kg): 1200
Dimmension(mm): 1800*1620*2040 Warranty: 1 Year
Package: Wooden Case
High Light:

CCD Seeds Color Sorter


99% Accuracy Seeds Color Sorter


Seeds Color Sorter 4 Chute

Product Description

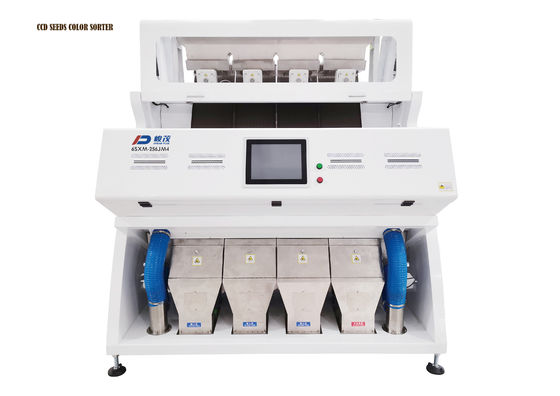

CCD Seeds Color Sorter

Basic situation of Seed Color Sorter

The Seed Color Sorter is based on differences in the optical properties of Seed. It uses photoelectric technology to scan the particles of the Seed and sort it automatically, so as to improve its quality and remove any defect or contamination.


1. Raw Material are put into the machine from its feeding hopper on the top.

2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .

3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.

4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.


CCD Seeds Color Sorter 4 Chute 99% Sorting Accuracy 0


Technical Parameter


Model 6SXM-256JM4
Output(T/h) 2-3
Carryover Rate(Bad:Good) >15:1
Sorting Accuracy(%) ≥99.9
Voltage (V/Hz) 220V 50HZ
Power Supply(Kw) ≤2.6
Pressure(Mpa) 0.5-0.8
Weight(Kg) 1200(±5%)
Diamension(mm) 1800*1620*2040


Company Advantage


1. Over many years experiences focus on color sorter. The one of a leading sorter machine factory in south China. We have the strength give better service and price to you.


2. Overseas Service Station: We have service station, cooperate reseller more than 40 countries. Wesort can meet your requirements on testing, installation and after sales service.


3. OEM/ODM is Supported: We have a strong R&G team(5 famous doctor engineers are included ). We can research and development suitable color sorter for you.


4. Quality Process Assurance: We pass ISO quality management system, each process of production are under strictly standard.

5. Shipping Guarantee: we have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.


6. After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)
