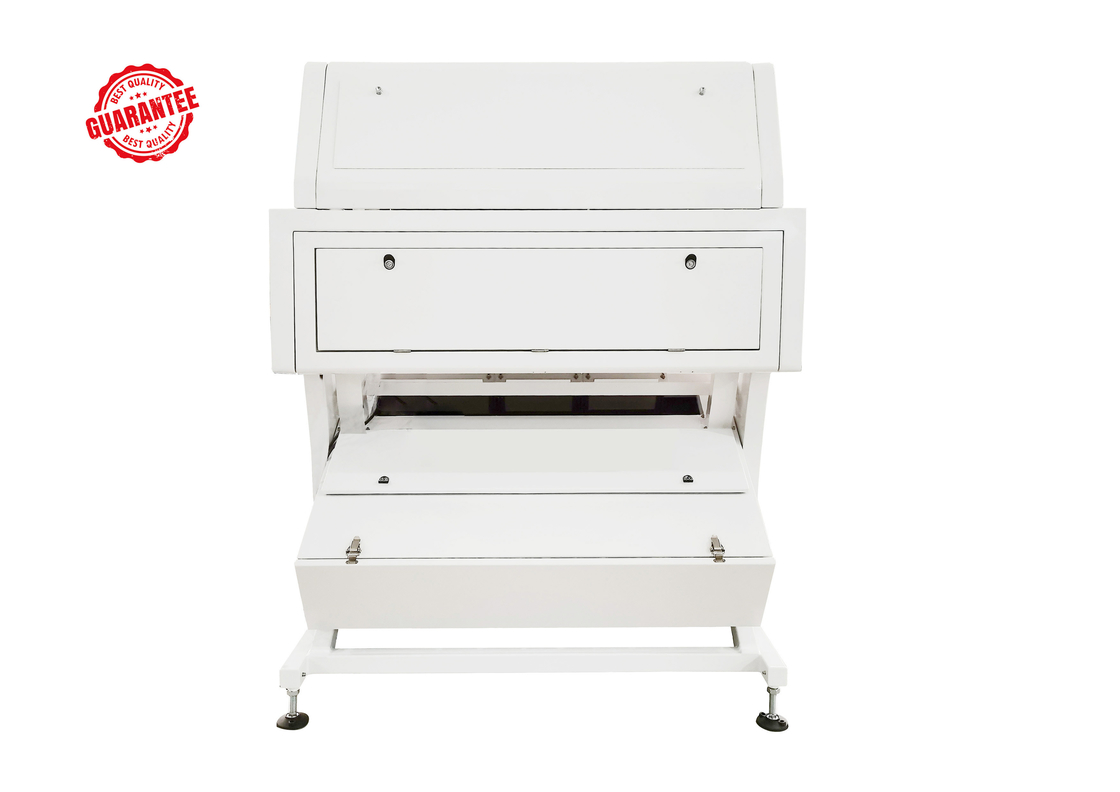

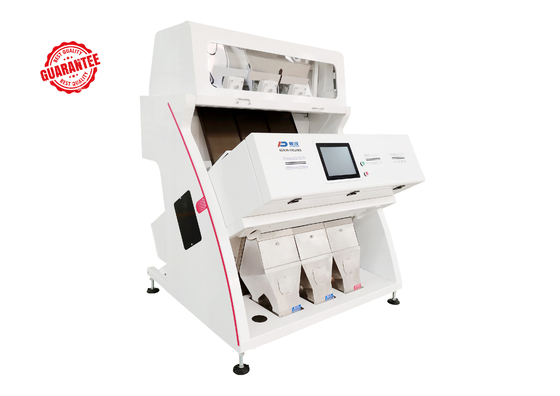

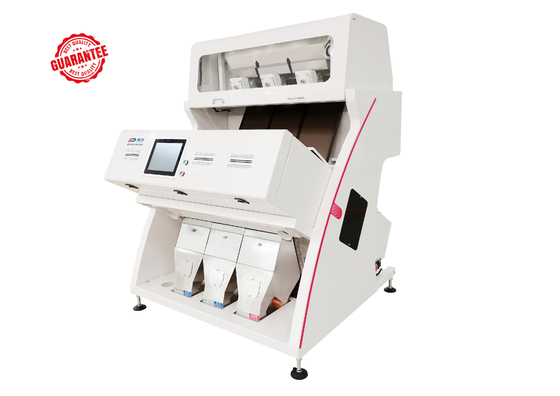

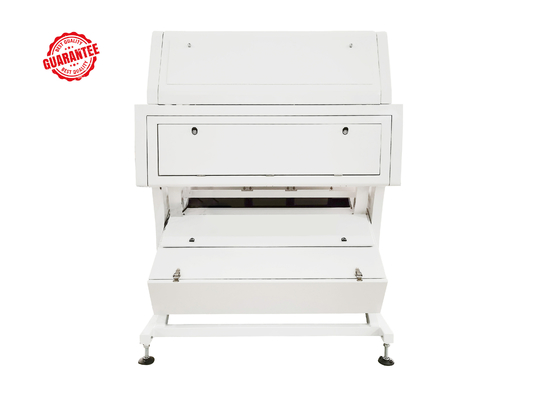

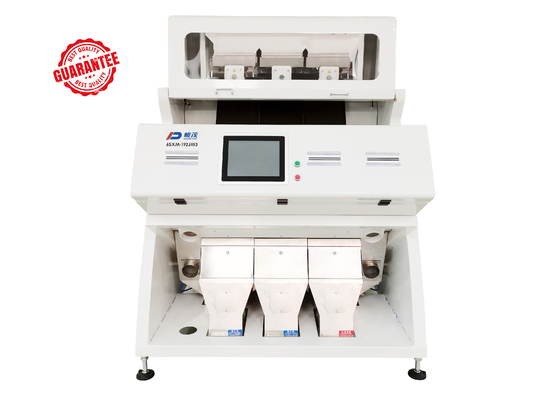

Trichromatic Seeds Color Sorter Multi Purpose 192 Channel
Product Details:
| Place of Origin: | Anhui China |
| Brand Name: | DREAM PLUS |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | JM3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Package |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Model: | 6SXM-192JM3 | Chute: | 3 |
|---|---|---|---|
| Primary Sorting:secondary Sorting: | 2:1 | Channel: | 192 |
| Capacity(t/h): | 0.6-1.2 | Sorting Accuracy: | 99% |
| Carry Over Rate(bad:good): | 10:1 | Weight(kg): | 900 |
| Dimmension(mm): | 1530*1620*2040 | Warranty: | 1 Year |
| Highlight: | Trichromatic Seeds Color Sorter,Seeds Color Sorter 192 Channel,Seeds Color Sorter 99% Accuracy |
||
Product Description
Trichromatic Seeds Color Sorter,Multi-Purpose Color Sorter
Seeds Color Sorter
Separate discolored, defective seeds from seed lab to large-scale operations with these compact, customizable, and cost-effective color sorters. These color sorters are designed for easy operation utilizing the latest software and full-color RGB cameras for highly accurate sorting by size and/or color for continuous or batch operation. View the products and services from seed equipment companies and request more information using the form below.
Technical Parameter
| Model | 6SXM-192JM3 |
| Output(T/h) | 0.6-1.2 |
| Carryover Rate(Bad:Good) | >10:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤2.0 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 900(±5%) |
| Diamension(mm) | 1530*1620*2040 |
Sorting Material
Technical Features
- Complete range of color sorters from laboratory to large scale 1,000 bph in a single unit.
- Tru color camera system with 0.02 mm resolution and shape recognition.
- Ability to mount up to four cameras per chute with color, NIR, or InGaAs combinations. Allowing multiple separation in one unit with reduced footprint and installation costs.
- Full start-up training and after sales support and service.
- Dream Plus offers in-house engineering and installation for all your facility needs.
