Coffee Bean Single Color Sorter With High Speed CCD

Coffee Bean Single Color Sorter With High Speed CCD

Product Details:

Place of Origin: China
Brand Name: Dream Plus
Certification: CE、SGS、ISO9001
Model Number: 64JM1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: WOOD
Delivery Time: 7-15 business days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Voltage(v):: AC220V/50Hz Power(Kw):: ≤1.5-5.5
Capacity:: 0.3~6.0T/h(±2%) Weight(Kg):: 350-2200(±5%)
Optimized Carryover:: ≥8:1 Modle: 64JM1
High Light:

Coffee Bean Single Color Sorter

,

High Speed CCD Bean Color Sorter

,

High Brightness Coffee Bean Sorter

Product Description

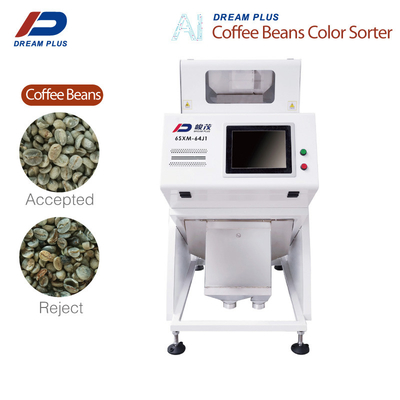

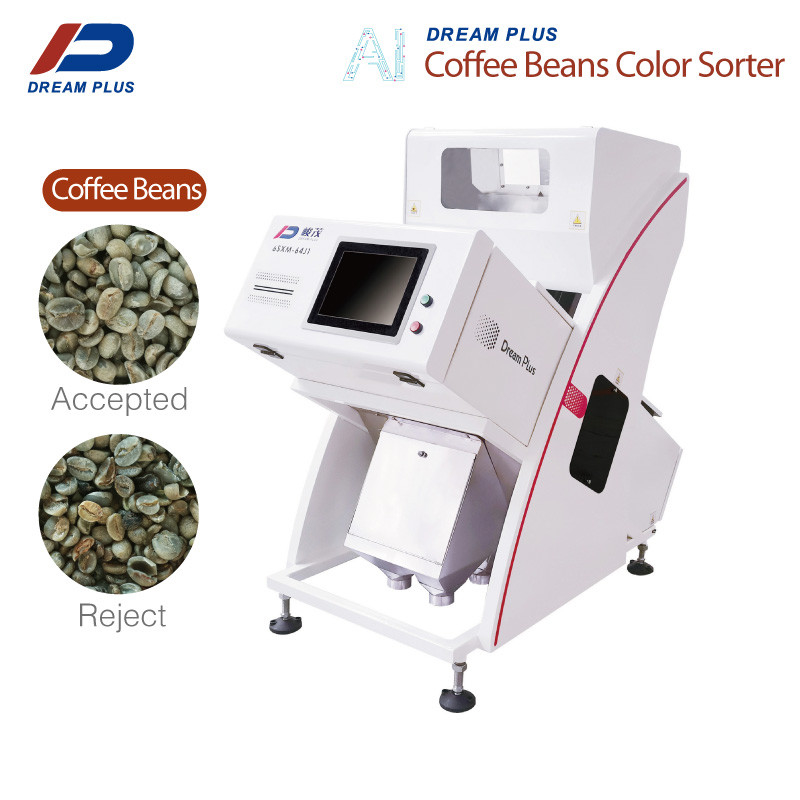

 Coffee Bean Single Color Sorter

         Coffee Beans Color Sorter



Product Parameters



Model Capacity(T/h) Power(Kw) Channel Weight(Kgs) Dimension(mm)
6SXM-64J1 0.3-0.5(±2%) ≤1.5 64 350 955*1630*1550
6SXM-80J1 0.3-2.0(±2%) 1.8 80 500 1045*1630*1550
6SXM-96JM1 0.4-0.8(±2%) ≤2.0 96 500 1045*1630*1550
6SXM-160JM2 0.5-1.0(±2%) ≤2.1 160 600 1330*1630*1550
6SXM-192JM3 0.6-1.2(±2%) 2.6 192 940 1700*1630*2030
6SXM-256JM4 0.8-1.5(±2%) 2.8 256 1300 2015*1630*2030
6SXM-320JM5 1.0-2.0(±2%) 3.0 320 1360 2330*1630*2030
6SXM-384JM6 2.0-3.0(±2%) 3.6 384 1420 2650*1630*2030
6SXM-448JM7 3.0-4.0(±2%) ≤4.0 448 1620 2980*1630*2030
6SXM-512JM8 4.0-5.0(±2%) ≤4.6 512 1800 3280*1630*2030
6SXM-640JM10 5.0-6.0(±2%) ≤5.5 640 2020 3900*1630*2030


































Coffee Bean Single Color Sorter With High Speed CCD 0Coffee Bean Single Color Sorter With High Speed CCD 1Coffee Bean Single Color Sorter With High Speed CCD 2



Power system



1. High-precision 5400 pixel high-speed line scan CCD, high-fidelity identifyinh and high speed sorting.
2. Multifunctional and intelligent software operation platform; flexible sorting modes setting available for different raw material at user's disposal; automatic memory function for the set mode;simple and easy to operate.
3. High-brightness and long-service-life LED light, durable and stable; better color sorting effect.
4. Processing system based on the frontier CCD technology.
5. Accurately identify the discolor area within 0.0025 mm2; set the inspection area according to different requirements of different material sorting precisions.


Customer service



1. A full range of customer consulting services before ordering and good after-sales service.

2. 7*24 hour on-line and door-to-door service.

3. 7-15 business day perparring and arrive on time.

4. Full miantenance and transparency.

5. Strict acceptance and the implementation of tracking service.
